2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 59 800.59.ROUSH
TPS

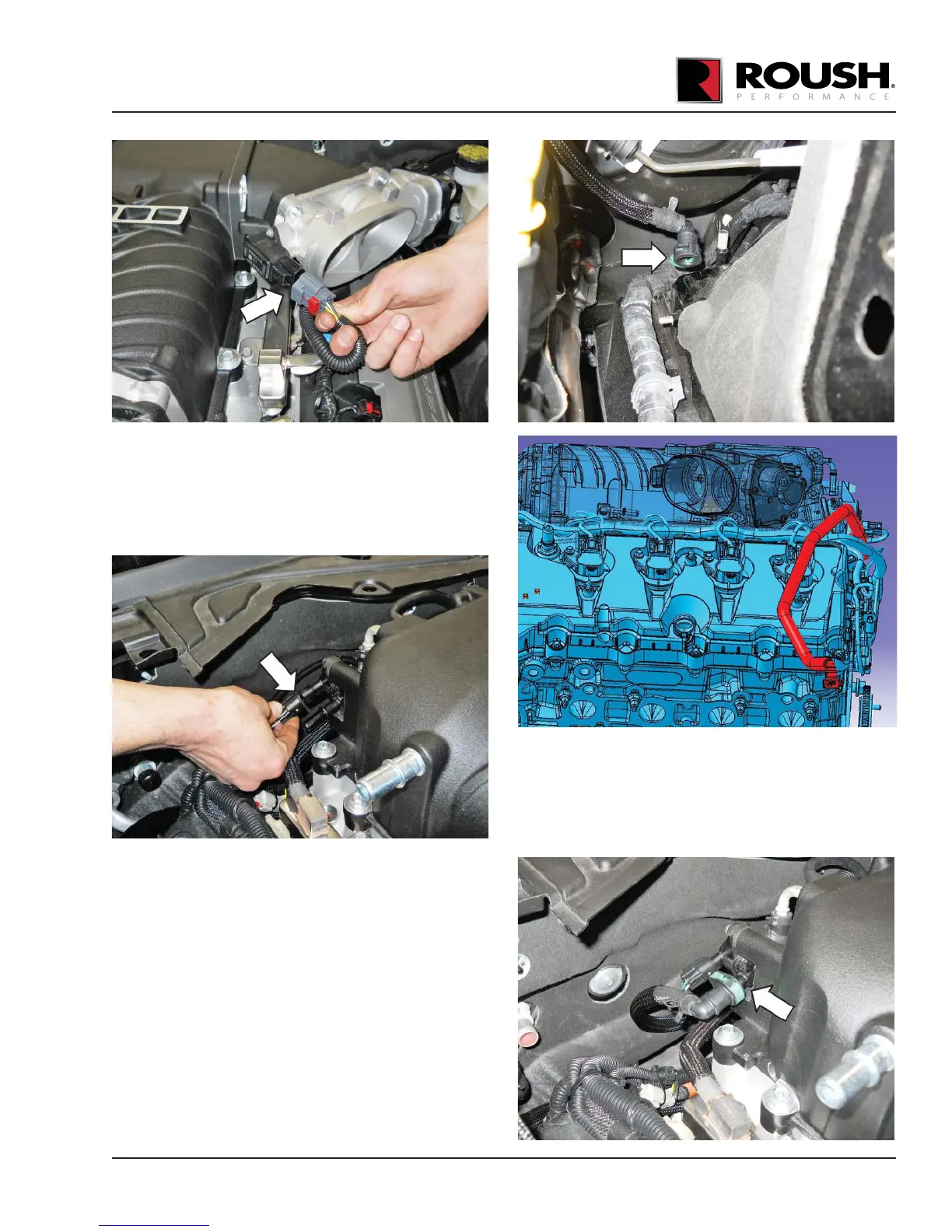

21. Plug the evaporative emission canister purge
valve extension harness (13119G866) electrical
connector into the relocated evaporative
emission canister purge valve on the back of the
supercharger.
22. Install the evaporative emission canister purge
valve line to the body line tube below the brake
booster. Route the rest of the line behind the
cylinder head to the RH rear of the supercharger.
23. Connect the new evaporative emission canister
purge valve line (1315-9G271), to the relocated
evaporative emission canister purge valve on the
back of the supercharger. Slide the green clip
to lock the connector. Make sure the hose is
routed away from any hot surfaces.
