2015-2017 5.0L Mustang Phase 1-2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 33 800.59.ROUSH

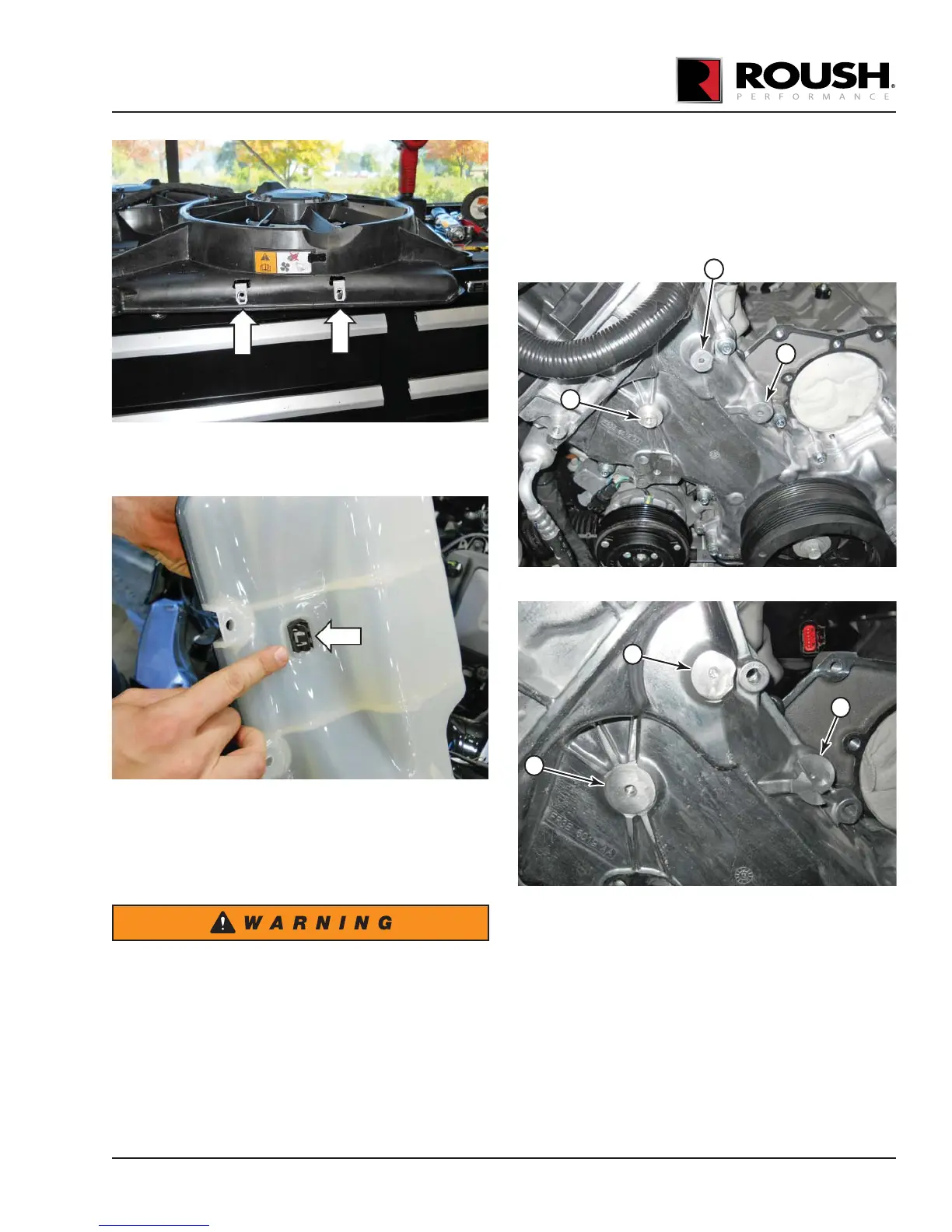

4. Insert the clip (20860) found in Hardware Kit H
(1315-TVSHKH) onto the tab on the bottom of the
intercooler degas bottle (1315-8D080).
5. Position the intercooler degas bottle to the fan
shroud and check the t, but do not install.
Remove additional material as required so the
bottle ts properly.
FRONT COVER MODIFICATION
Wear safe eye protection when grinding to prevent
serious personal injury.
1. If not already done so, clean the engine surfaces
with brake clean and dry with shop air.
2. Block off the grinding area to prevent debris and
metal shavings from spreading through the engine
compartment.
3. Using a grinder or cut-off wheel, modify the front
cover in the areas shown. The two (2) bosses
located at A and B need to be reduced in height
such that they are ush, or lower than the height
of the nearby rib structure. The boss located at C
needs to be reduced in height and cut in half.
A
B
C
Before
A
B
C
After
Surfaces A and B must be lower than or equal to the
adjacent rib height. Cut in half and remove material off
of boss C until ush.
Refer to the following closeup example views for
detail.
Crosshatched surfaces A and B must be lower than or
equal to this rib height.
To Next Page
