2015-2017 5.0L Mustang Phase 1-2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 41 800.59.ROUSH

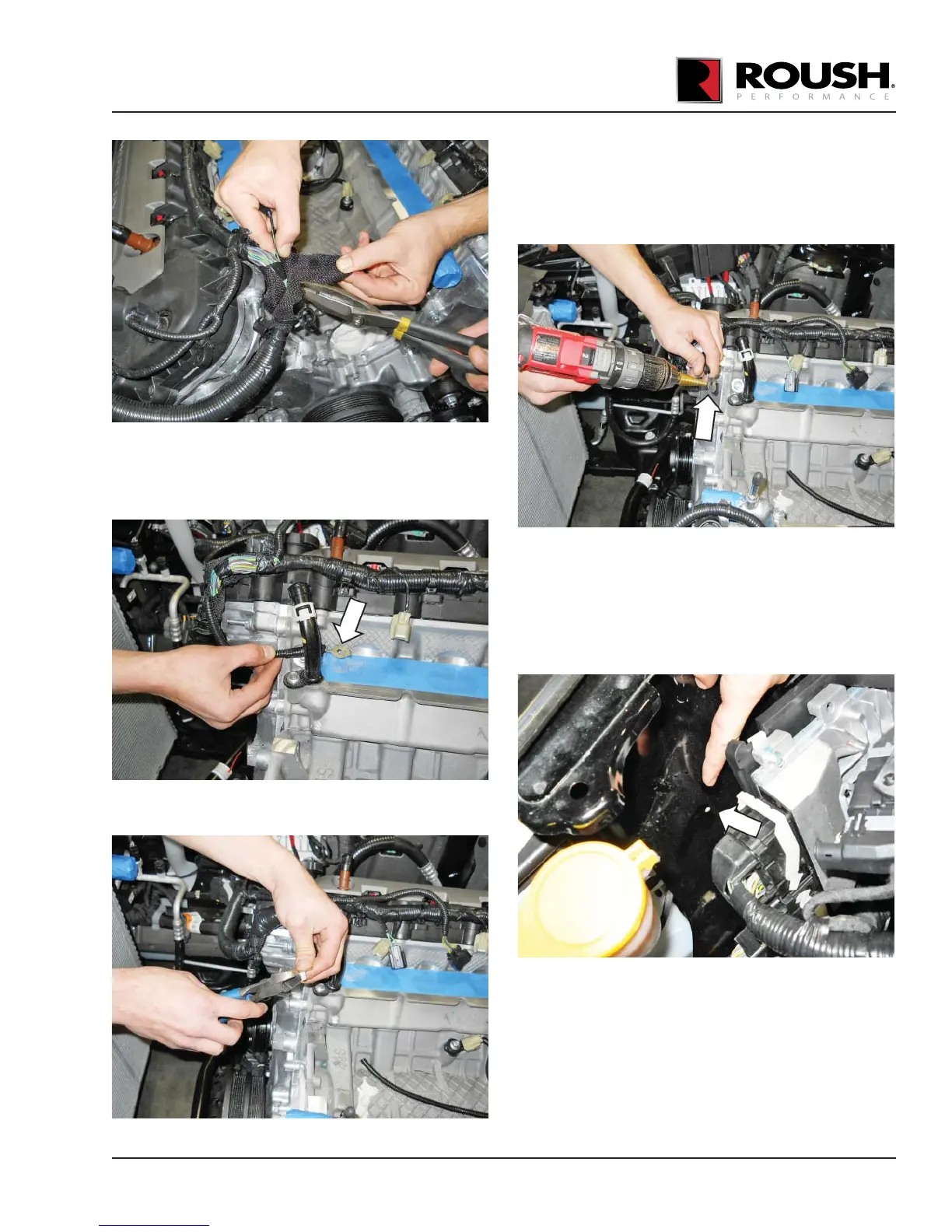

3. Separate the ground wire further back into the
harness. This will create slack necessary for
relocating the ground.
4. Rewrap the ground wire with electrical tape.
5. Use snips to cut off the bent metal tab on the end
of the ground tab.
6. Using a step bit, drill the hole on the tab to
enlarge the opening. The hole must be larger to
accommodate a larger bolt.
TIP: Hold the tab with pliers when drilling to keep the
tab stationary.
INTERCOOLER PUMP WIRING
2015-2016 Mustang
1. Lift up the fuse box by releasing the two (2)
retaining tabs and locate the hole underneath the
fuse box near the PCM. The intercooler pump
relay will be attached at this location.
2. Install the relay and fuse from the intercooler
pump wiring harness (1315-8W501) through
the hole and secure it with one (1) M6 x 14
bolt (N605771) and one (1) M6 nut (W520412).
These parts can be found in Hardware Kit E
(1315-TVSHKE).
To Next Page
