2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 42 800.59.ROUSH

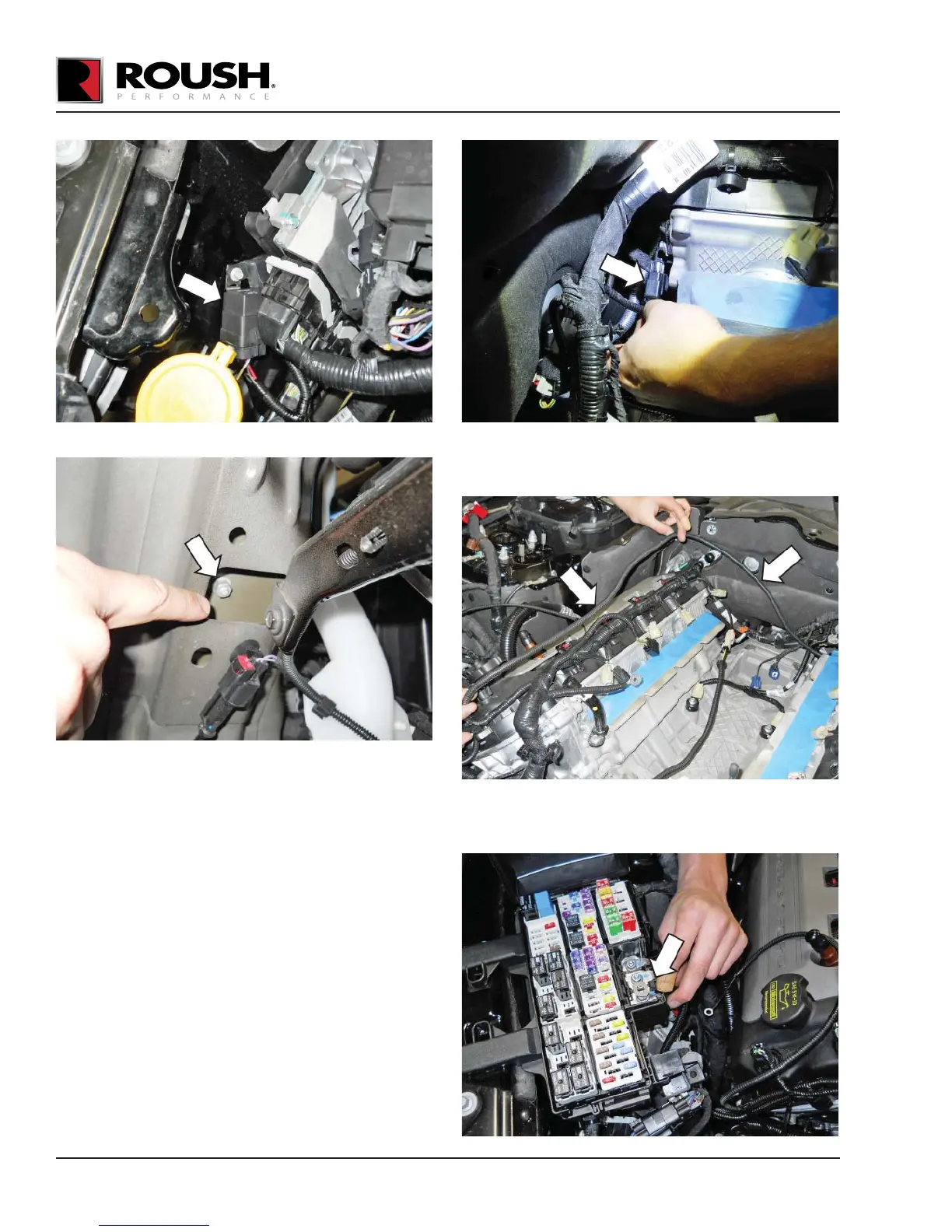

Relay bolt, front side
Relay mounting nut as viewed from inside the wheel well
opening
3. Lay the intercooler pump wire harness along the
engine harness, in back of the cylinder head to
the driver side inboard cylinder head. Disconnect
the radio capacitor and plug the intercooler pump
harness in line with this connector.
4. Route the intercooler pump wire harness in back
of the cylinder head along the RH engine harness
to the area near the fuse box.
5. Install the intercooler pump harness red power
wire to the rst post in the fuse box. Tighten the
nut to 10 Nm.
