ROUSH 422011 - Intercooler Pump, Mounting Bracket, and Hoses; Drill Mounting Holes for Bracket; Install Intercooler Pump into Bracket

2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 68 800.59.ROUSH
INTERCOOLER PUMP, MOUNTING
BRACKET AND HOSES

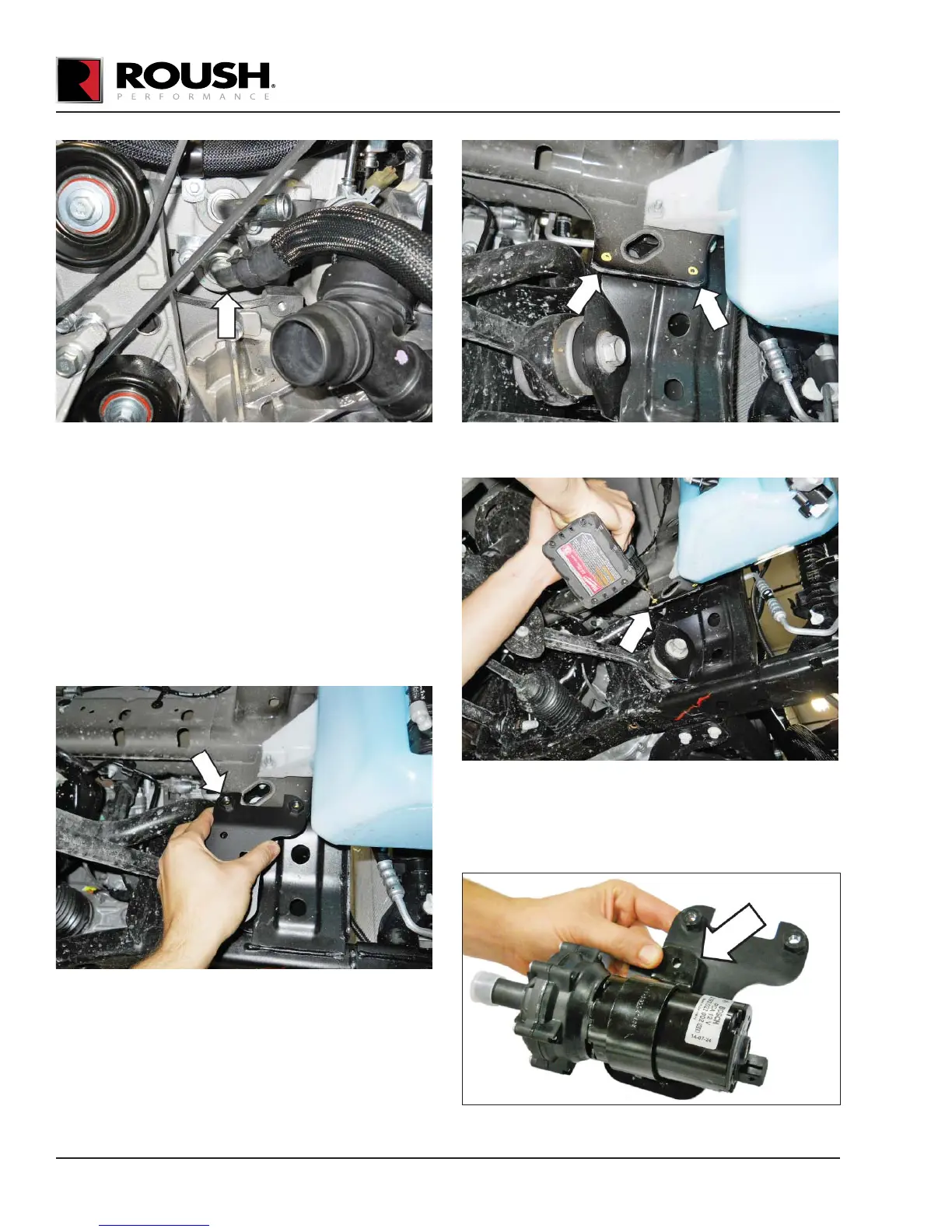

1. Using the intercooler pump bracket (1315-
8C4191) as a template, place the pump bracket
against the frame behind the wiper  uid reservoir
mounting bracket as shown. Mark the holes for
drilling and remove the intercooler pump bracket.
NOTE: The bracket is placed on the outside of the
frame behind the wiper pump reservoir bracket to
make it easy to drill the holes. When installed, the
intercooler pump and bracket will be mounted on the
INSIDE of this section of the frame.
2. Start by drilling two (2) pilot holes. Then, drill out
two (2) 3/8" holes.
3. Install the intercooler pump (F8YH-8501) into
the pump retainer (R07070065-4G) and onto the
intercooler pump bracket. Secure the pump and
retainer to the bracket using one (1) M6 x 16 bolt
(N605891). Torque the bolt to 10 Nm.
