2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 69 800.59.ROUSH

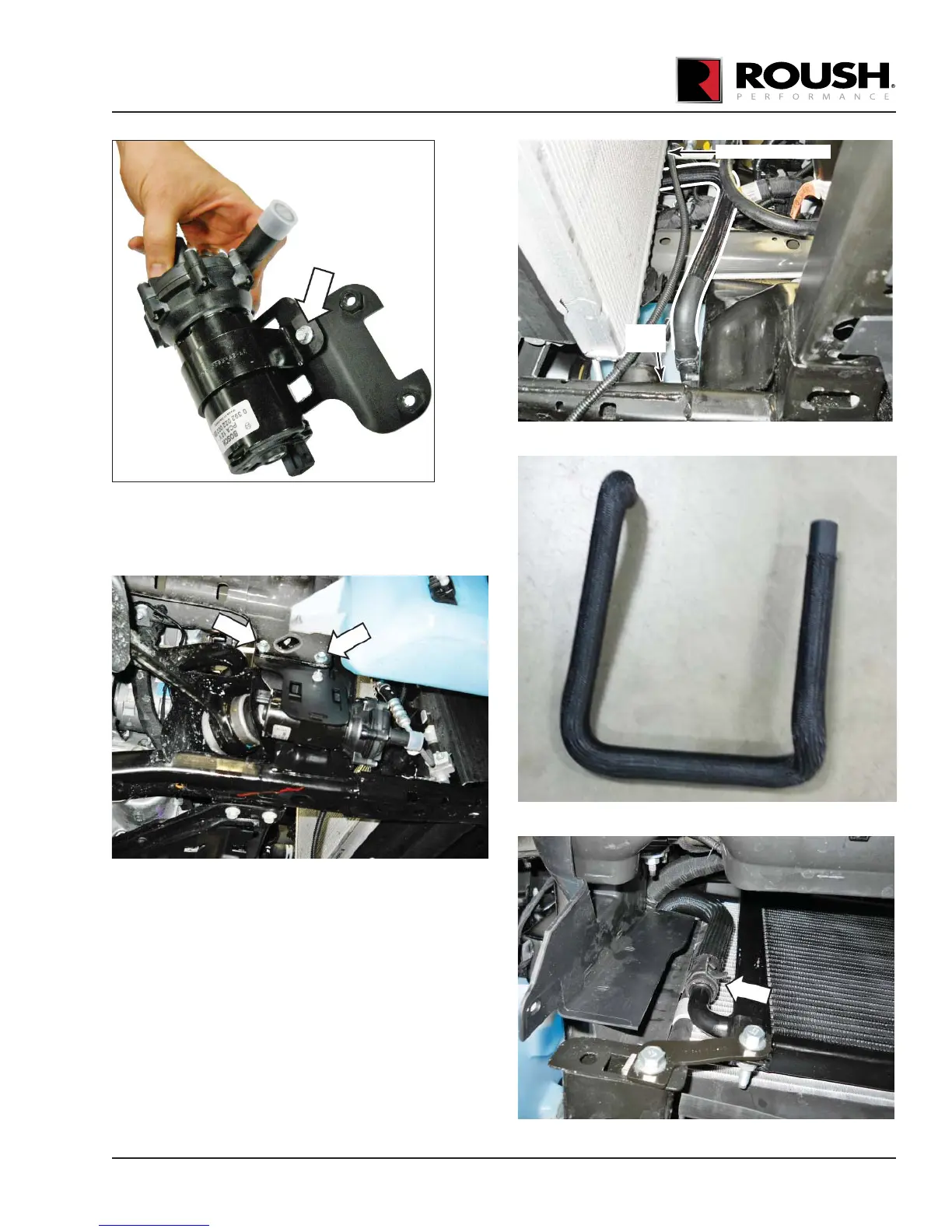

4. Place the intercooler pump assembly and bracket
in mounting position with the pump in-board to
the vehicle. Install two (2) bolts (W500224) (M8 x
25) into the weld nuts. Torque to 25 Nm.
5. Install the intercooler pump outlet hose (1315-
8K236) from the pump outlet, over the side of the
frame rail and to the inlet on the lower RH side of
LTR.
TO LTR RADIATOR
TO IC
PUMP
Pump hose outlet connection view
Intercooler pump outlet hose (1315-6K236)
Pump hose to LTR connection
