2015-2017 5.0L Mustang Phase 1-2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 35 800.59.ROUSH

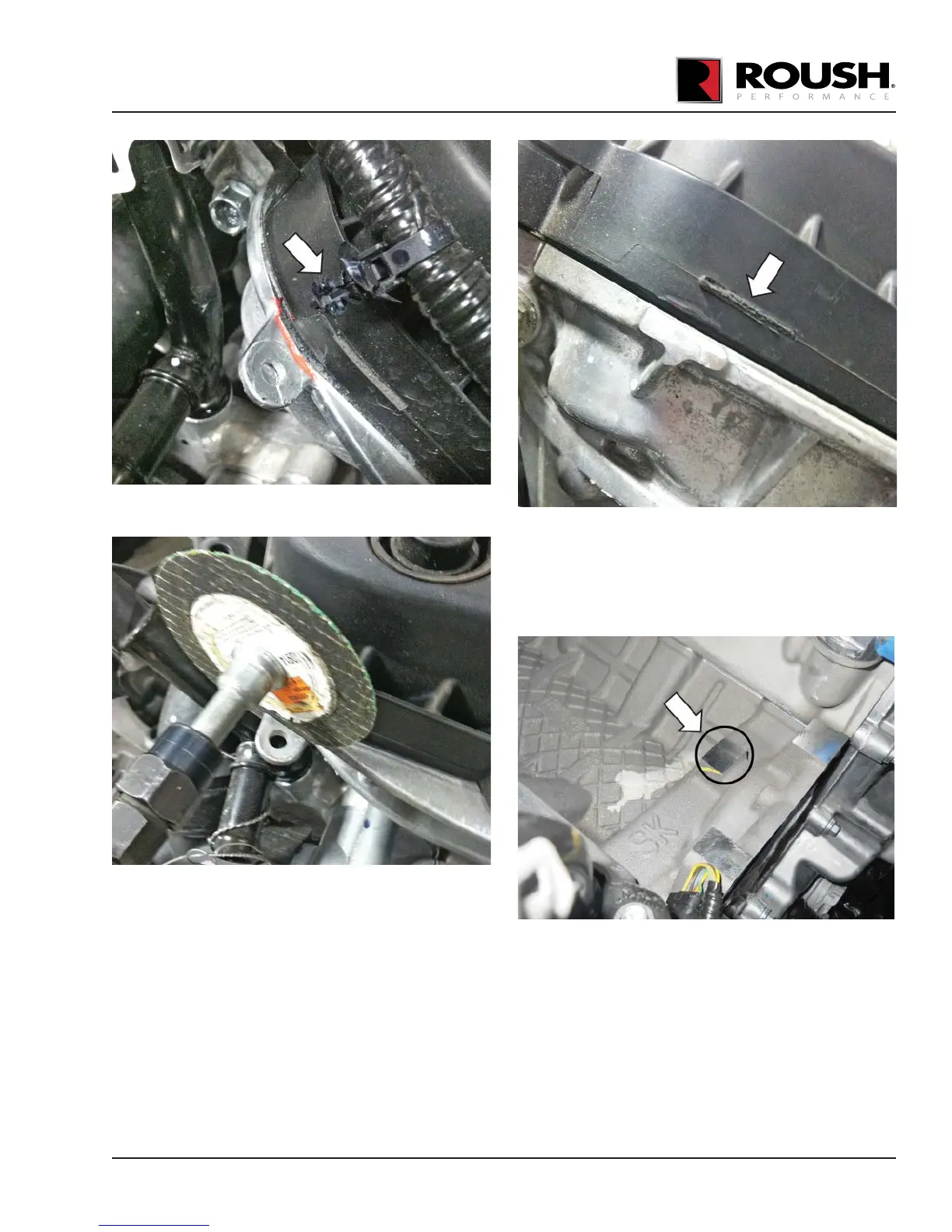

4. Remove the wiring retention clip from the feature
on the front cover and set aside.
5. Using a suitable cutting tool, remove the mounting
tab. Follow the edge of the part. Use caution as to
not contact the cam covers.
6. Deburr any rough edges on the cover and remove
the retention harness from the wire harness.
INTAKE VALLEY MODIFICATION
1. Mark the boss in the intake valley behind the
water pump mounting location as shown.
2. Use a grinder or suitable tool to grind the boss
down across the entire length. Make sure to take
off material uniformly along the angle. If high
spots are left, the intake manifold will not seat
properly on the engine.
