2015-2017 5.0L Mustang Phase 1-2 RHD ROUSHcharger Kit
SECTION B – MODIFICATIONS
1316-RHD-AA 12152016 29 800.59.ROUSH

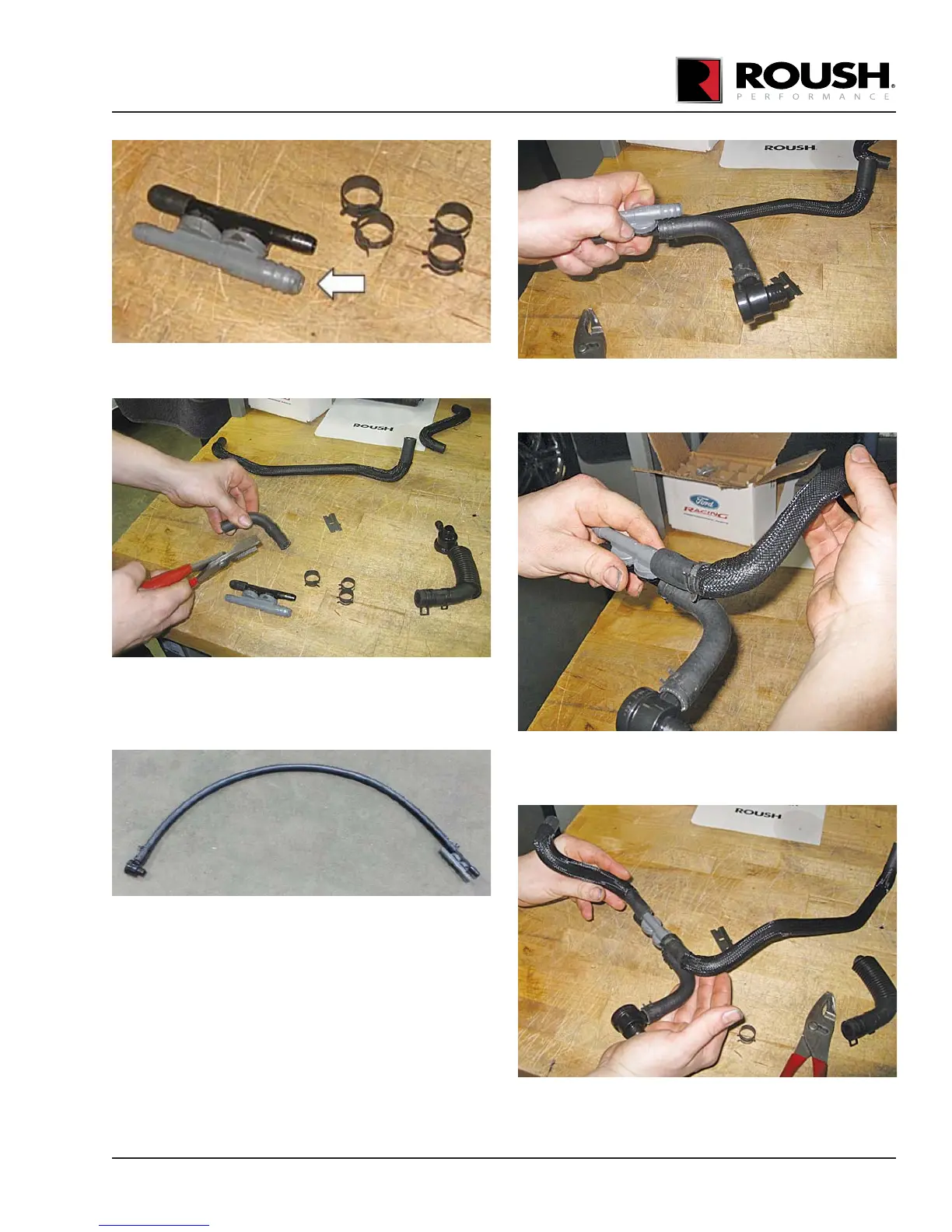

8. Use the takeoff clamps and attach them to the
aspirator to brake booster hose (1315-9D690).
9. Install the aspirator to brake booster line
(1315-9D690RHD) into the black port on the brake
aspirator assembly. Then install the check valve
that plugs into the brake booster.
10. Install the line that goes from the supercharger to
the aspirator assembly (1315-9D692) into the 1/2-
inch grey tting on the aspirator assembly.
11. Install the hose that goes to the clean air tube
(1315-9D691) into the remaining port on the brake
aspirator assembly.
