2015-2017 5.0L Mustang Phase 1/2 RHD ROUSHcharger Kit
SECTION D – INSTALLATION
1316-RHD-AA 12152016 66 800.59.ROUSH

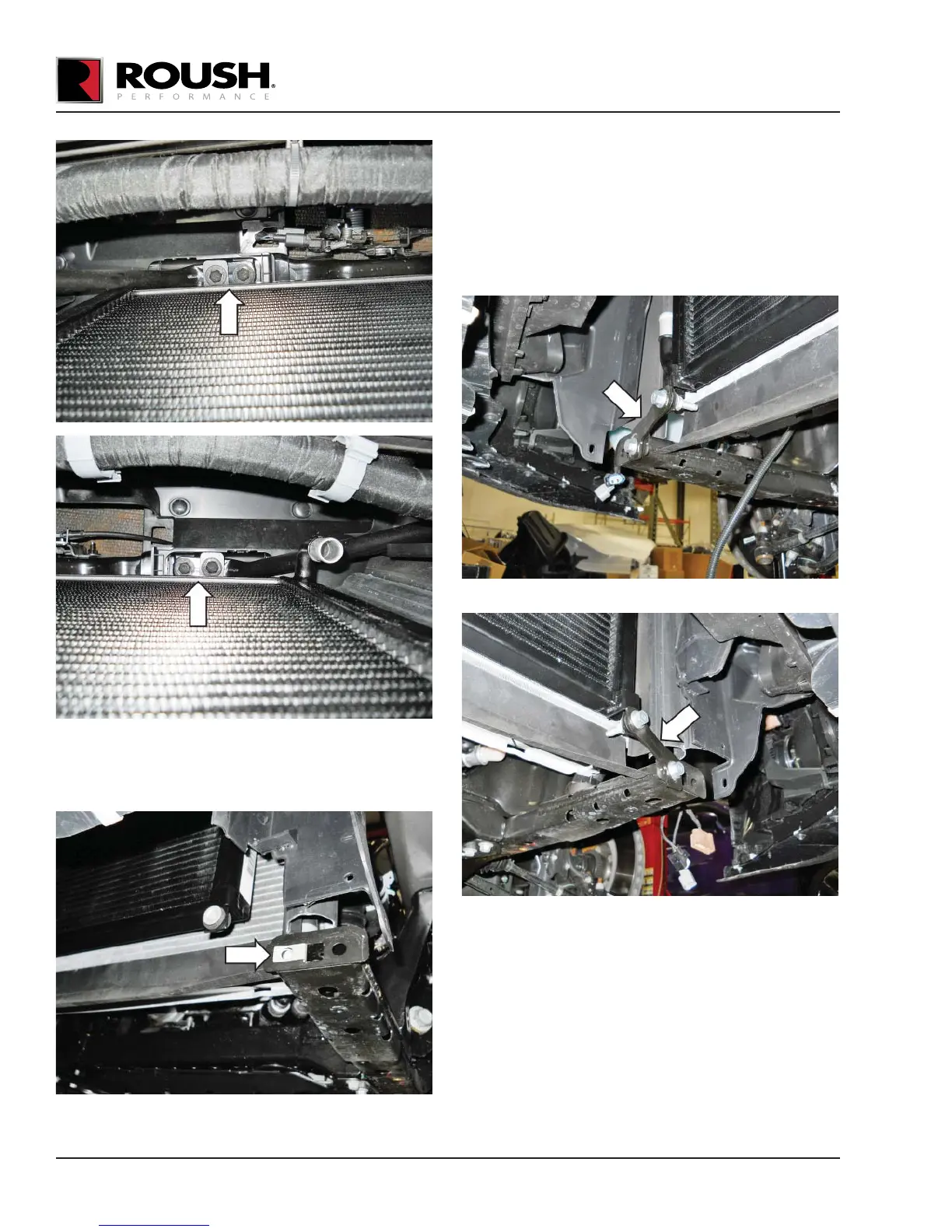

4. Install two (2) J-clips (W520823) on both frame rail
ends as shown. Some trimming of the J-clip may
be required to install the J-clip through the hole in
the frame.
5. When viewing from the front of the vehicle install
the Support Bracket (1315-8K245) on the right
hand side and the Support Bracket (1315-8K244)
on the left hand side. Secure each bracket at
the radiator using a bolt (W705128) and Nut
(W520413). Secure each bracket to the chassis
using a bolt (W705128) through the J-clip. Torque
to 25 Nm.
RH bracket
LH bracket
6. Temporarily install the LTR outlet hose (1315-
8D030) on the upper LH side of the LTR radiator
and route it to the intake manifold. Mark the LH
radiator close-out panel where the hose should
pass through. Use snips to cut a notch in the
close-out panels as required for the hose to pass
through.
