Rowe NiteHAWK - Figure 3-1 - Speaker Connections

Sound System Setup NiteHAWK Internet Jukebox
3-8 22022602
CHANNEL 2
E1 E2 E3 E4 E5 E6 E7
E7 E6 E5 E4 E3 E2 E1
CHANNEL 1
70V MONO
70V
70V
A1 A2 A1 A2
AUDIO OUTPUT
TRANSFORMER ASSEMBLY
500 WATTS
PER CH
500 WATTS
PER CH
24 V
16 V
8V
4V
2V
0V
0V
2V
4V
8V
16 V
24 V
1000 WATT
POWER AMP

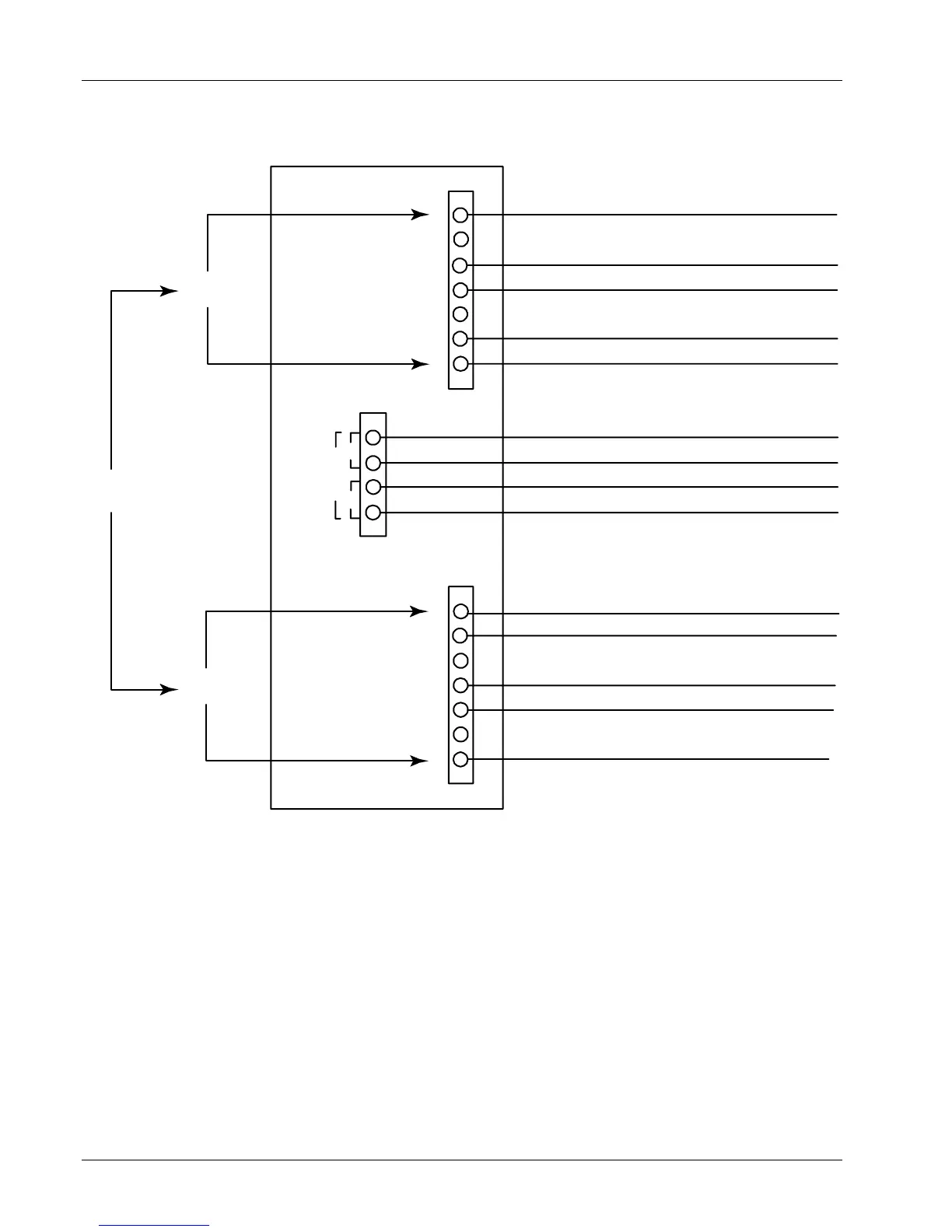

Figure 3-1 - Speaker Connections
