OUTPUT TRANSFORMER ASSEMBLY
Refer to Figure 8-9.
Ref. Part No. Description Qty
40832115 Output Transformer Assembly ................................................................................. Ref
1 61133101 Chassis - Audio Output ................................................................................................ 1
2 30426707 Binding Post Strip ......................................................................................................... 2
3 30426706 Binding Post Strip ......................................................................................................... 1
4 70233206 Bushing - Snap (Split) .................................................................................................. 1
5 40949203 CBA - Output Resistor .................................................................................................. 1
6 40633503 Transformer - Output .................................................................................................... 2
Items Not Shown:
34033402 Harness Assembly - Output Transformer .................................................................... 1
21963843 Jumper Assembly ......................................................................................................... 2

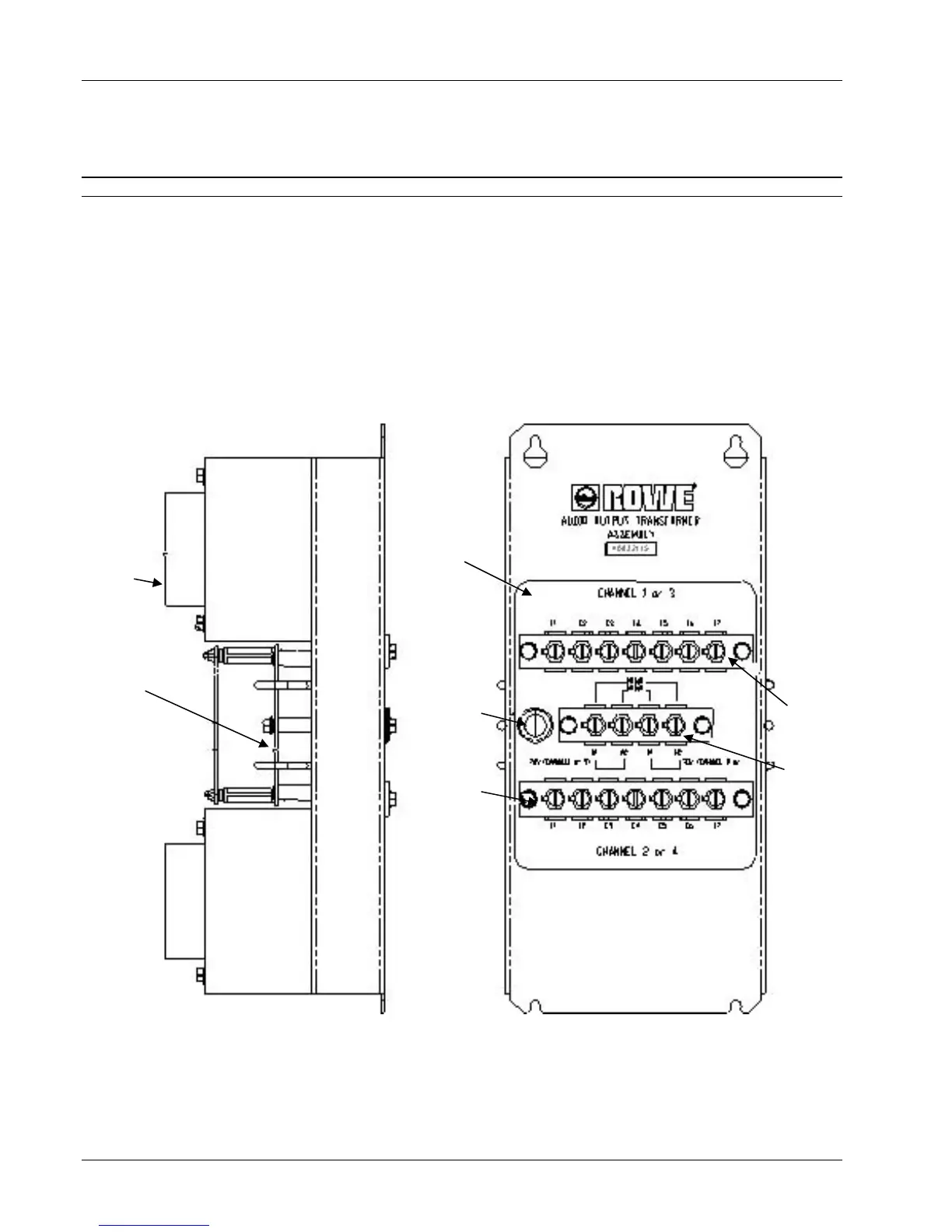

Figure 8-9 - Output Transformer Assembly
1
2
4
2
3
6
5
