Rowe NiteHAWK - Power Supply Assembly; Figure 8-7 - Power Supply Assembly

Parts Catalog NiteHAWK Internet Jukebox
8-16 22022602
POWER SUPPLY ASSEMBLY
Refer to Figure 8-7.
Ref. Part No. Description Qty
22145809 Power Supply Assembly ......................................................................................... Ref.
1 21375902 Outlet - Convenience ................................................................................................... 2
2 22118703 Power Inlet IEC 320 C-14 ............................................................................................ 1
3 34038808 Harness Assembly - Power Supply (Only Connectors Shown) ................................... 1
4 22145908 Chassis - Power Supply ............................................................................................... 1
5 22141301 Standoff - #8-32 x 1.5 ................................................................................................... 4
6 40923409 CBA - Power Supply (with Router Reset) .................................................................... 1
7 22146002 Cover - Power Supply .................................................................................................. 1
8 70073606 Circuit Breaker (3 AMP) ............................................................................................... 1
9 70073609 Circuit Breaker (6 AMP) ............................................................................................... 2

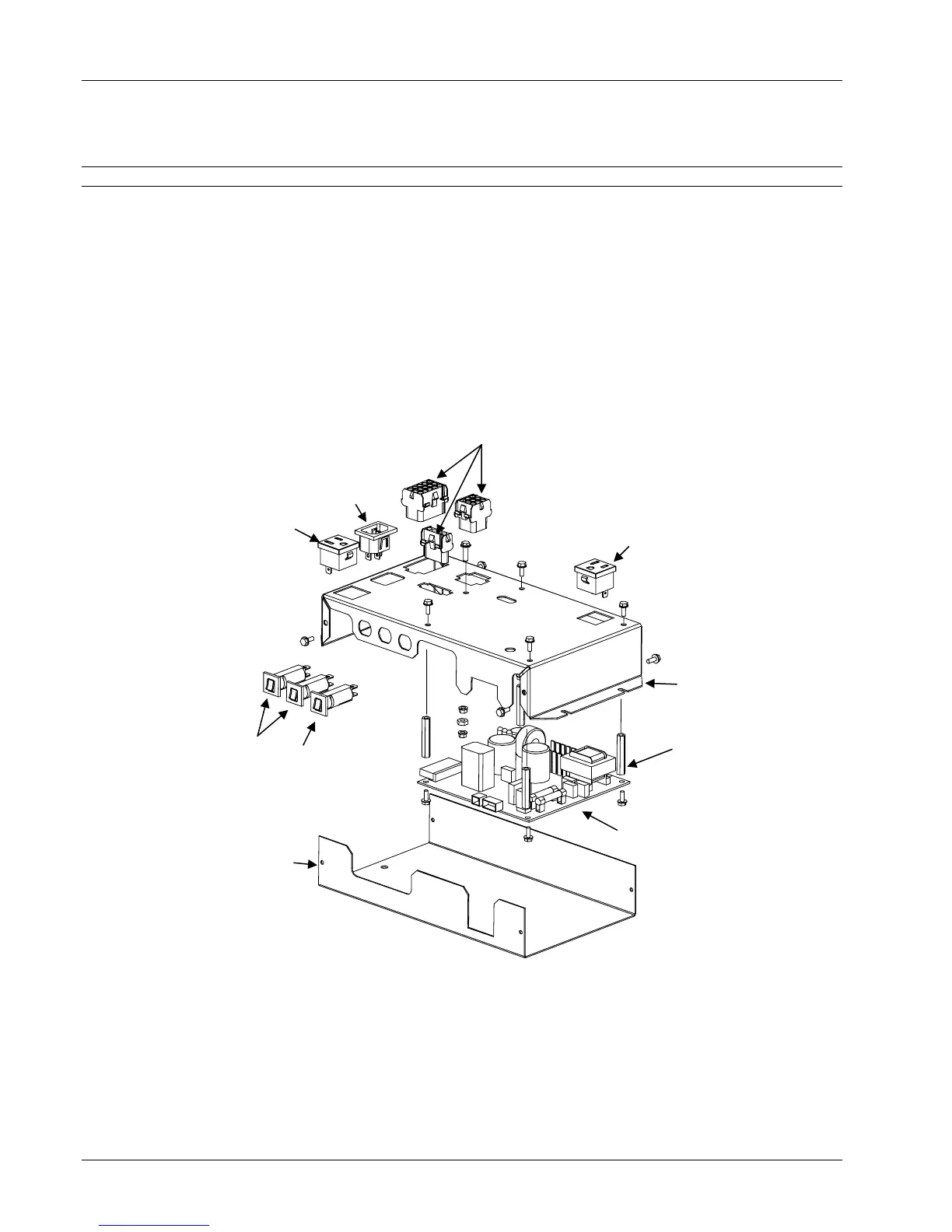

Figure 8-7 - Power Supply Assembly
6
4
9
7
1
2
5
1
8
3
