NiteHAWK Internet Jukebox Adding Microphones
22022602 4-1
Section: 4 Adding Microphones
Up to two microphones can be plugged into the 4 Channel Preamplifier and used for paging. Microphones’
can be Rowe custom design, CB or “Rowe CB”, low-level balanced, low level unbalanced,or Rowe wireless.
NOTE 1: A 26679501 Paging System is needed to use low-level balanced and unbalanced
microphones.
NOTE 2: MIC 1 input has the standard voice activated and switch activated circuitry. MIC 2 input
has only the switch activated circuitry.
Rowe custom design microphones are no longer available but existing ones have a momentary PUSH to
TALK switch, a volume control, and plug directly into the 4 Channel Preamplifier connectors MIC 1 or MIC 2
via a Rowe 50-foot microphone cable.
The following Paging System Kits are available: The 26679501 Paging System with Hand-Held Microphone
contains: a Rowe CB type microphone that does not have a volume control, a Paging Microphone Adapter
that has a volume control, a Rowe 50-foot microphone cable that connects between the Paging Adapter and
the 4 Channel Preamplifier, and installation and operating instructions.
The 30995201 Paging System with Hand-Held Wireless Microphone allows wireless paging and its receiver
plugs into the 4 Channel Preamplifier connectors MIC 1 or MIC 2. The wireless receiver has an output level
adjustment that’s accessed through a hole in the cover. Use a small flat bladed screwdriver to adjust it.
Paging Mic Adaptor

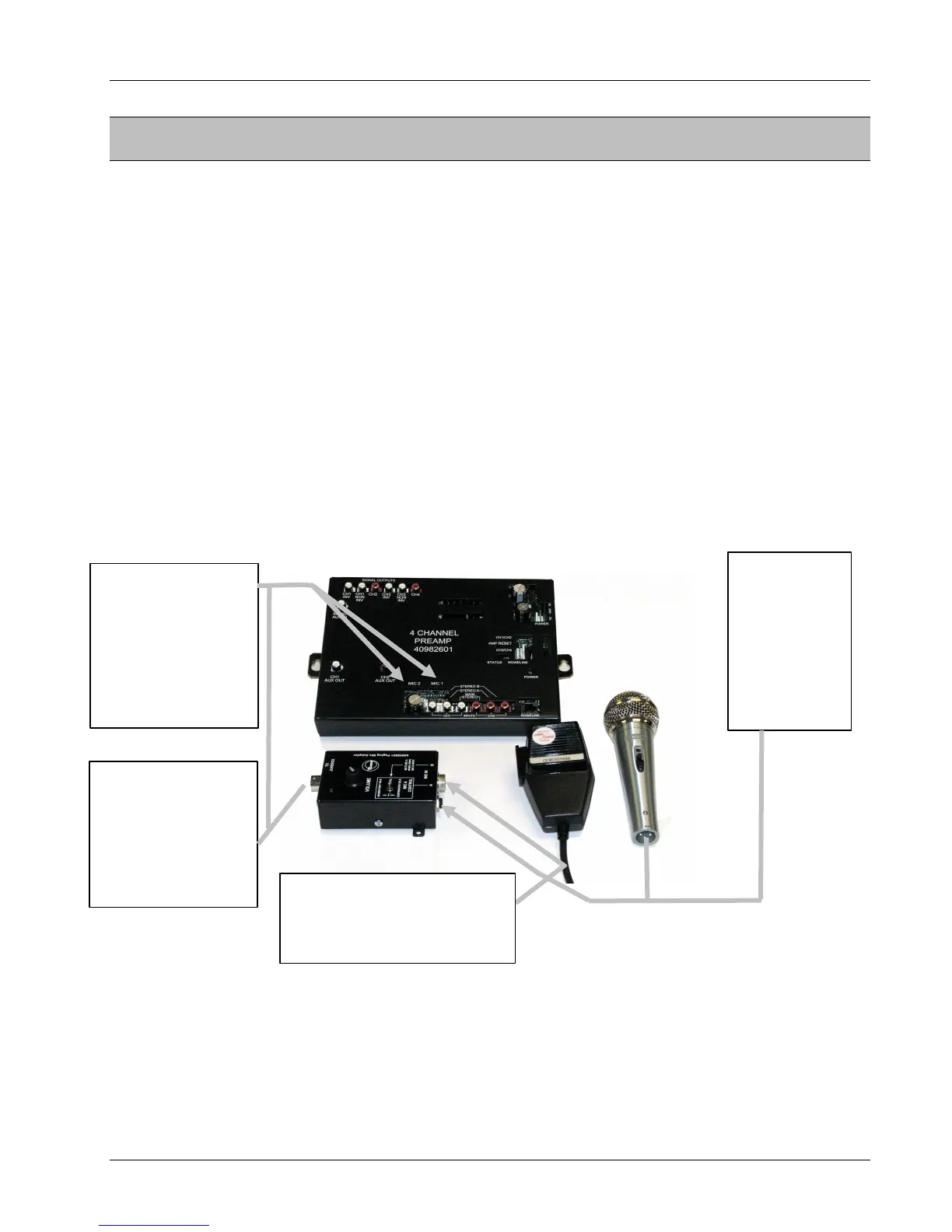

Figure 4-1 - Microphone Connections
Adding Microphone(s)
The jukebox factory settings have all microphones unmuted and routed to the four channel signal outputs and
AUXILIARY OUT. Refer to the "Audio Modes-Input Select", "Audio Modes-Muting", and "Audio Modes-Output
Routing" operator setup screens in the included manual “Network Setup, Jukebox Operation, Operator Setup
Screens” if you want to change those settings. For assistance contact AMI Technical Service.
Plug Rowe
Microphones that
have a volume
control, or the
wireless receiver
connector, into
MIC 1 or MIC 2
connectors.
Plug low-level
balanced or
unbalanced
microphones
into A INPUT
of Paging Mic
Adaptor.
Connect cable
between the
Paging Mic Adaptor
“TO JUKEBOX”
connector and the
MIC 1 or MIC 2
connector.
Plug a Rowe CB or other CB
Microphone into “B INPUT”
Connector of Paging Mic
Adaptor.
To Next Page
