Routine Service NiteHAWK Internet Jukebox
6-2 22022602
PREVENTIVE MAINTENANCE
Preventive maintenance should be performed at regular intervals. At every visit, the exterior
should be cleaned and the touch-screen should be re-calibrated. The interior should be
cleaned every 3-4 months.
Exterior
Part Procedure
Touch-screen
Clean with household glass cleaner and paper towel or clean cloth.
CAUTION: DO NOT SPRAY CLEANER ON THE TOUCH-SCREEN.
SPRAY CLEANER ON THE TOWEL, THEN CLEAN THE
TOUCHSCREEN.
After cleaning the touch-screen it may not respond to touch for a few seconds.
Exterior Surfaces Cloth moistened in water with any mild cleaning product
Calibration Please see the following procedure.
Touch-screen Calibration
The following procedure describes how to calibrate the touch-screen:
1. Power on the NiteHAWK jukebox and allow it to complete the startup sequence.
2. Open the door of the jukebox.
3. Locate the “Calibrate” button on the Rowelink Controller. Refer to Figure 6-1.
Press the button once to launch the calibration program. This will override the jukebox
application while the calibration program runs. Refer to Figure 6-2.
4. Close the door and make sure it locks.
5. Follow the directions on the screen, touching the center of the targets, then touching “YES”.
Calibrate
TB1
ROWELINK
P6
P7
P9
P5
P8
P10
POWER OUT
P23
P14
POWER IN
POWER IN
12 VDC
24 VDC
24 VAC
5 VDC
RS232
P22
CC RL RX
CC RL TX
P21
COIN
ACCEPTOR
P20
COIN
SWITCHES
P19
BILL
ACCEPTOR
POWERCALIBRATESERVICE
REJECT
ROWELINK CONTROLLER
40955703
P3
AMP MUTE
P11
IR DETECTOR
P12
SW'S
P17P18
COUNTER
MDB
BILL
ACC.
POWER
P16
CRDT STATUS
KID RL TX
CRDT RL TX
IR RCV
1000 W
250 W
P15
REJECT
P4
FAN CKTS
P2
VIDEO SW

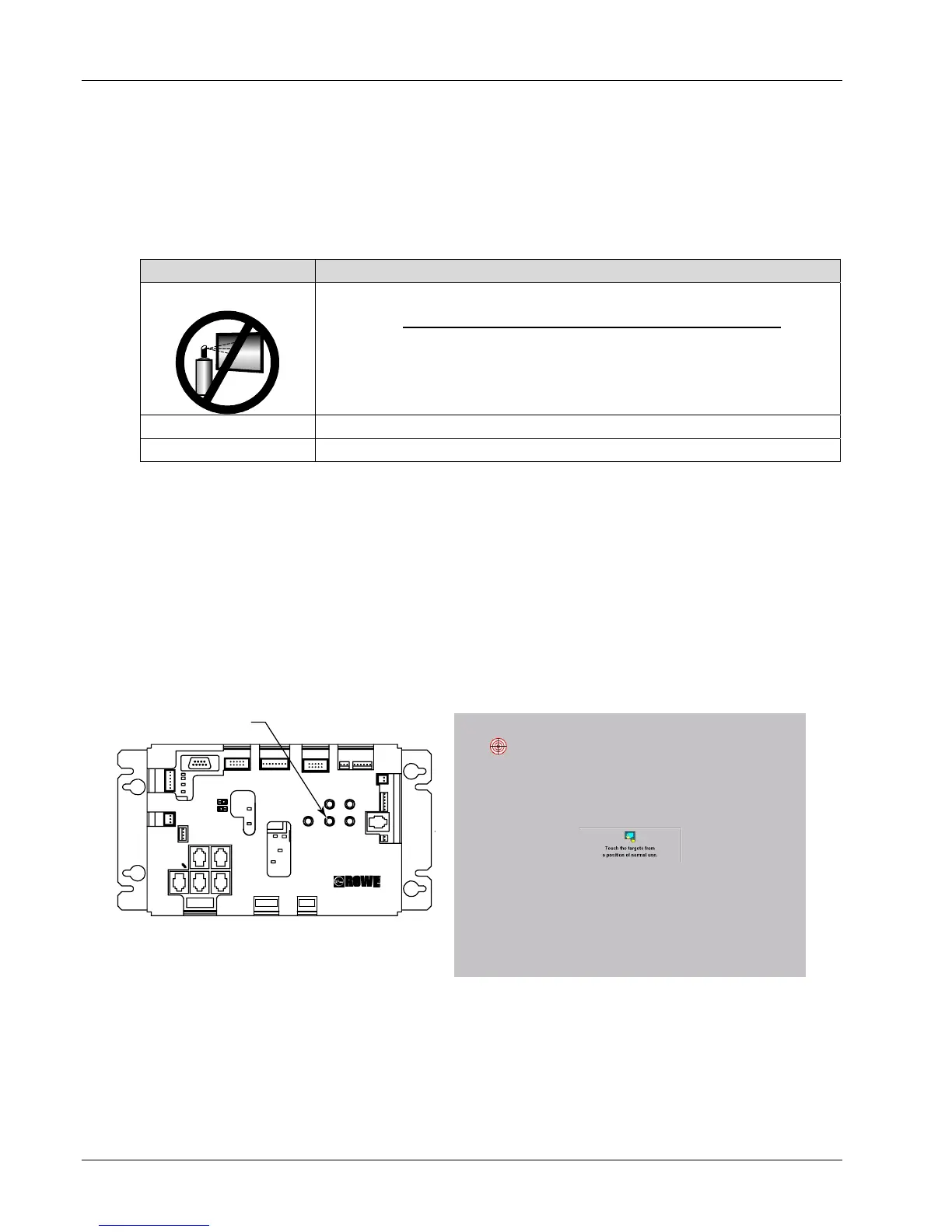

Figure 6-1 - Calibrate Button Figure 6-2 - Calibration Screen
