15.10Disassembly solenoid pilot valve unit
15
The following tools are necessary to remove this component:
151515
Torx screwdriver T10
151515
Disassembletheexternalcoversasdescribedabove,untildisassemblyoftheupper
cover, to access the component to be replaced.
1515

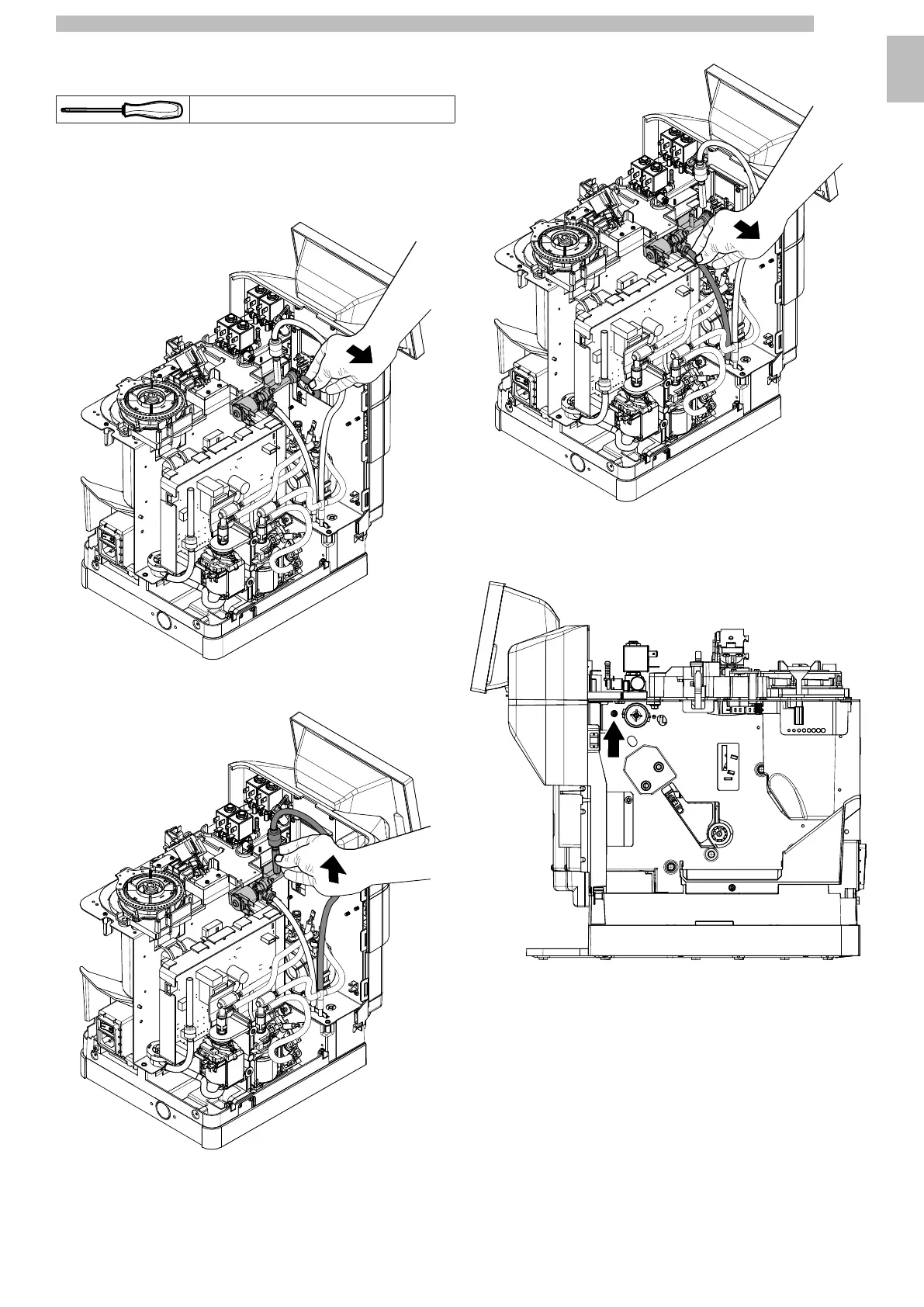

Slip off the coffee wand as indicated in the picture.
1515151515
Slip off the discharge pipe with check valve.
1515151515
Slip off the discharge coffee wand.
151515151515
Removethebrewgroup.RemovethescrewshowninfigureusingaTorxT10
screwdriver.
1515151515
