Sakai TW504 - Vibrator Hydraulic Pump (R) (SW354)

4-022
HYDRAULIC SYSTEMS
3-2-2. Vibrator hydraulic pump (R) (SW354)
SW354-04005
1
2
1
2
VIEW A
A

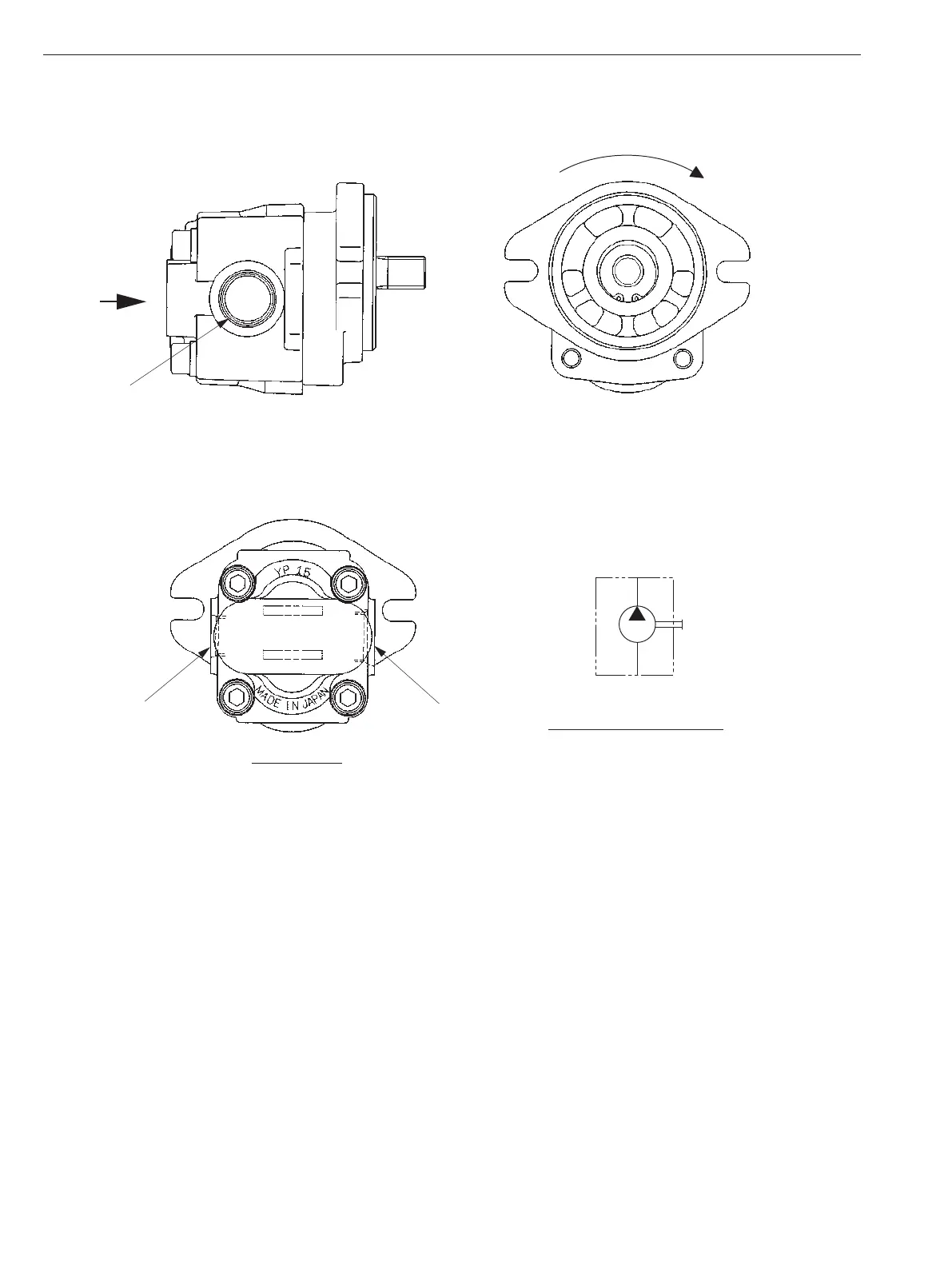

Hydraulic circuit diagram
1
(1) Suction port [RVS] : G3/4
(2) Discharge port [RVD] : G1/2
Specications
Displacement• : 13.9 cm
3
/rev ( 0.85 cu.in./rev )
Rated pressure• : 17.2 MPa ( 2,494 psi )
Weight• : 2.3 kg ( 5.1 lbs )
