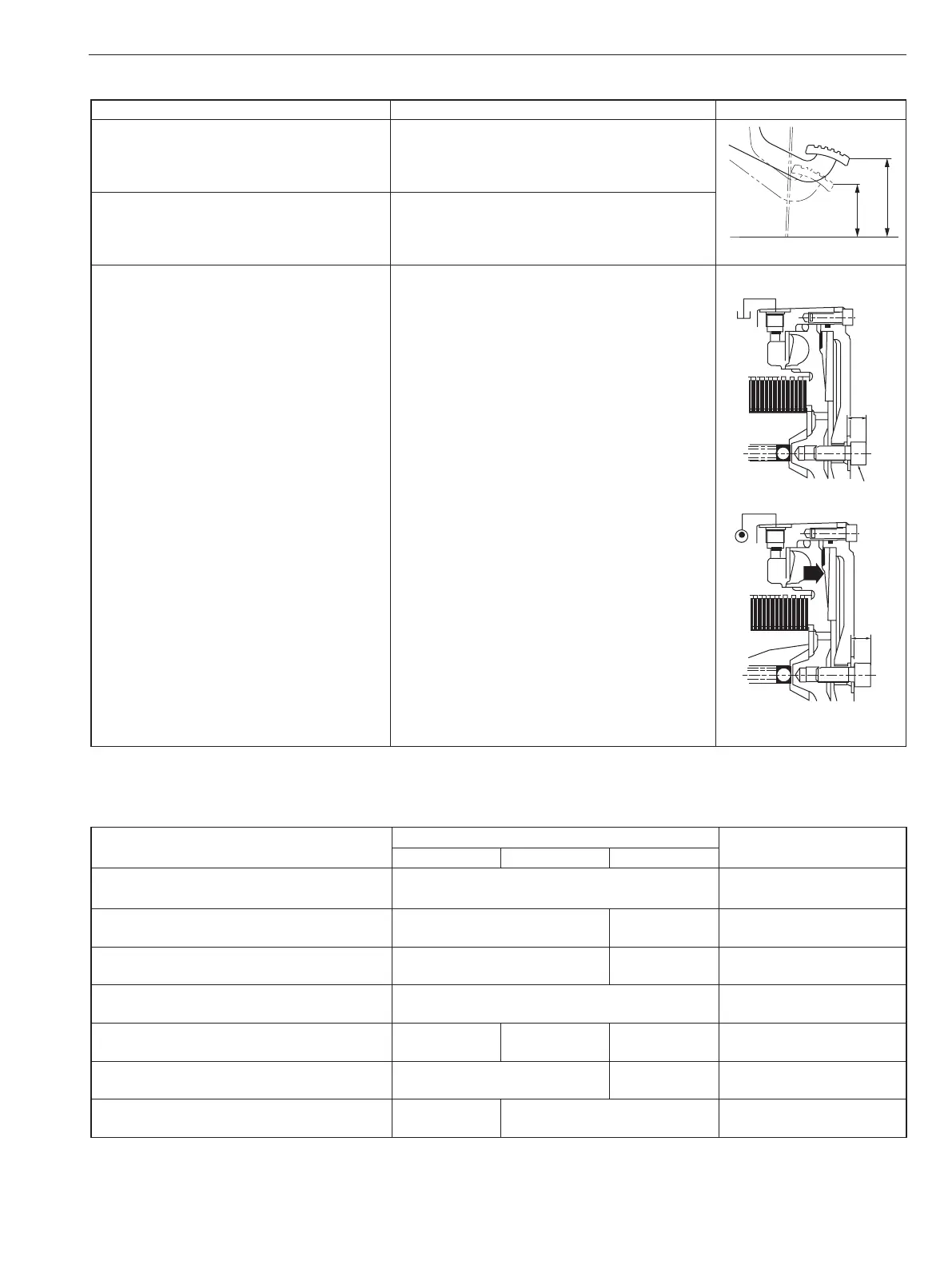

2-5. Brakes
Item Standard value Remarks
Clearance between brake pedal and
oorboard (as released)
Note 1: 119 mm (4.7 in.)
SW354-02002
Note 1
Note 2
Clearance between brake pedal and
oorboard (when pressed down)
Note 2: 79 mm (3.1 in.)
Replacement standard brake stroke length
More than 3.5 mm (0.14 in.)
(L2-L1)
SW300-1-02001
L1
L2
Bolt
Brake lock condition
Brake releasing condition
2-6. Capacities
Item
Standard value
Remarks
SW354 TW354 TW504
Engine oil pan
7.0 L
( 1.8 gal. )
Fuel tank
40 L
( 10.6 gal. )
50 L
( 13.2 gal. )
Coolant
5.8 L
( 1.5 gal. )
6.5 L
( 1.7 gal. )
Hydraulic oil tank
43 L
( 11.4 gal. )
Vibrator case
5.0 L × 2
( 1.3 gal. ) × 2
5.0 L
( 1.3 gal. )
6.0 L
( 1.6 gal. )
Water spray tank
200 L
( 52.8 gal. )
310 L
( 81.9 gal. )
Liquid spray tank N/A
10 L
( 2.6 gal. )
