Sakai TW504 - Electrical System Troubleshooting (Sw504); Engine Diagnosis Trouble Code; Description of Diagnostic Trouble Code (SPN, FMI)

10-084
TROUBLESHOOTING
SW504
4. ELECTRICAL SYSTEM TROUBLESHOOTING (SW504)
4-1. Engine Diagnosis Trouble Code
4-1-1. Description of diagnostic trouble code (SPN, FMI)
SV544-09001

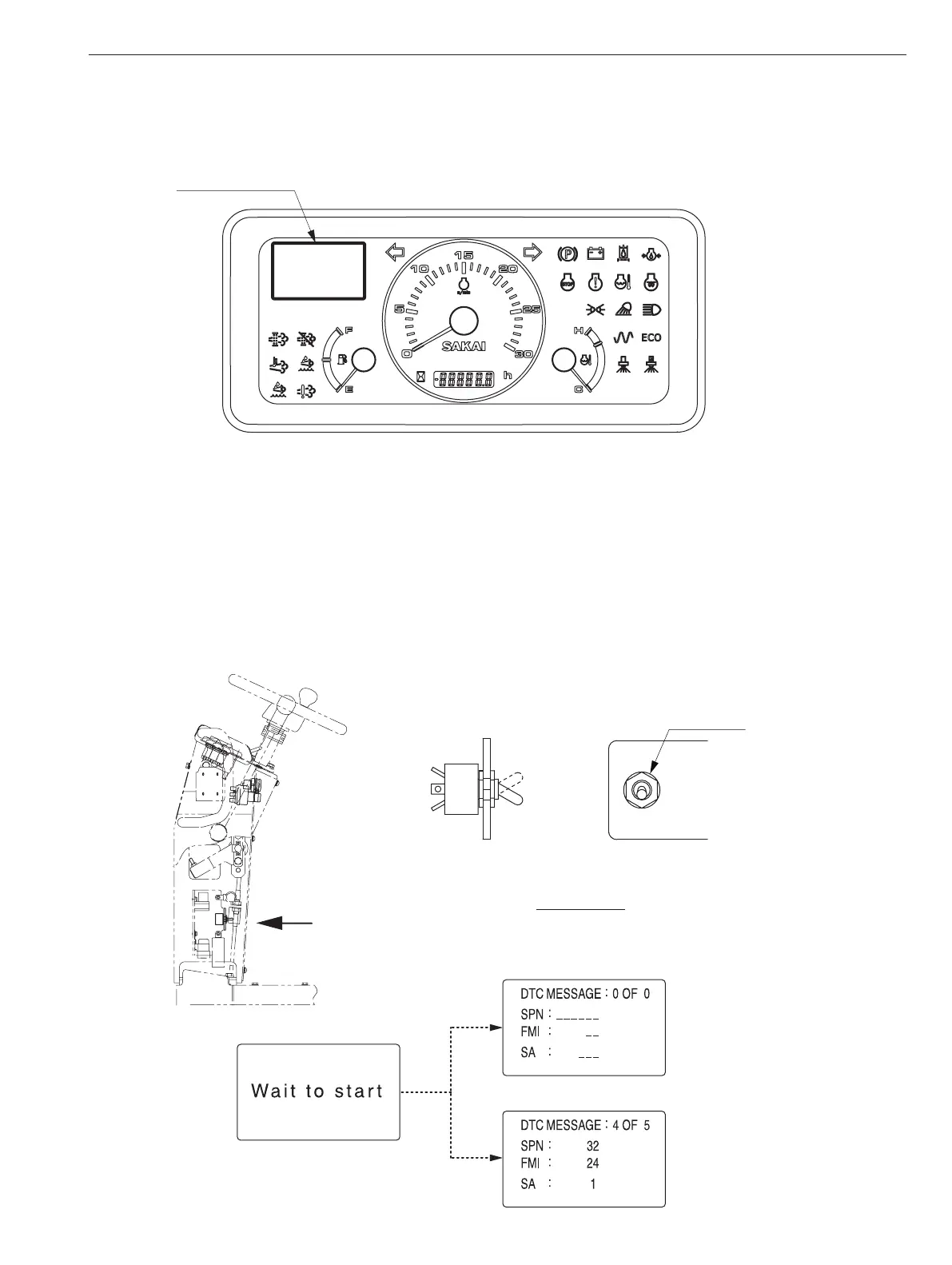

Display monitor
Fault codes can be accessed in at least two different ways; using the electronic service tool or a method of
displaying it on a display monitor in a combination meter.
To check the fault code occurring in the electronic fuel system / protection system of the engine on the display
monitor.
1) Set the start switch to “ON”.
2) Set and hold the diagnostic switch to “DIAG.”
SW504-10011
DIAG.
OFF
Diagnostic
switch
VIEW A
No fault code.
Self-diagnosis in progress.
Occurrence of fault code.
A
•
•
