SPECIFICATIONS
SPECIFICATIONS

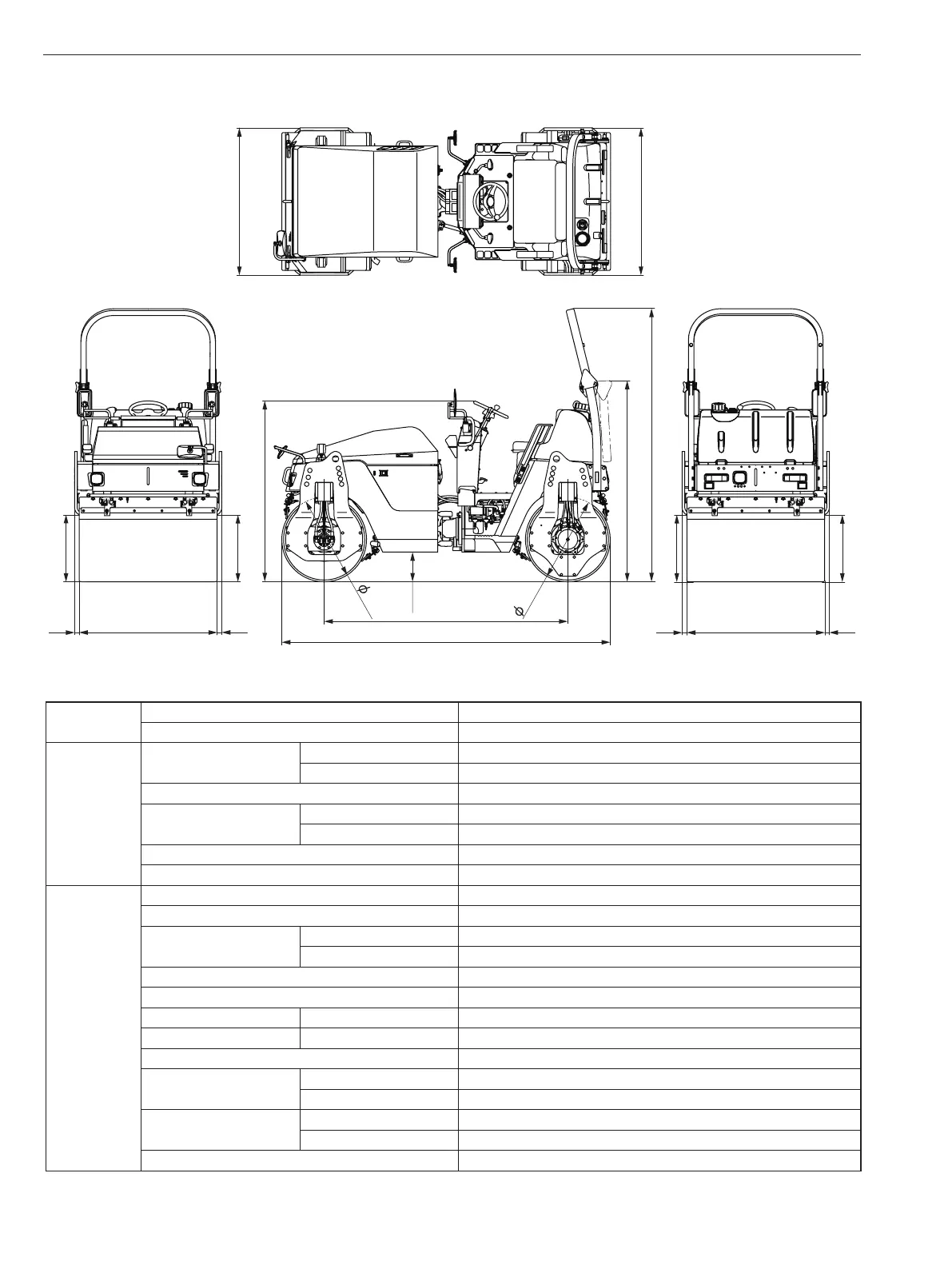

5-2. SW504 ROPS
0448-99032-0-10746-0
280
1900
2565
2300
3100
1705
80
0
1300
635
45 45
635
80
0
1300
635
45 45
635
1390
1390
Model & Type
Model SAKAI SW504 with ROPS
Type VIBRATORY TANDEM ROLLER
Weight
Operating weight
without ballast 4,060 kg ( 8,955 lbs. )
with ballast N/A kg ( N/A lbs. )
Maximum weight 4,240 kg ( 9,350 lbs. )
Shipping weight
with ROPS 3,810 kg ( 8,400 lbs. )
without ROPS 3,740 kg ( 8,250 lbs. )
Load on front axle with operating weight 1,990 kg ( 4,390 lbs. )
Load on rear axle with operating weight 2,070 kg ( 4,565 lbs. )
Dimensions
Overall length 3,100 mm ( 122 in. )
Overall width 1,390 mm ( 55 in. )
Overall height
with ROPS 2,565 mm ( 101 in. )
without ROPS 1,705 mm ( 67 in. )
Wheelbase 2,300 mm ( 91 in. )
Compaction width 1,300 mm ( 51 in. )
Front drum width × dia. × thickness 1,300 mm × 800 mm × 17 mm (51 in. × 31 in. × 0.7 in.)
Rear drum width × dia. × thickness 1,300 mm × 800 mm × 17 mm (51 in. × 31 in. × 0.7 in.)
Ground clearance 280 mm ( 11 in. )
Kerb clearance
Right 635 mm ( 25 in. )
Left 635 mm ( 25 in. )
Side clearance
Right 45 mm ( 2 in. )
Left 45 mm ( 2 in. )
Leveling blade width N/A mm ( N/A in. )
SW504 ROPS
