Sakai TW504 - Vibrator Solenoid (F) Harness (1)

5-071
ELECTRICAL SYSTEM SW504

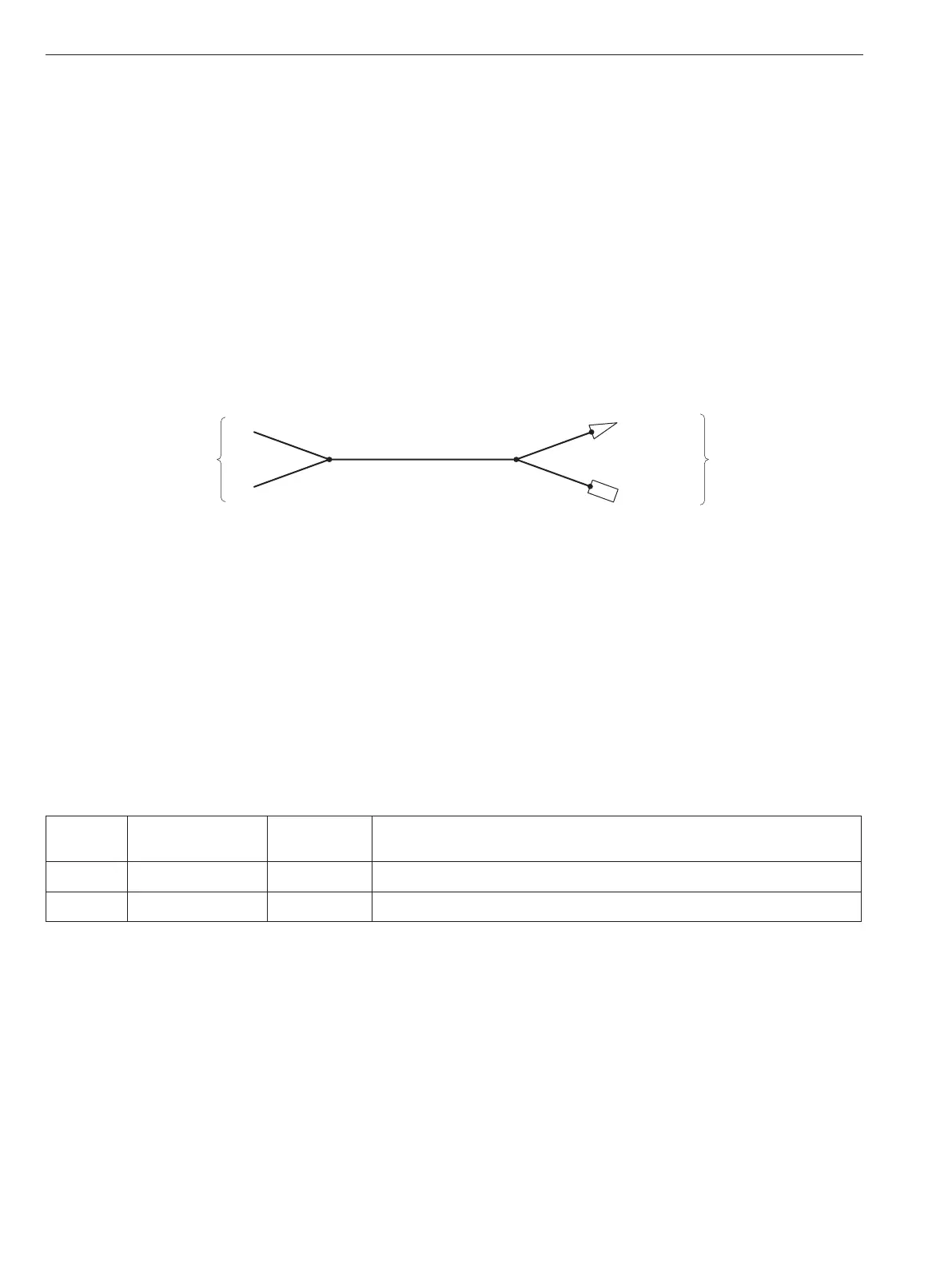

8-12. Vibrator Solenoid (F) Harness (1)
1448-09003-0-40062-0
Vibrator solenoid (F) Hi
(1)
(2)
Frame (F) harness
(P.5-061)
W,
50
B,50
VCTF 0.75mm
2
× 2C
125
W,
25
B,25
CB104
CA104
(BrR)
(LgY)
・ (LgY), (BrR) indicate the connection line color.
No. SIZE, COLOR
CONTACT
POINTS
CONNECTION
- B 2 Vibrator solenoid (F) Hi -1, Frame (F) harness -(LgY)
- W 2 Vibrator solenoid (F) Hi -2, Frame (F) harness -(BrR)
