Sakai TW504 - Adjustment of F-R Lever; Adjustment of Linkage

9-019
INSPECTION AND ADJUSTMENT
13. ADJUSTMENT OF F-R LEVER
13-1. Adjustment of Linkage
In cases such as propulsion pump is replaced, control cable
is replaced, or F-R lever does not move smoothly, make an
adjustment in accordance with procedure described below.
“N”, maximum “F”, and maximum “R” positions of F-R lever
(1) are positioned by notches.
①
Set F-R lever in “N”.
②
Attach control cable (2) to F-R lever.
Specied dimension a: 208 mm (8.19 in.)
③
Attach control cable to propulsion pump control lever (3).
Specied dimension b: 208 mm (8.19 in.)
④
Conrm the strokes of propulsion pump control lever (3).
Specied dimension c:
24 mm (0.94 in.)
Specied dimension d: 23 mm (0.91 in.)
•
•
★
★
★
★

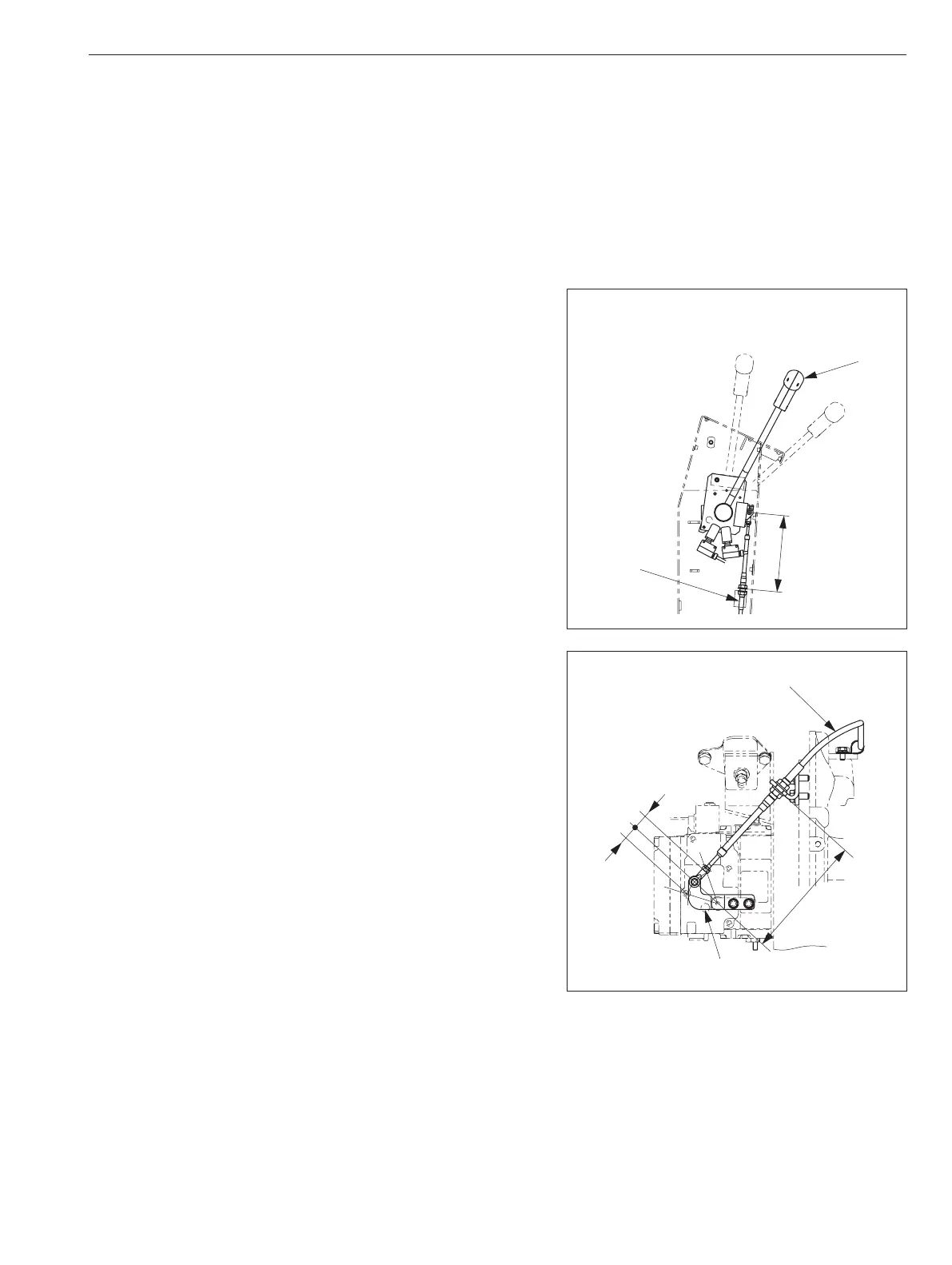

SW354-09018
R
N
F
1
a
2
SW354-09019
b
3
2
c
d
