SPECIFICATIONS
SPECIFICATIONS

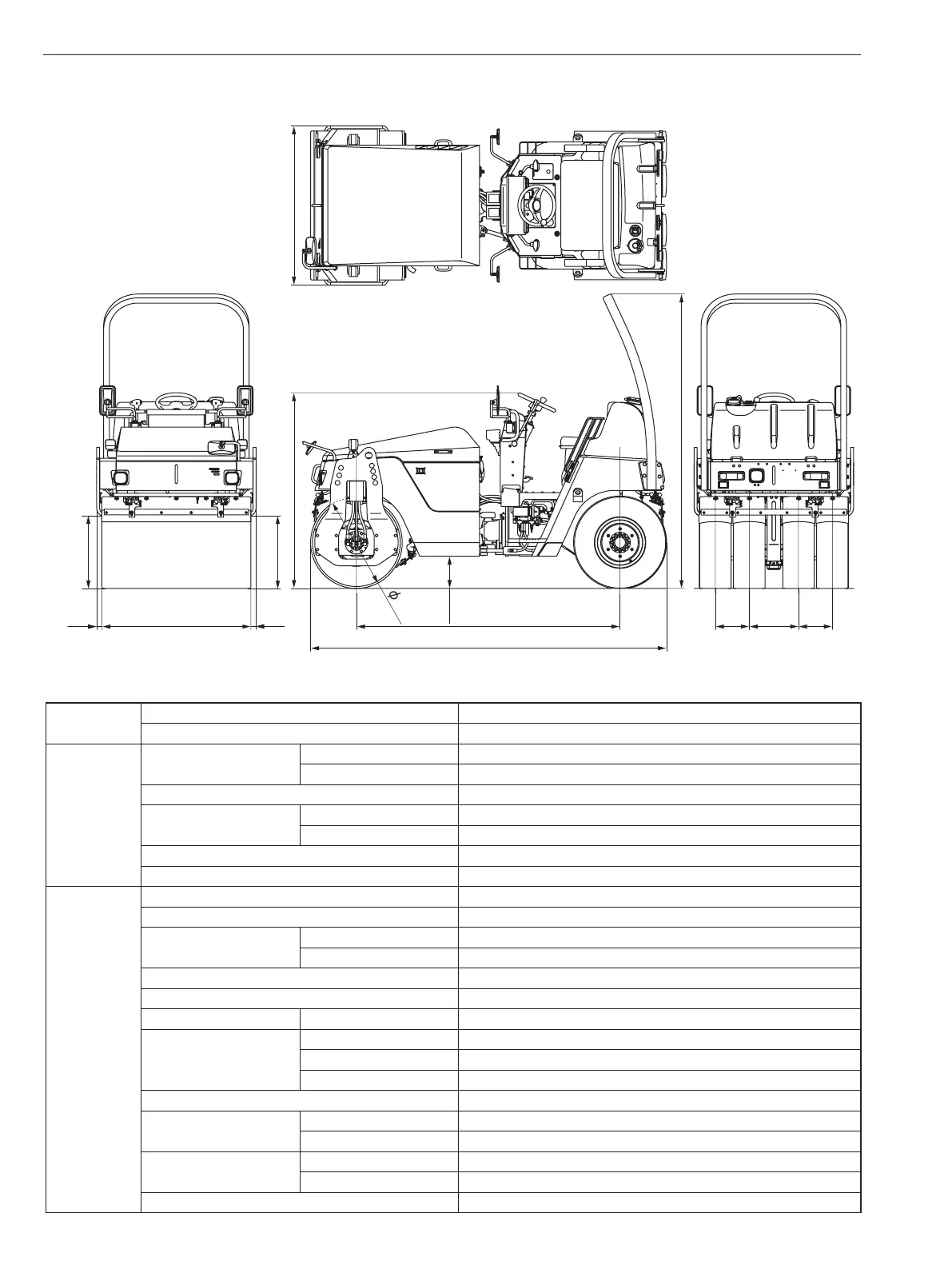

1-6. TW504 ROPS
0449-99020-0-10260-A
1390
2565
5
.
0
0
8
/
1
6
-
6
P
R
-
1
635
635
1300
45
45
1705
80
0
280
3105
2300
295430295
Model & Type
Model SAKAI TW504 with ROPS
Type VIBRATORY COMBINED ROLLER
Weight
Operating weight
without ballast 3,510 kg ( 7,740 lbs. )
with ballast N/A kg ( N/A lbs. )
Maximum weight 3,680 kg ( 8,115 lbs. )
Shipping weight
with ROPS 3,260 kg ( 7,185 lbs. )
without ROPS 3,190 kg ( 7,035 lbs. )
Load on front axle with operating weight 1,980 kg ( 4,365 lbs. )
Load on rear axle with operating weight 1,530 kg ( 3,375 lbs. )
Dimensions
Overall length 3,105 mm ( 122 in. )
Overall width 1,390 mm ( 55 in. )
Overall height
with ROPS 2,565 mm ( 101 in. )
without ROPS 1,705 mm ( 67 in. )
Wheelbase 2,300 mm ( 91 in. )
Compaction width 1,300 mm ( 51 in. )
Front drum width × dia. × thickness 1,300 mm × 800 mm × 17 mm (51 in. × 31 in. × 0.7 in.)
Rear tyres (outer shell)
width × dia. 1,295 mm × 812 mm (51 in. × 32 in. )
Size 10.5/80-16-6PR
Inflation pressure 294 kPa ( 42.6 psi )
Ground clearance 280 mm ( 11 in. )
Kerb clearance
Right 635 mm ( 25 in. )
Left 635 mm ( 25 in. )
Side clearance
Right 45 mm ( 2 in. )
Left 45 mm ( 2 in. )
Leveling blade width N/A mm ( N/A in. )
TW504 ROPS
