Sakai TW504 - TW Types: Rear

9-008
INSPECTION AND ADJUSTMENT
5-1-2. TW types: rear
Oil temperature during measurement : 50 ± 5°C (122 ± 9°F)
① 

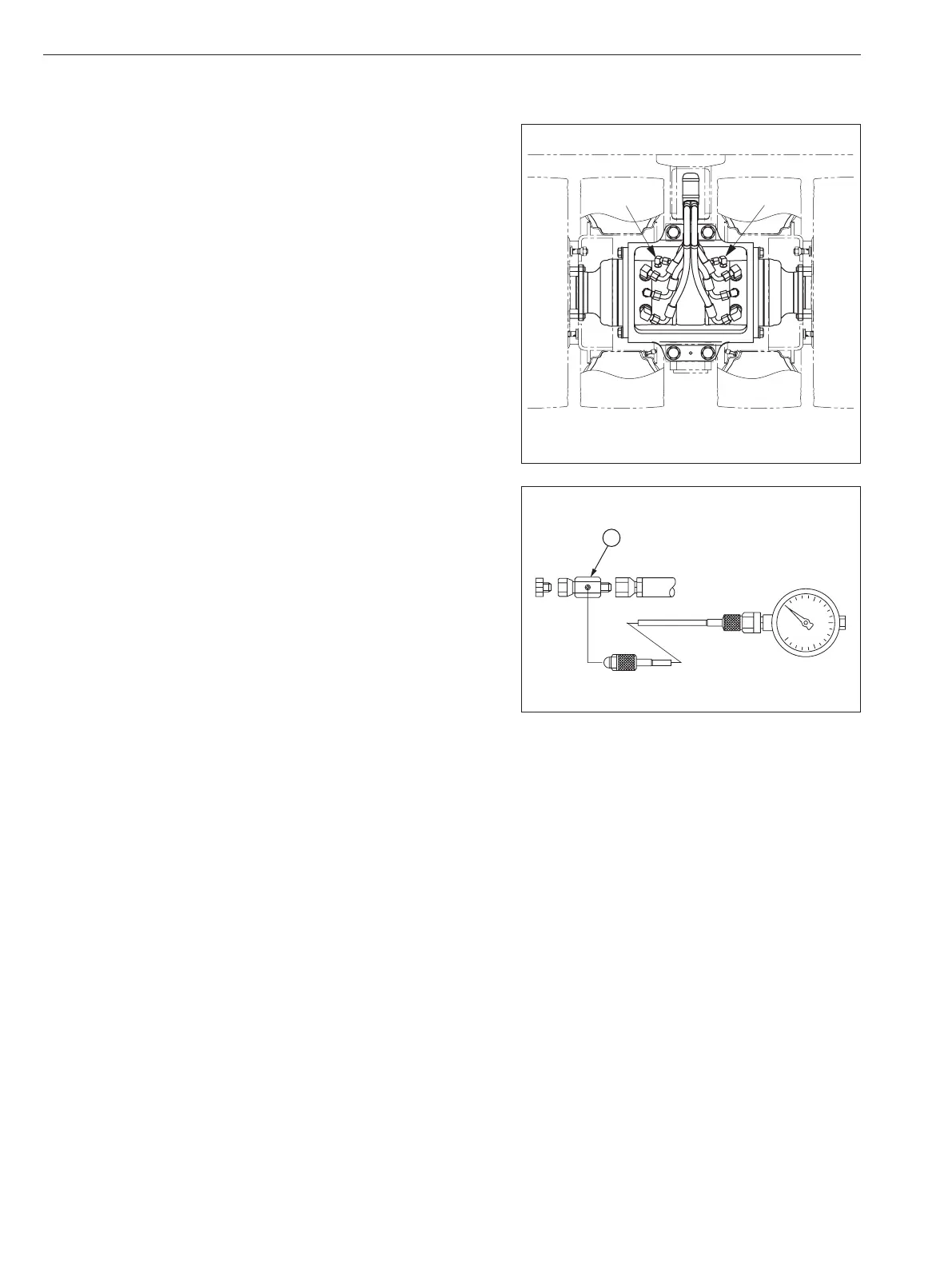

Disconnect hose (3) and (4) from propulsion motor. Attach
pressure gauge through adapter
ⓜ
.
Adapter
ⓜ
: G1/4
Pressure gauge : 0 to 5 MPa (0 to 725 psi)
② 
Conrm that F-R lever is “N”.
③ 
Apply parking brake by pressing parking brake switch
button.
④ 
Start the engine and set throttle lever to “Full”.
⑤ 
Release parking brake by pressing parking brake switch
button.
⑥ 
Read brake release pressure indicated by pressure
gauge.
Brake release pressure : 1.5 MPa (218 psi)
•
•
•
★
TW354-09001
3
4
m
PG002002
