Sakai TW504 - Engine (Sw504); Engine Mount

3-006
ENGINE AND CONTROLSSW504
4. ENGINE (SW504)

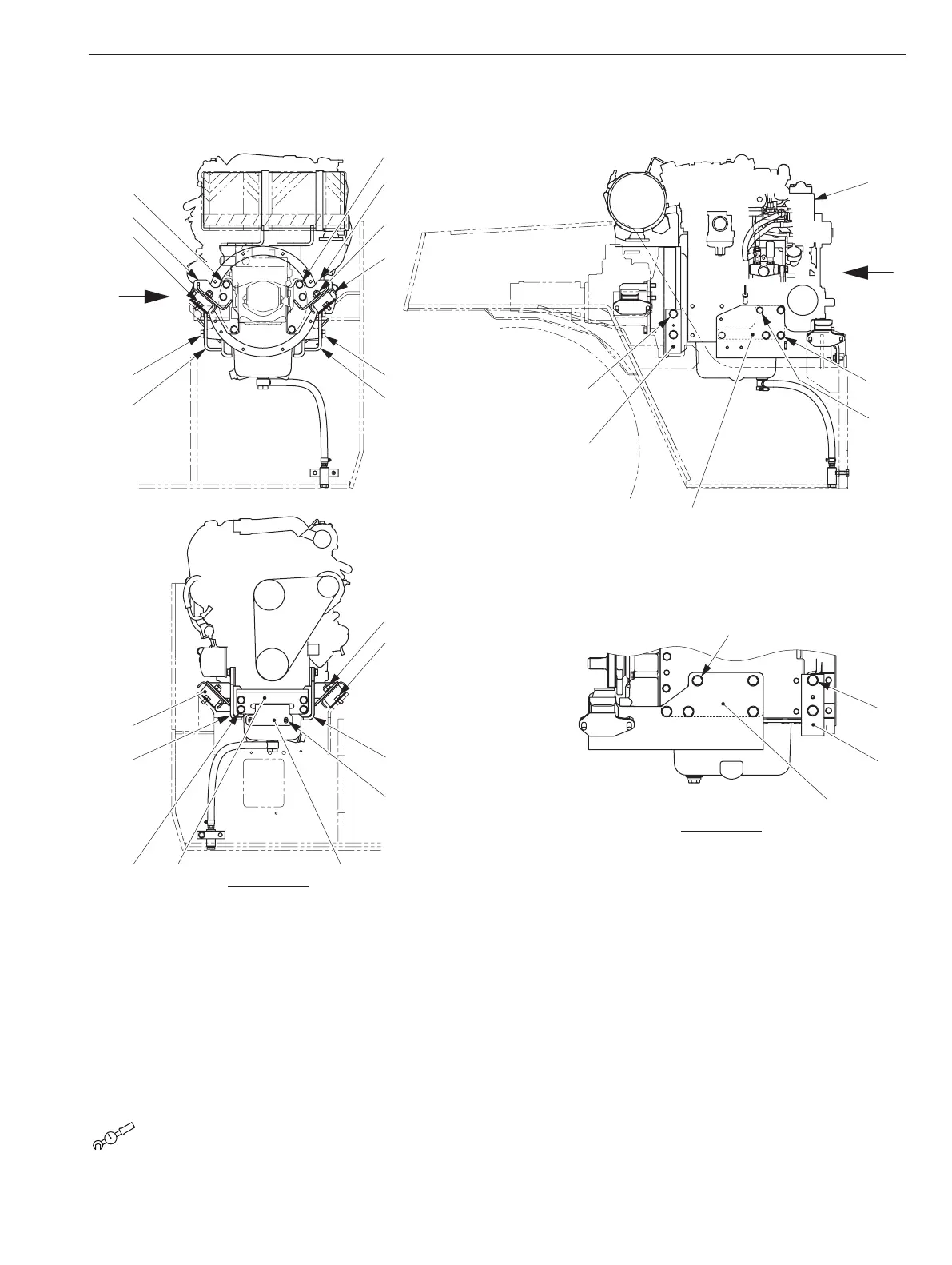

4-1. Engine Mount
0448-01806-0-10620-A
2
11
12
15,16
A
B
3
17
26
6
14
1
4
10
9
5
18
25
19,20
13
5
6
8
7
19,20
15,16
8
7
21
22
23
24
VIEW A
VIEW B
(1) Bolt : M12×30 (10) Bracket (19) Base
(2) Bracket (11) Bolt : M12×30 (20) Bracket
(3) Nut : M12 P=1.25 (12) Engine (21) Bolt : M10×25
(4) Rubber isolator (13) Bolt : M12×35 P=1.25 (22) Stopper
(5) Bolt : M14×30 P=1.25 (14) Bolt : M10×30 P=1.25 (23) Bracket
(6) Bracket (15) Base (24) Bolt : M12×25
(7) Bracket (16) Bracket (25) Rubber isolator
(8) Bolt : M14×30 P=1.25 (17) Nut : M12 P=1.25 (26) Bolt : M12×35 P=1.25
(9) Bolt : M10×20 (18) Bolt : M10×20
N•m
(3) Nut M12 P=1.25 : 88 N·m ( 65 lbf·ft ) (17) Nut M12 P=1.25 : 88 N·m ( 65 lbf·ft )
(13) Bolt M12×35 P=1.25 : 118 N·m ( 87 lbf·ft ) (26) Bolt M12×35 P=1.25 : 118 N·m ( 87 lbf·ft )
(14) Bolt M10×30 P=1.25 : 69 N·m ( 51 lbf·ft )
