Installation
1 Mounting clamps
2 Panel
3 Seal
1
1
2
3
Panel cut-out: 45
+0.6
x 92
+0.8
Mounted depth including terminals: 158 (6.18)
Dimensions in mm (inch)

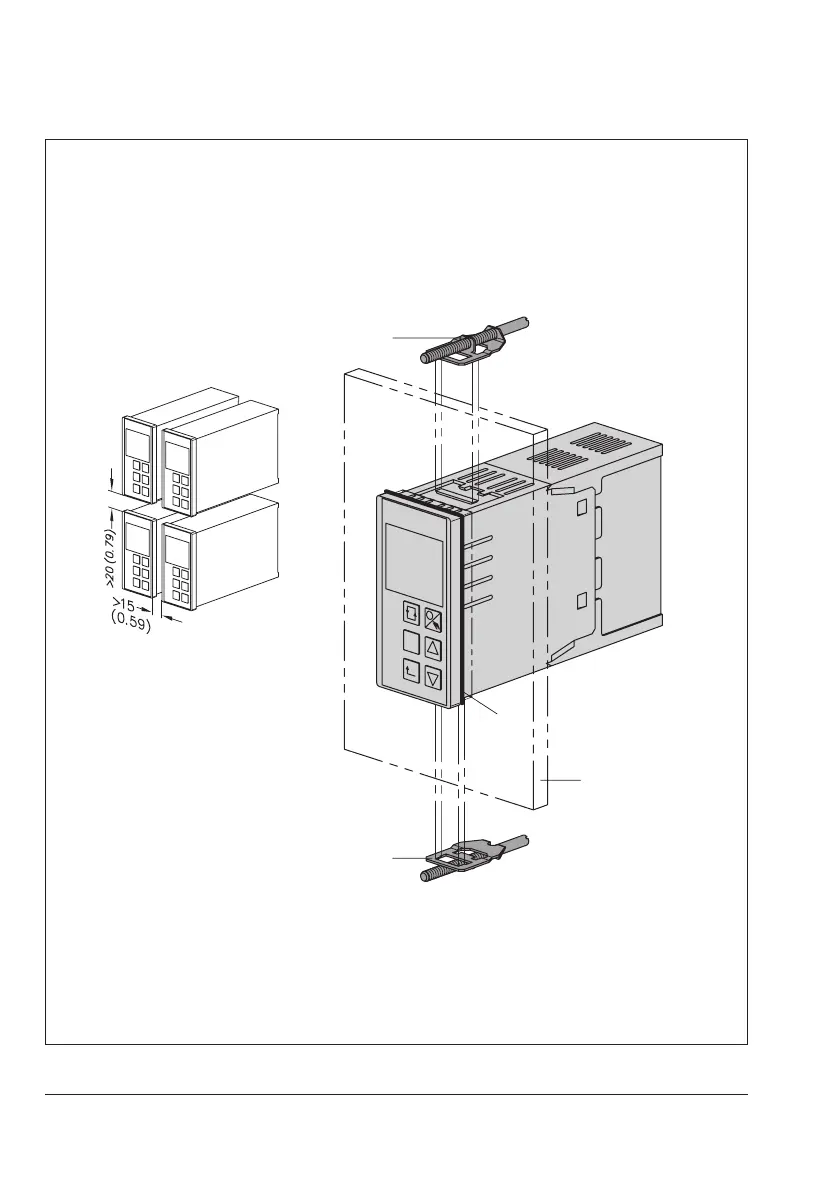

Fig.5-1: Installation
