9-2 EB 6493 EN
Operation
Xd%
W2
WE
L
2
1
L
3
8
5
1
9
11
15
18
17
16
14
7
13
12
10
6
4
2

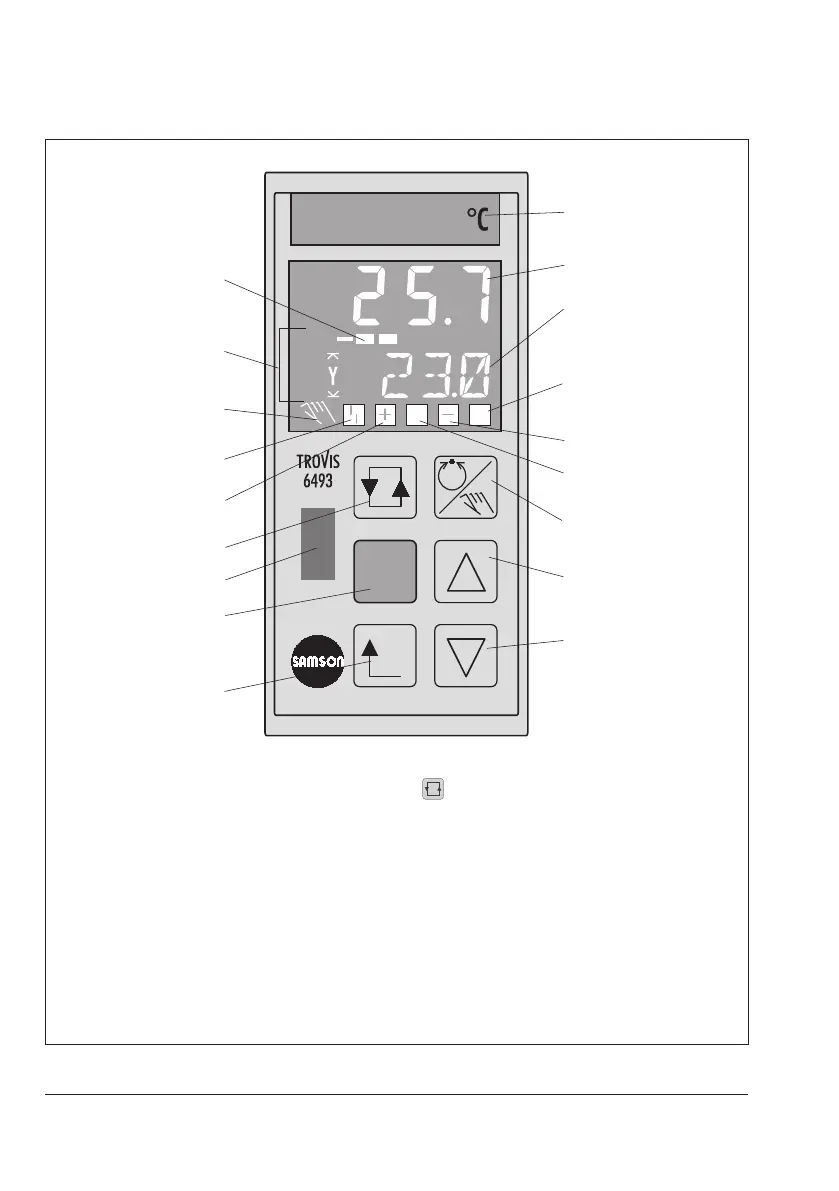

Fig.9-1: Operating keys and display
1 Controlled variable X
2 W, W2, WE, Y or Xd
3 Limit relay L2 active
4 Three-step output –
5 Limit relay L1 active
6 Three-step output +
7 Error message
8 Hand icon
9
After pressing
W,
W2, Y or Xd is displayed
with the value in 2
10 Bar reading of Xd in %
11 Selector key
12 Selector key
13 Manual/automatic key
14 Cursor key (increase,
scroll forwards)
15 Cursor key (decrease,
scroll backwards)
16 Escape key
17 Label (exchangeable)
18 Infrared interface
