10
High
Temperature
Room RUNNING
PID NUMBER
Indicates PID number of
currentlyoperating high
temperature room.
○
11
Low
Temperature
Room RUNNING
PID NUMBER
Indicates PID number of
currentlyoperating low temperature
room.
○
12
CONTROL
MODE
Sets D.DV or D.PV as operation
mode when controls PID.
▶ Initial value is “D.PV”.
H.SP : High temperature room SP
L.SP : Low temperature room SP
H.RDV : High temperature room deviation
L.RDV : Low temperature room deviation
H.RDV deviation PID : Deviation PID applied with H.RDV value
L.RDV deviation PID : Deviation PID applied with L.RDV value

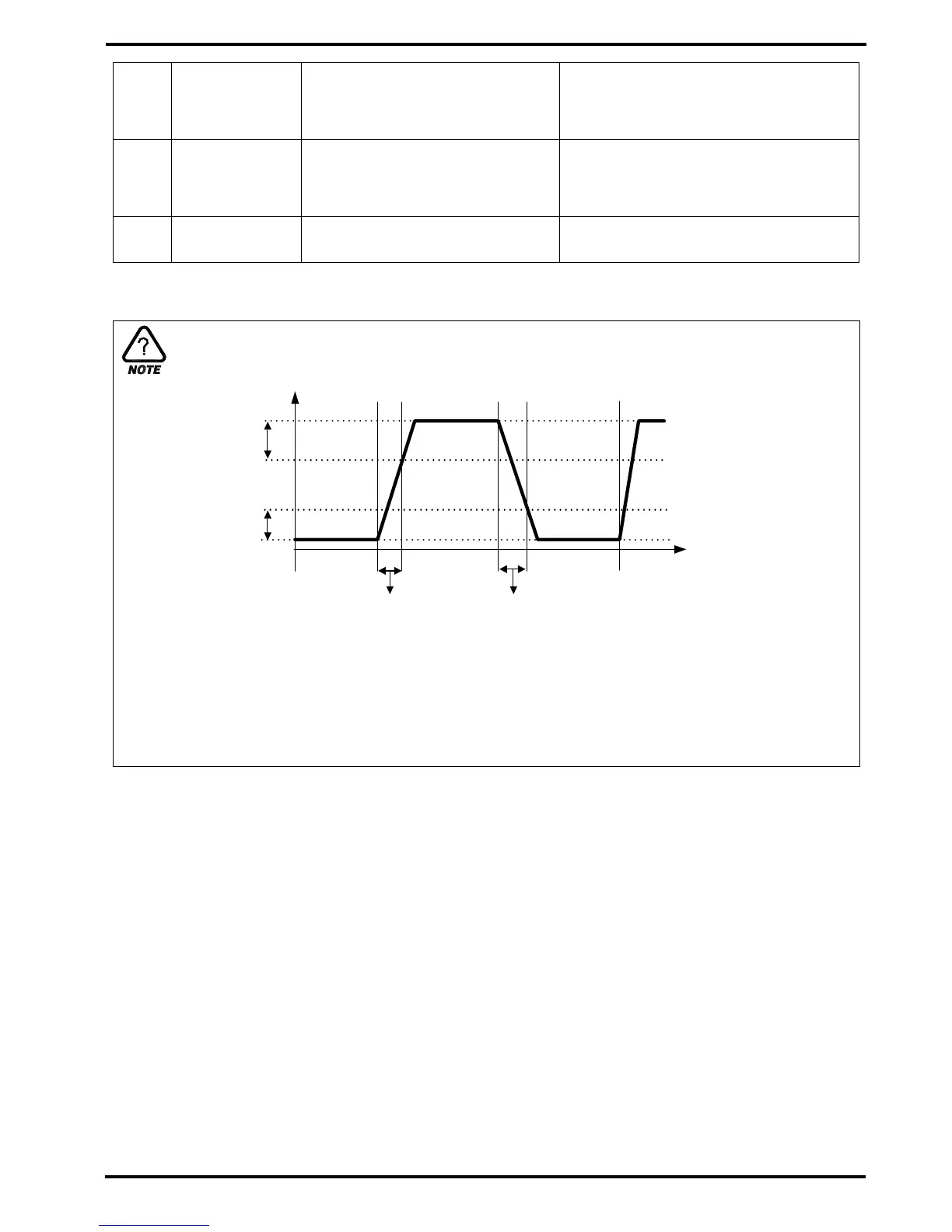

Example of PID Sector Set Screen
H.SP
H.SP – H.RDV
L.SP – L.RDV
L.SP
ZONE PID
ZONE PID
ZONE PID
H.RDV deviationL.RDV deviation
