Sanding STS-752RC - Page 70

69

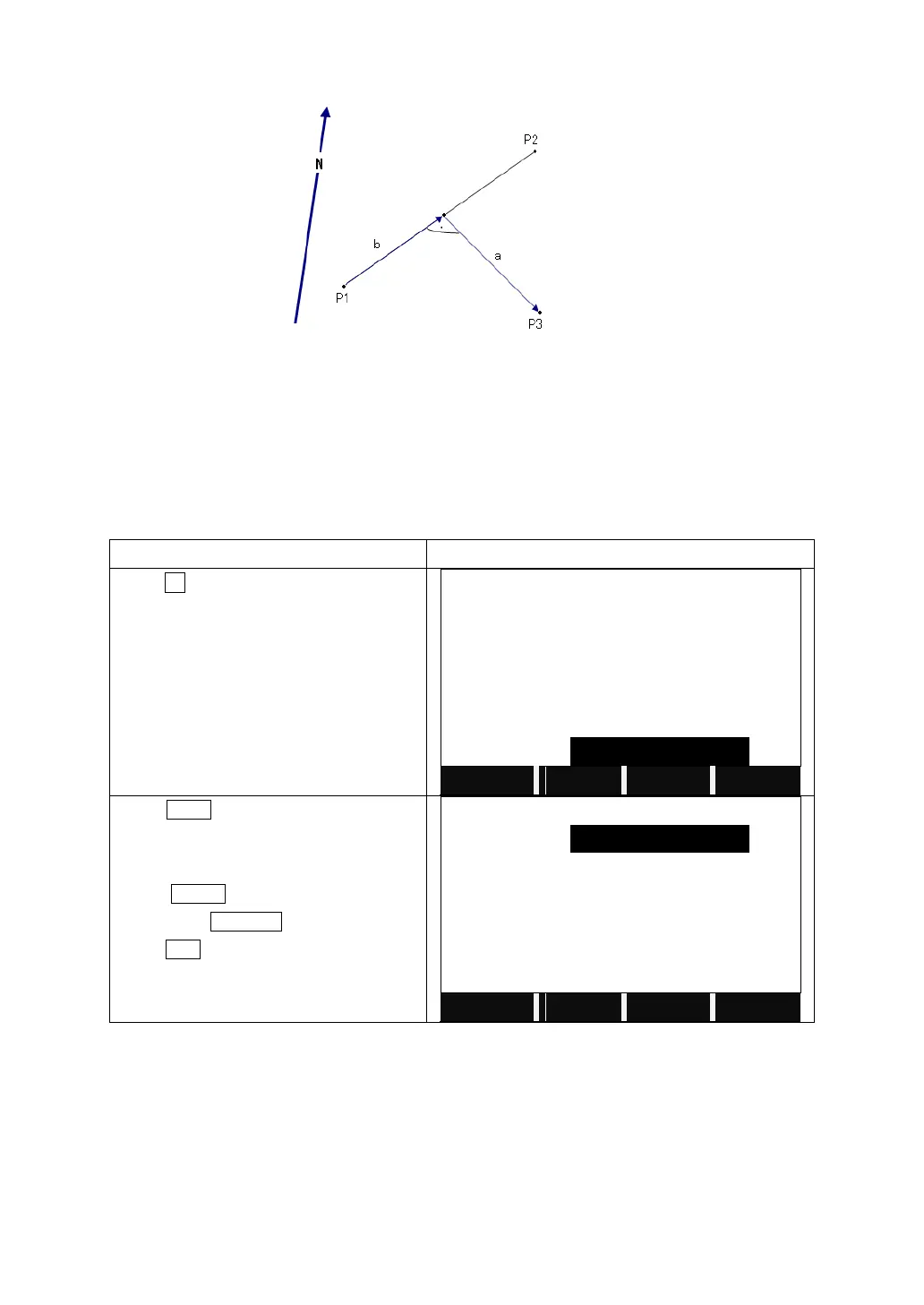

5.7.3.2 Point-Offset
The known data:
P1: Baseline start point
P2: Baseline end point
a: Difference in length/ abscissa (HD)
b: Lateral deviation / ordinate (Offset)
The unknown data:
P3: Lateral point
STEPS
DISPLAY
Press F2 to start Point-Offset.
Enter the known PtID of P1 and P2.
Input the T offset and L offset.
【Point-Offset】
Define Baseline!
Point1
:
20
Point2
:
21
Input TOff&LOff!
Line
:
12.000 m
Offset
:
20.200 m
MEAS
CALC
SEARCH
↓
Press CALC to calculate and display the
result.
Press STAKE to start staking out the
point. Press RECORD to save the result.
Press ESC to start a new COGO.
【COGO New Point】
Nw Pt
:
------
X/N
:
-5.657 m
Y/E
:
22.627 m
STAKE
RECORD
