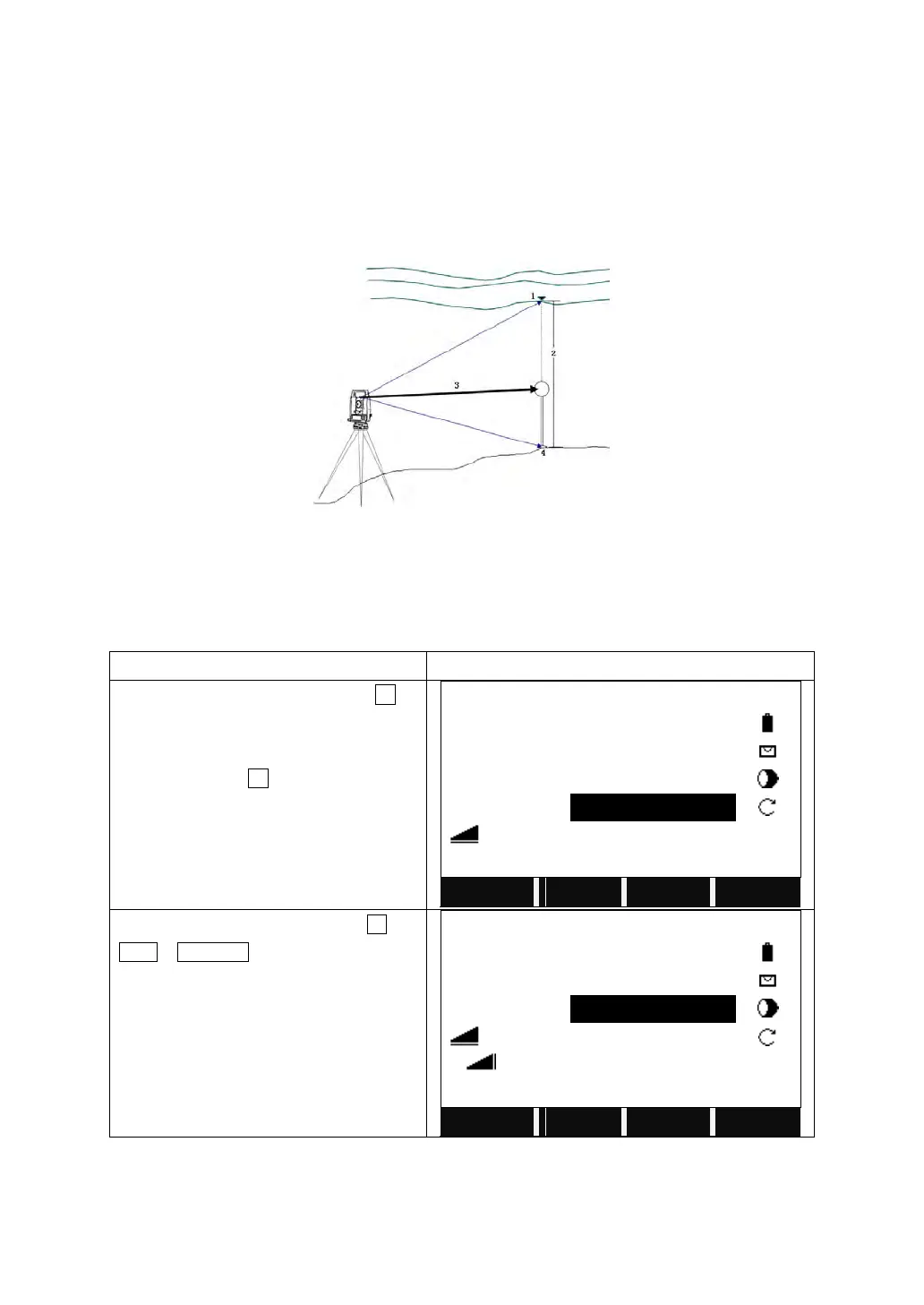

5.10 REMOTE HEIGHT MEASUREMENT (REM)
If the prism cannot be put at the point to be measured, user can firstly collimate
base prism below it and measure the horizontal distance. Then collimate the
remote point to calculate the vertical difference.
1. Target point (remote point)
2. Height difference
3. Slope distance
4. Base point
If the prism height is known(e.g. prism height (h) =1.500m)
STEPS
DISPLAY
On Page 2/3 of Programs, press F3 to
start Remote Height.
After setting the job, station and
orientation, press F4 to start.
Input the PtID of Base Point, its prism
height.
【Base Point】
Sight Meas Base Pt!
BasePt
:
10
R.HT
:
1.500 m
:
----.--- m
Ⅰ
Mem.
All
DIST
RECORD
↓
Collimate the prism and press All (or
DIST + RECORD) to start measurement.
The base point is confirmed.
Then rotate the telescope to shoot the
target point, the remote height will be
calculated and displayed.
【Remote Point】
Sight Meas Rem Pt!
BasePt
:
10
Rem.Pt
:
11
:
1.758 m
△
:
3.051 m
Ⅰ
H/Z
:
2.421 m
Mem.
BasePt
SAVE
