Sanding STS-752RC - AREA MEASUREMENT (PLANE)

73
Input the PtID of end point A and its prism
height.
【NewPt2】 1/2
NewPt1
:
1
NewPt2
:
2
R.HT
:
1.500 m
:
----.--- m
:
----.--- m
Ⅰ
:
----.--- m
Mem.
All
SEARCH
LIST
↓
It displays the Tie Distance result.
△ : HD between Point A and Point B.
△ : SD between Point A and Point B.
△ : VD between Point A and Point B.
Grade: the slope between Point A and
Point B.
Press PAGE to display the azimuth
between Point A and Point B.
【Tie Distance】 1/2 ▼
Point1
:
1
Point 2
:
2
Grade
:
-49.6%
△
:
0.663 m
△
:
0.741 m
△
:
-0.329 m
NewPt1
NewPt2
RADIAL
Soft keys – radial method:
[F1]([NewPt1]): Determine new central point.
[F2]([NewPt2]): Determine new radial point.
[F4]([POLY]): Switch to polygonal method.

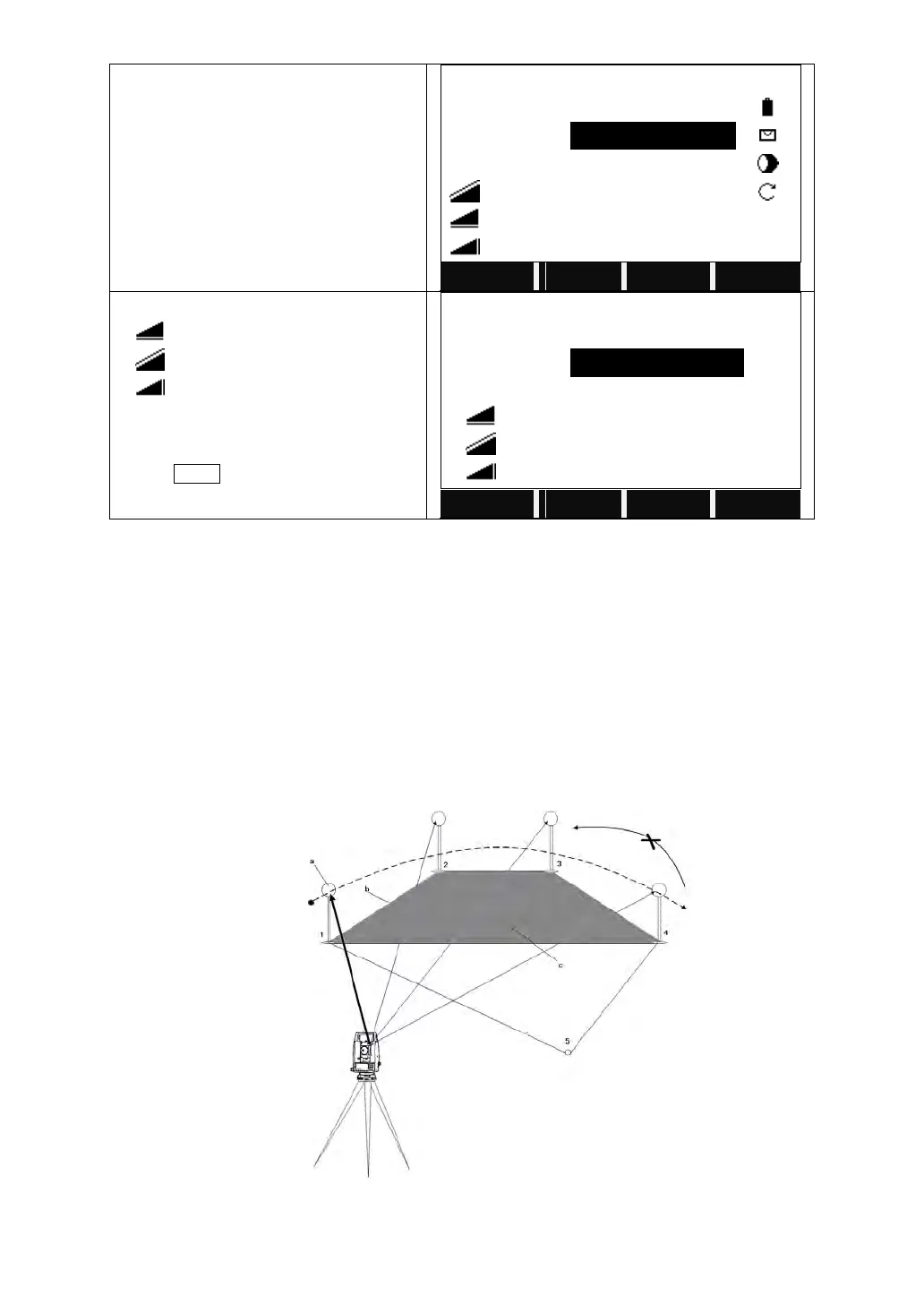

5.9 AREA MEASUREMENT (PLANE)
The application program Area is used to calculate online areas of a number of
points connected by straights. The target points have to be measured, selected
from memory or entered manually via keyboard.
