Sanding STS-752RC - TIE DISTANCE; Radial (A-B, A-C)

72
It displays the Tie Distance result.
△ : HD between Point A and Point B.
△ : SD between Point A and Point B.
△ : VD between Point A and Point B.
Grade: the slope between Point A and
Point b.
Press PAGE to display the azimuth
between Point A and Point B.
【Tie Distance】 1/2 ▼
Point1
:
1
Point 2
:
2
Grade
:
-49.6%
△
:
0.663 m
△
:
0.741 m
△
:
-0.329 m
NewPt1
NewPt2
RADIAL
Soft keys – polygonal method:
[F1]([NewPt1]): An additional missing line is computed. Program starts again (at
point 1).
[F2]([New Pt2]): Point 2 is set as starting point of a new missing line. New point
(Pt2) must be measured.
[F4]([RADIAL])：Switch to radial method.

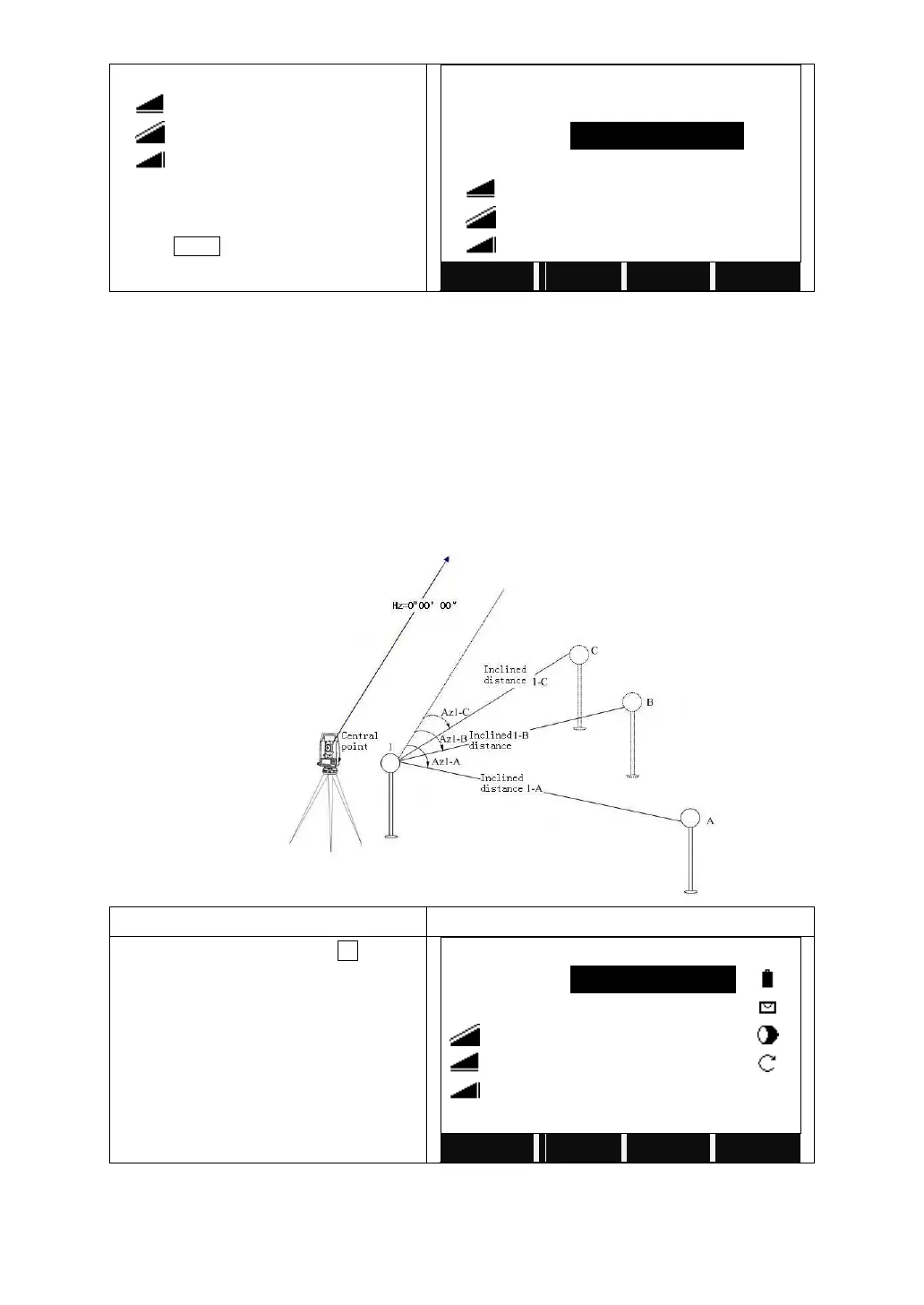

5.8.2 Radial (A-B, A-C)
STEPS
DISPLAY
In Tie Distance Menu, press F2 to start
Radial (A-B, A-C).
Input the PtID of the central point and its
prism height.
【NewPt1】 1/2
NewPt1
:
1
R.HT
:
1.500 m
:
----.--- m
:
----.--- m
:
----.--- m
Ⅰ
Mem.
All
SEARCH
LIST
↓
