94
It returns to the main menu of defining
alignment. It displays the end chainage
and its azimuth.
【HZ Alignment Type】
Chain.
:
1048.420 m
AZ
:
25°00′00”
LINE
ARC
SPRIAL
POINT
Curve

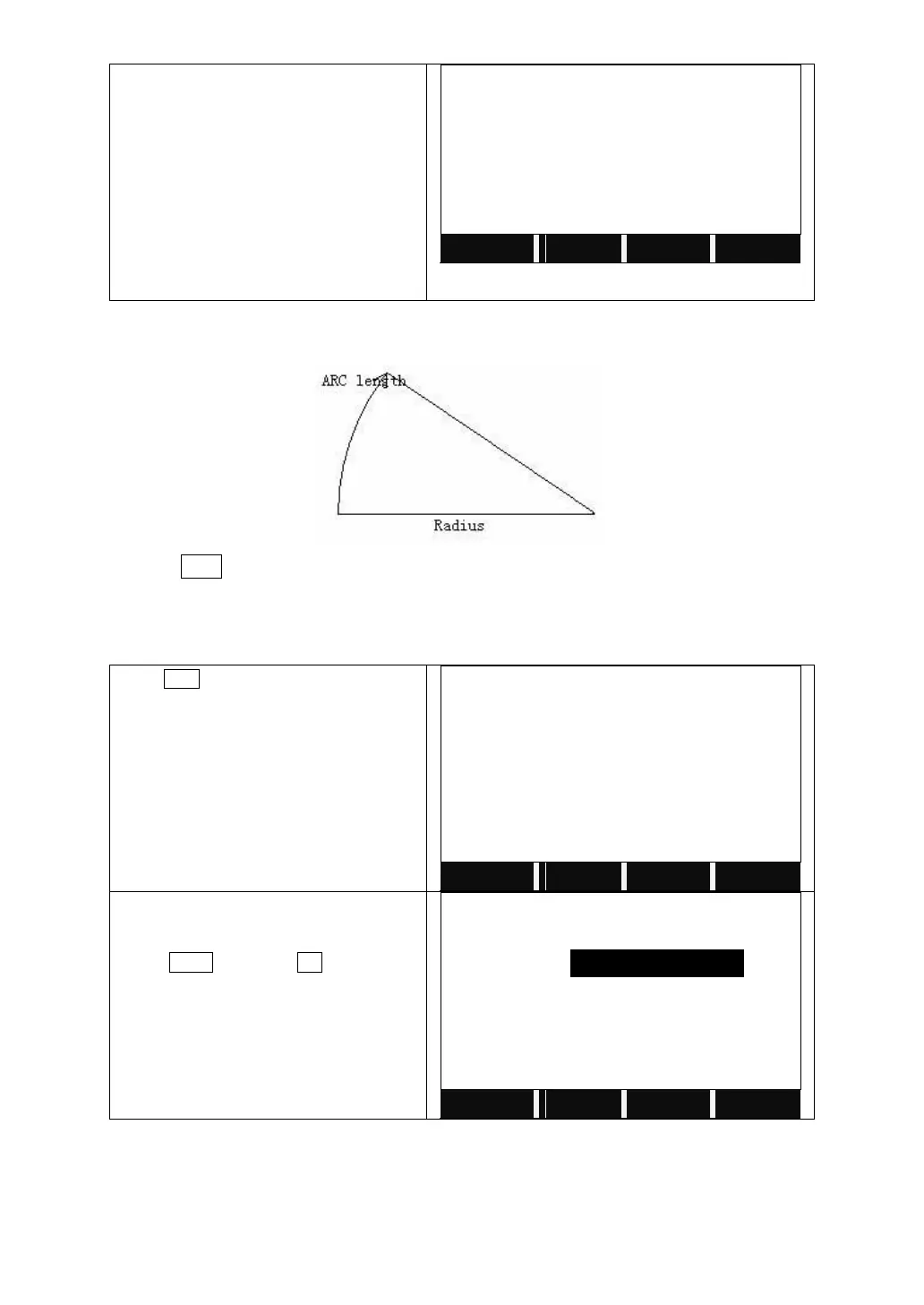

Press ARC in “Hz Alignment type” menu to define the curve. A curve consists of
arc length and radius. The rule of radius value: along the forward direction of the
curve. When the curve turns right, the radius value is positive; while the curve
turns to left, the radius value is minus. The arc length can not be negative.
Press ARC to start to define the arc.
【HZ Alignment Type】
Chain.
:
1048.420 m
AZ
:
25°00′00”
LINE
ARC
SPRIAL
POINT
Input the radius and length of the arc.
Press NEXT and then OK to save the
edited alignment data.
【Define HZ AL】 3/2
Type
:
ARC
Radius
:
----.--- m
Arclen
:
----.--- m
PREV
NEXT
SEARCH
↓
