5-2
MPM-210 Operation Manual

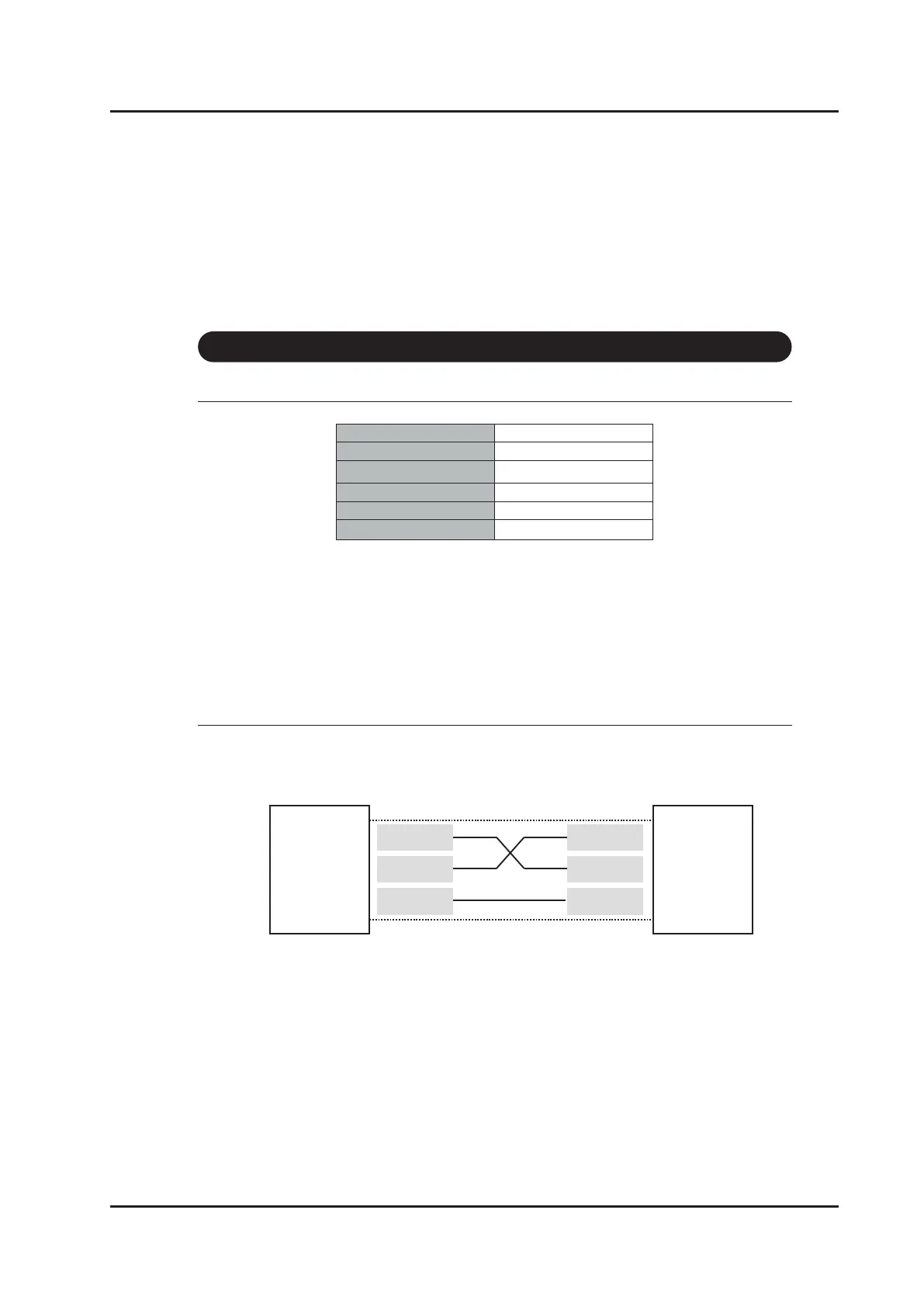

5-3 RS-232 Communication
When the echo is valid, sets it by the “ECHO” command. Refer to the section “5.5.2”
for the detail. When the MPM-210 receives the command, the terminator is recognized
the <LF> and when the MPM-210 sends the command, the terminator is the
<CR><LF>.
The PC and & the MPM-210 are connected each other by D-SUB 9 pin female serial
cable. Methods of Serial cable pin connection is as follows. Uses the cross cable.
■ 5-3-1 RS-232 Communication Set up
Baud Rate
115200
Data Bits
8 bits
Parity Bit
None
Stop Bit
1
Terminator
LF
Echo
False (Default)
■ 5-3-2 RS-232 Connection
MPM-200 PC
RxD (2)
TxD (3)
GND (5)
RxD (2)
TxD (3)
GND (5)
MPM-210
