Santec MPM-210 - Trigger Input;Output; 6-1 Trigger Input

Multi-Port Optical Power Meter MPM-210
6-1
Trigger Input/Output
6
Trigger Output Port outputs each trigger after about 22nsec since External Trigger
Signal inputs. Output signal will have electrical characteristic as 3.3v for High and 0v
for Low.
Measurement External Trigger Timing
6-1 Trigger Input
6-2 Trigger Output

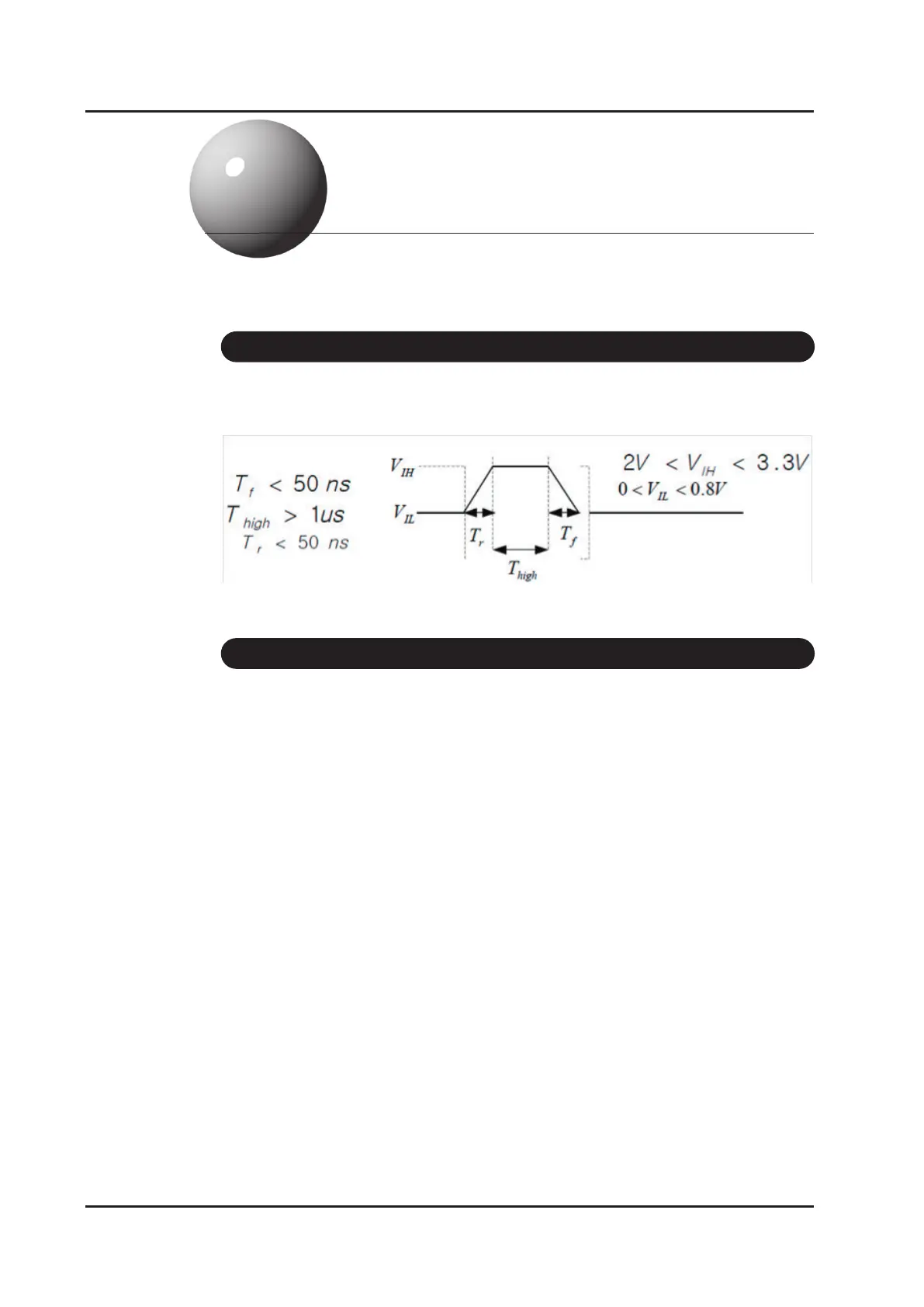

Next picture explains about electrical characteristic of External Trigger Signal that
enters into Trigger Input Port.
