■ 5-6-5 “FREERUN” measurement mode (CEM Mode)

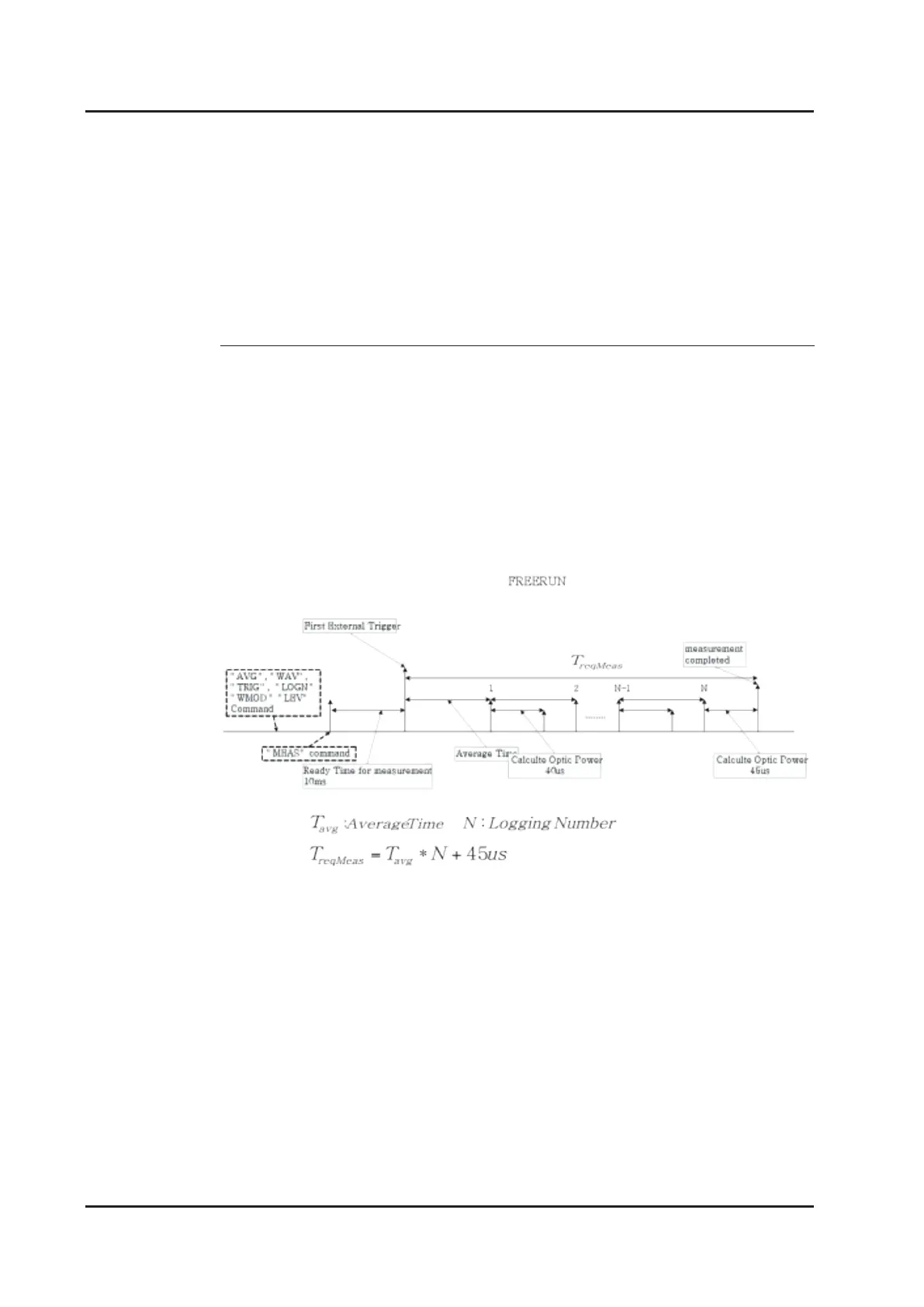

FREERUN measurement time chart
“FREERUN” measurement mode measures as following condition.
•
It starts measurement after recognizing First External Trigger.
•
Measurement Interval: Time that is set using “AVG”
•
Measurement Number: Number that is set using “LOGN”
•
Measurement Wavelength: Wavelength that is set using “WAV”.
•
External Trigger Mode: Set external trigger using “TRIG 1”.
•
TIA GAIN LEVEL : Level that is set using “LEV”
•
Measurement mode: Set measurement mode with “WMOD”.
•
Above conditions should be set before running “MEAS”.
