-14-
This projector provides a cabinet front cover on the cabinet top to enhance the service maintenance. This enables
service personnel to align the optical adjustment or replace the optical parts without disassembly the cabinet top.

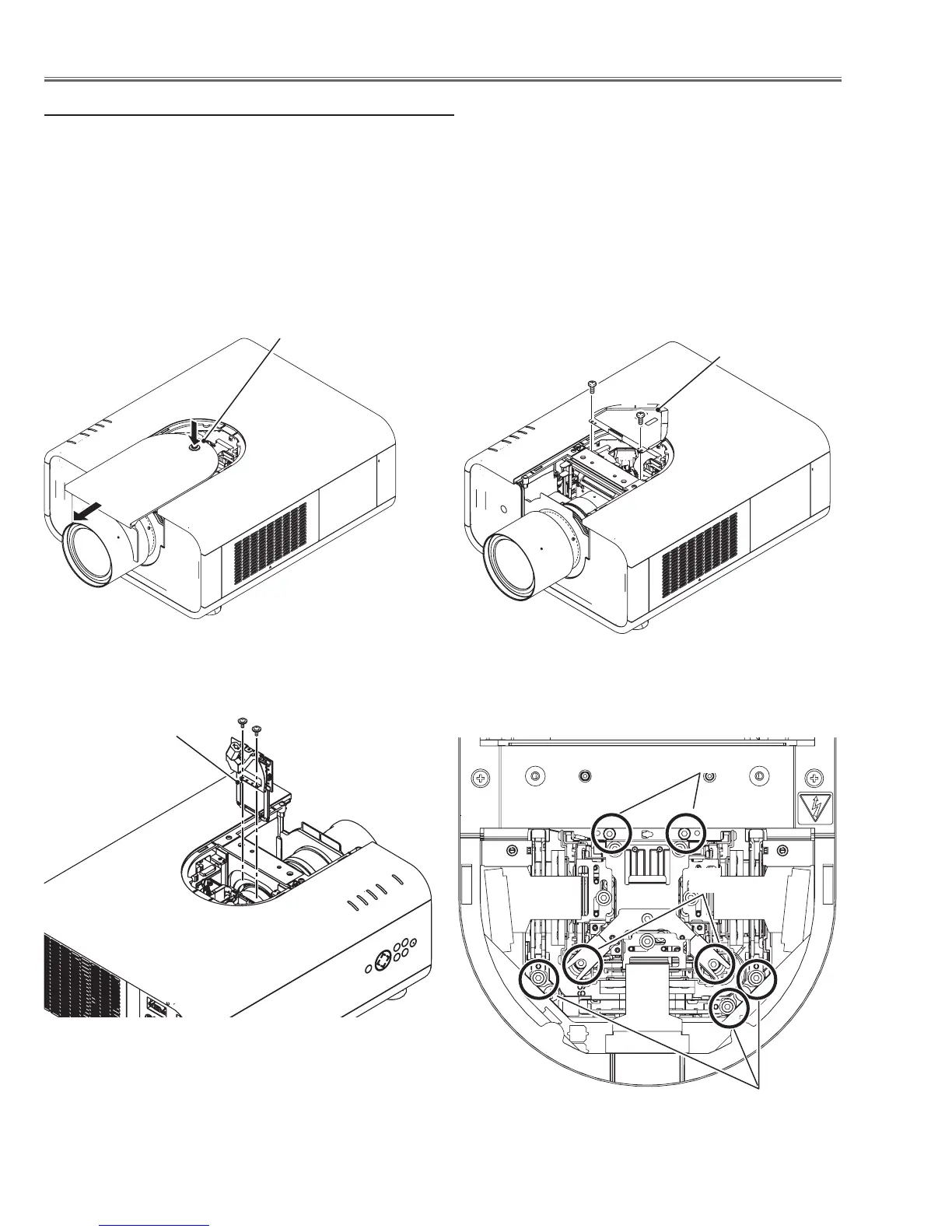

1. Press and hold the release button on the cabinet front cover and slide the cover frontward to take it off (Fig. 1).
2. Remove 2 screws A on the prism shield cover and take prism shield cover off (Fig. 2).
3. Remove 2 screws B and take the shutter assembly off (Fig. 3).
4. Loosen 4 screws C and take the LCD Panel/Prism assy upward off.
5. Remove 1 screw D on each stopper of the polarized glass assy and take the optical filter assy upward off.
See chapter "Optical Parts Disassembly" for further information of optical parts disassembly.
Maintenance
Quick maintenance
Release button
Prism shield cover
A
A
C
C
D
Fig. 3
Fig. 4
B
B
Shutter assembly
Fig. 1 Fig. 2
To Next Page
