-25-
Mechanical Disassembly
9 Cabinet front removal

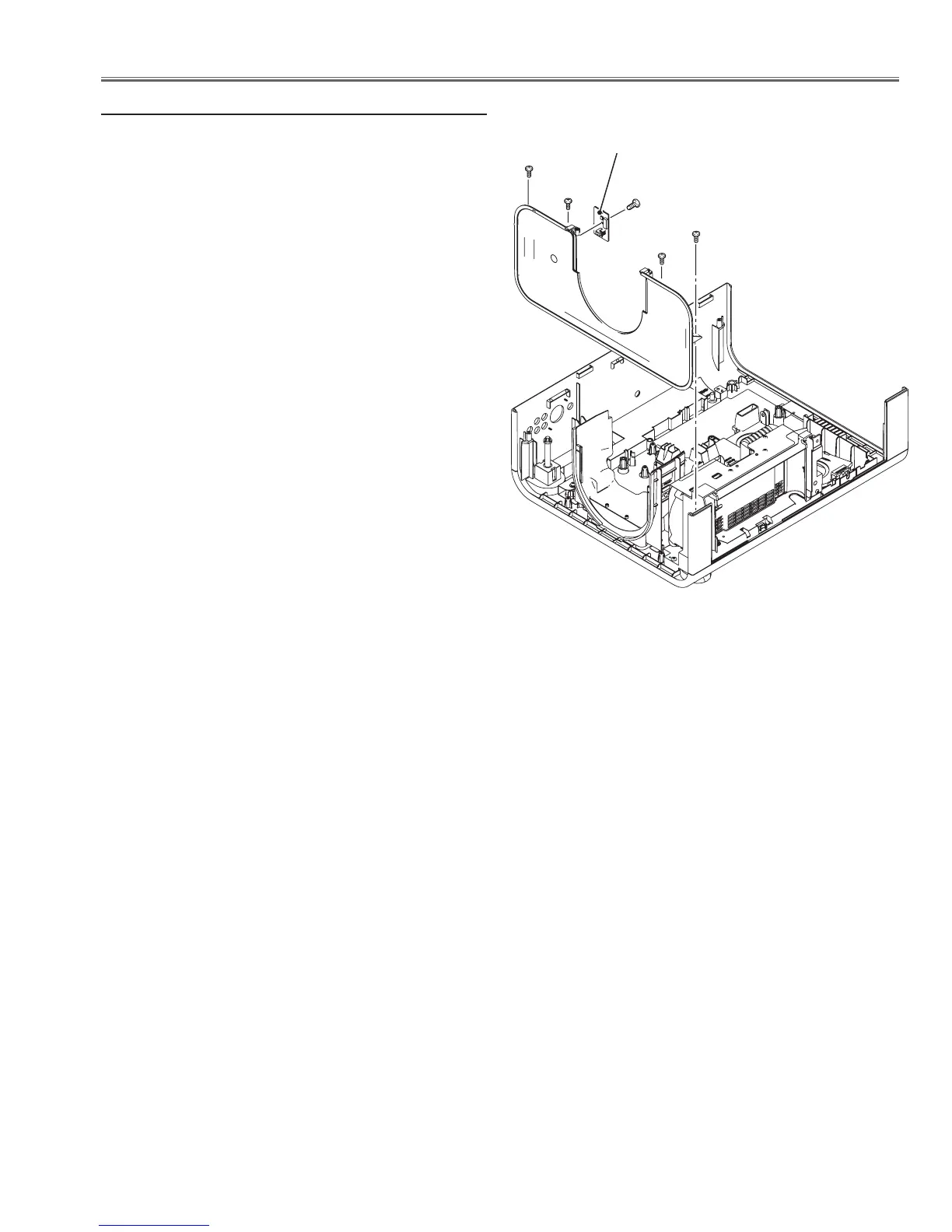

1 Remove 4 screws A (T3x8) and take the cabinet front
upward off.
2 Remove 1 screw B (T3x8) and take the RC front board
off.
A
A
A
A
B
RC front board
