Sanyo PLC-HP7000L Service Manual

-26-
Mechanical Disassembly

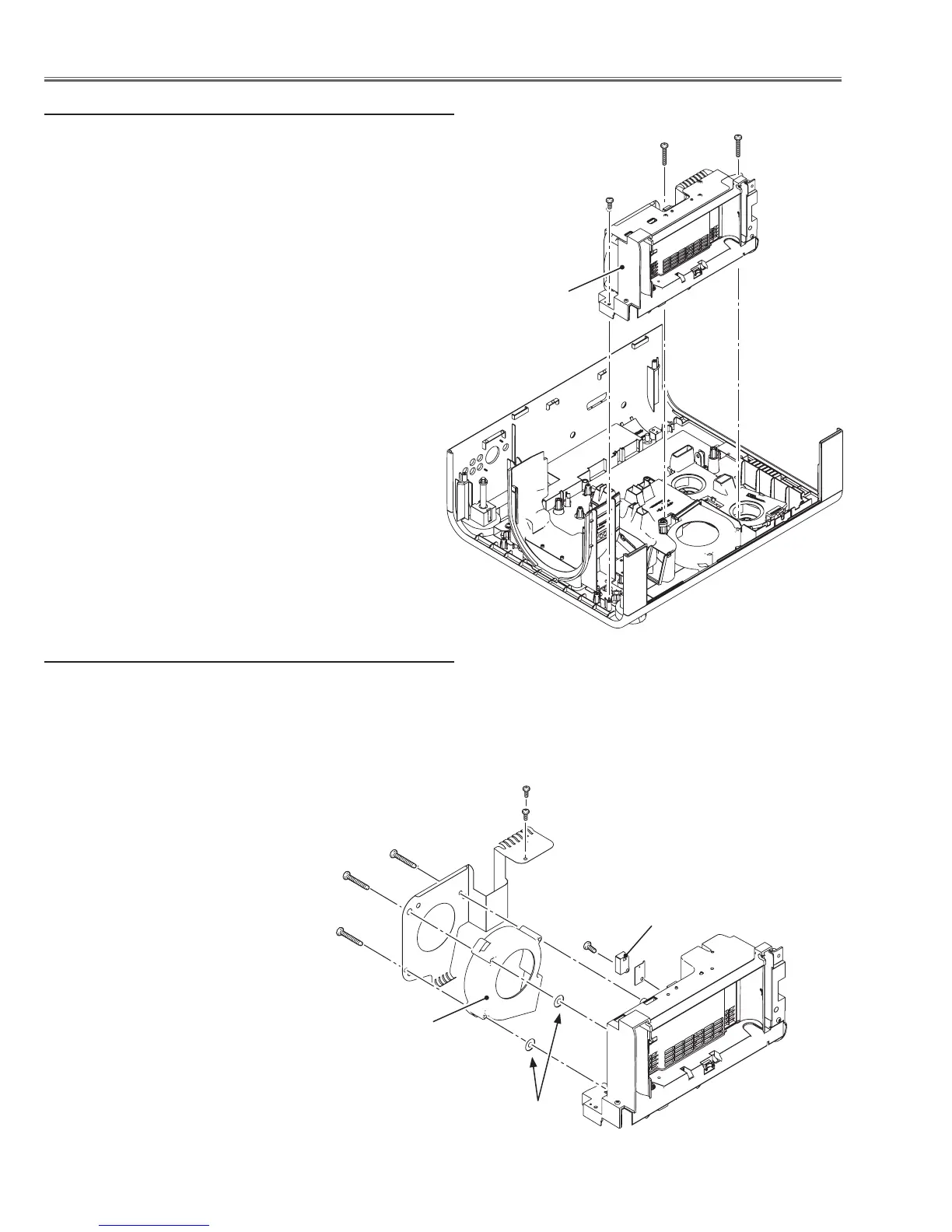

10 Filter box removal
1 Remove 1 screws A (T3x8), 2 screws B (T4x40) and take
filter box upward off.
10-1 Filter box and fan (FN901) disassembly-1
1 Remove 2 screws C (T3x8), 3 screws D (T4x35), and take
fan (FN901) and holder off.
2 Remove 1 screw E (T3x14) and take the wind sensor
(S901) off.
A
Filter box
B
B
D
D
D
E
FN901
S901
C
C
Washers
