Sanyo PLC-HP7000L Service Manual

-21-

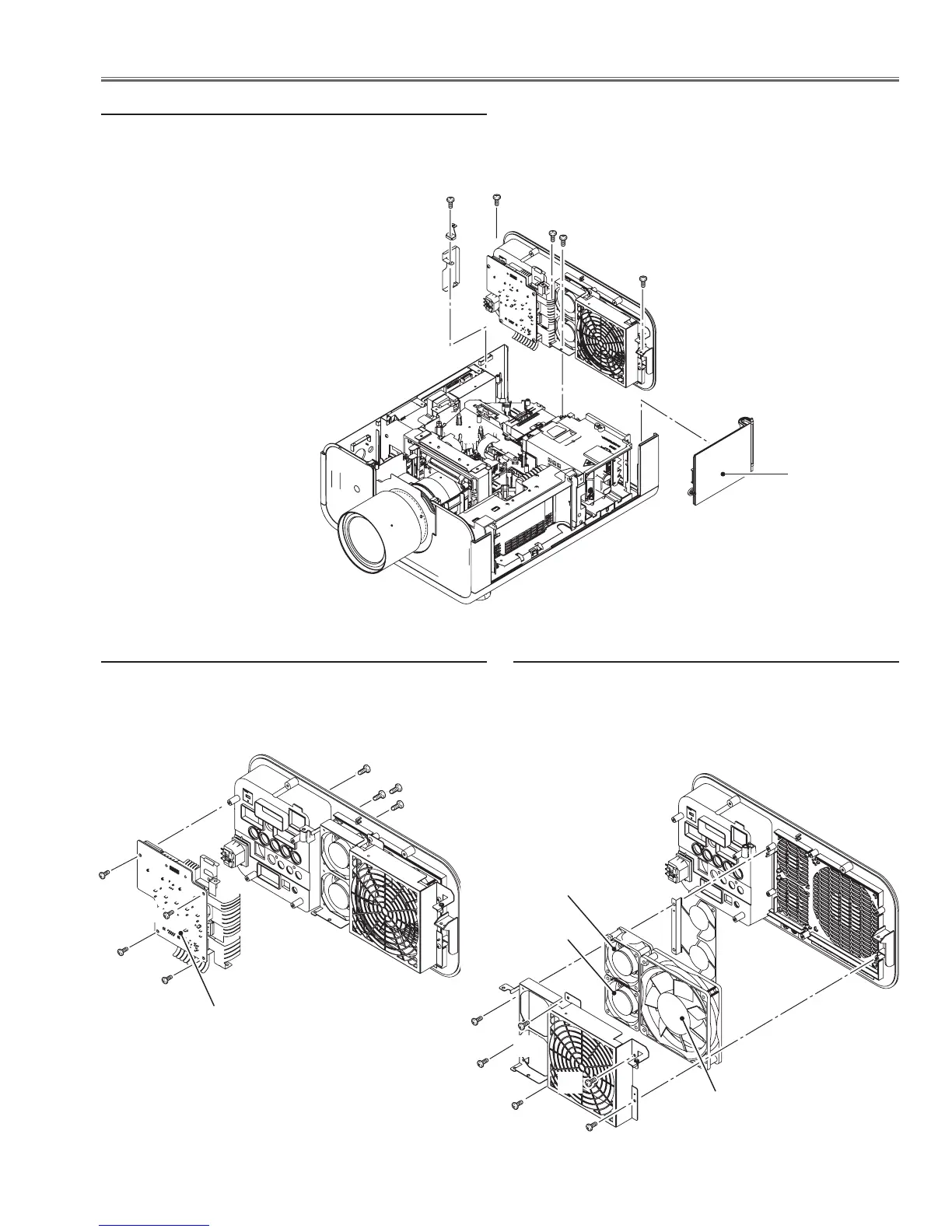

Mechanical Disassembly
5 Cabinet back ass’y removal
1 Remove 3 screws A (T3x8), 1 screw B (M3x6) and 1
screw C (M3x6) and take the cabinet back ass’y up-
ward off.
5-1 AV board removal
1 Remove 4 screws D (T3x8) and 4 screws E (T3x10-
black) and take the AV board off.
5-2 Fans (FN904, FN905, FN906) removal
1 Remove 6 screws F (T3x8) and take the fans (FN904,
FN905, FN906) off.
Lamp cover
A
A
B
A
D
E
F
AV board
FN904
FN905
FN906
D
D
D
C
F
F
F
F
F
