Sanyo PLC-HP7000L Service Manual

-18-
Mechanical Disassembly
A
Fig. 1-2

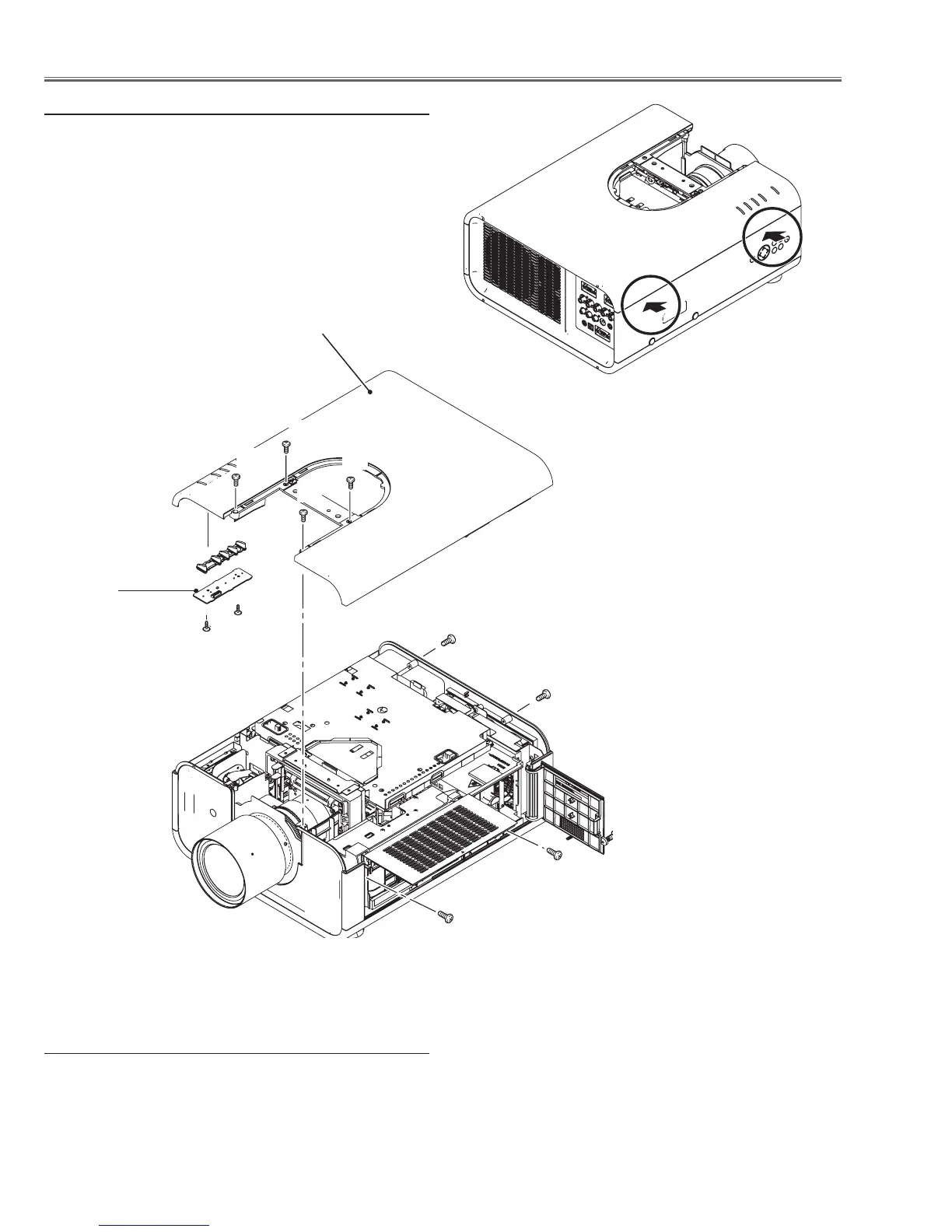

2 Cabinet top removal
1 Open the filter cover and remove 1 screw A (M3x8).
2 Remove 1 screw B (M3x8) and open the lamp cover
and remove 1 screw C (M3x8).
3 Remove 4 screws D (M3x8) on the cabinet top and 2
screws E (M3x8) on the cabinet back.
4 Release the hooks by pressing the side part of cabinet
bottom indicated with the arrows and take the cabinet
top off.
B
D
D D
D
E
E
F
F
Cabinet top
LED board
Press here to unhook
2-1 LED board removal
1 Remove 2 screws F (T3x8) and take the LED board
and LED holder off.
C
