Sanyo PLC-HP7000L Service Manual

-24-
Mechanical Disassembly

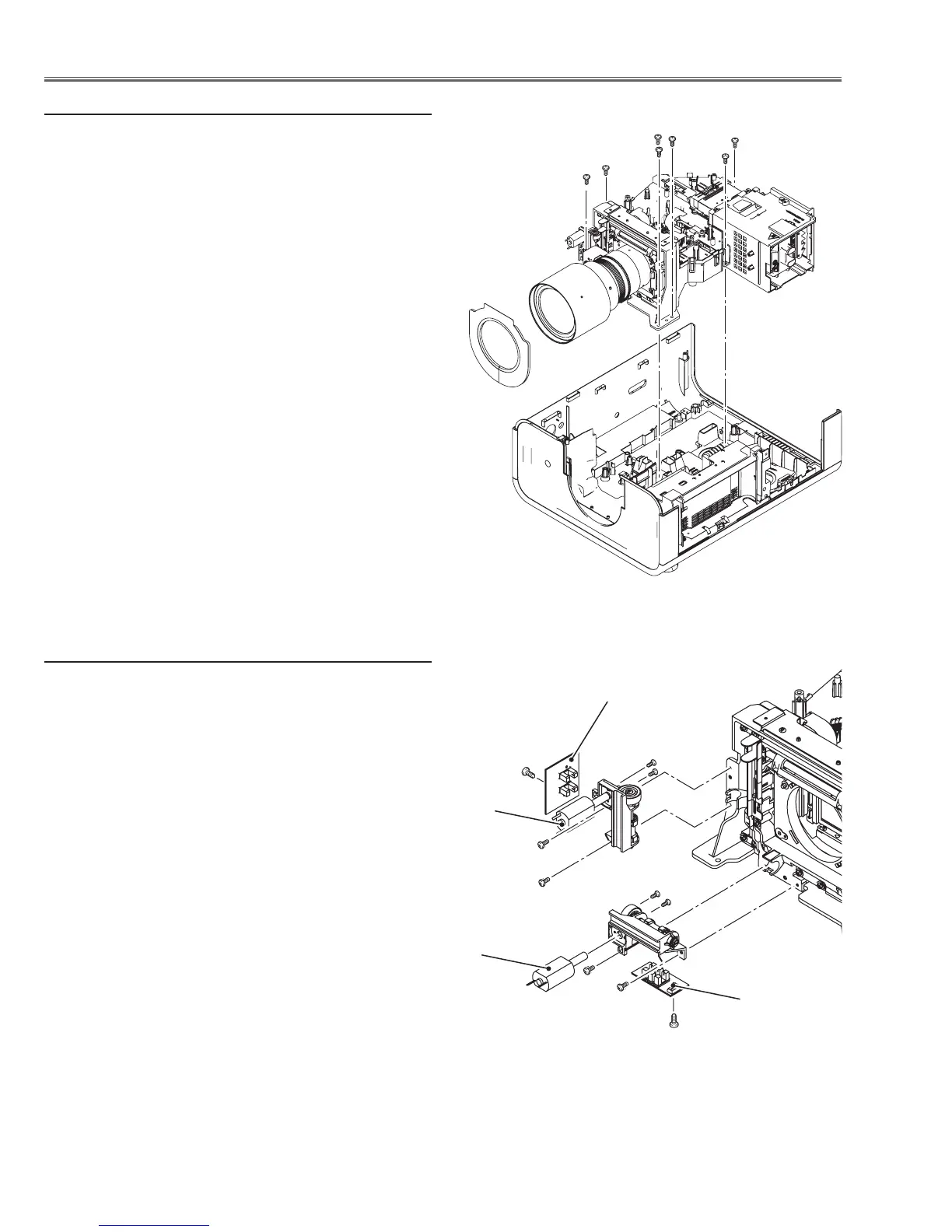

8 Optical unit removal
1 Remove 7 screws A (T4x16), disconnect ballast socket
and take the optical unit upward off.
8-1 Lens shift motor ass’y removal
1 Remove 2 screws B (M3x6) and take the lens shift mo-
tor ass’y off.
2 Remove 1 screw C (T3x6) and take the lens shift sen-
sor board off.
3 Remove 2 screws D (T2x4) and take the lens shift mo-
tor off
Lens shift motor
B
B
B
B
C
C
D
D
Lens shift motor
Sensor board
Sensor board
A
A
A
A
A
A
A
