Sanyo PLC-HP7000L Service Manual

-28-
Mechanical Disassembly

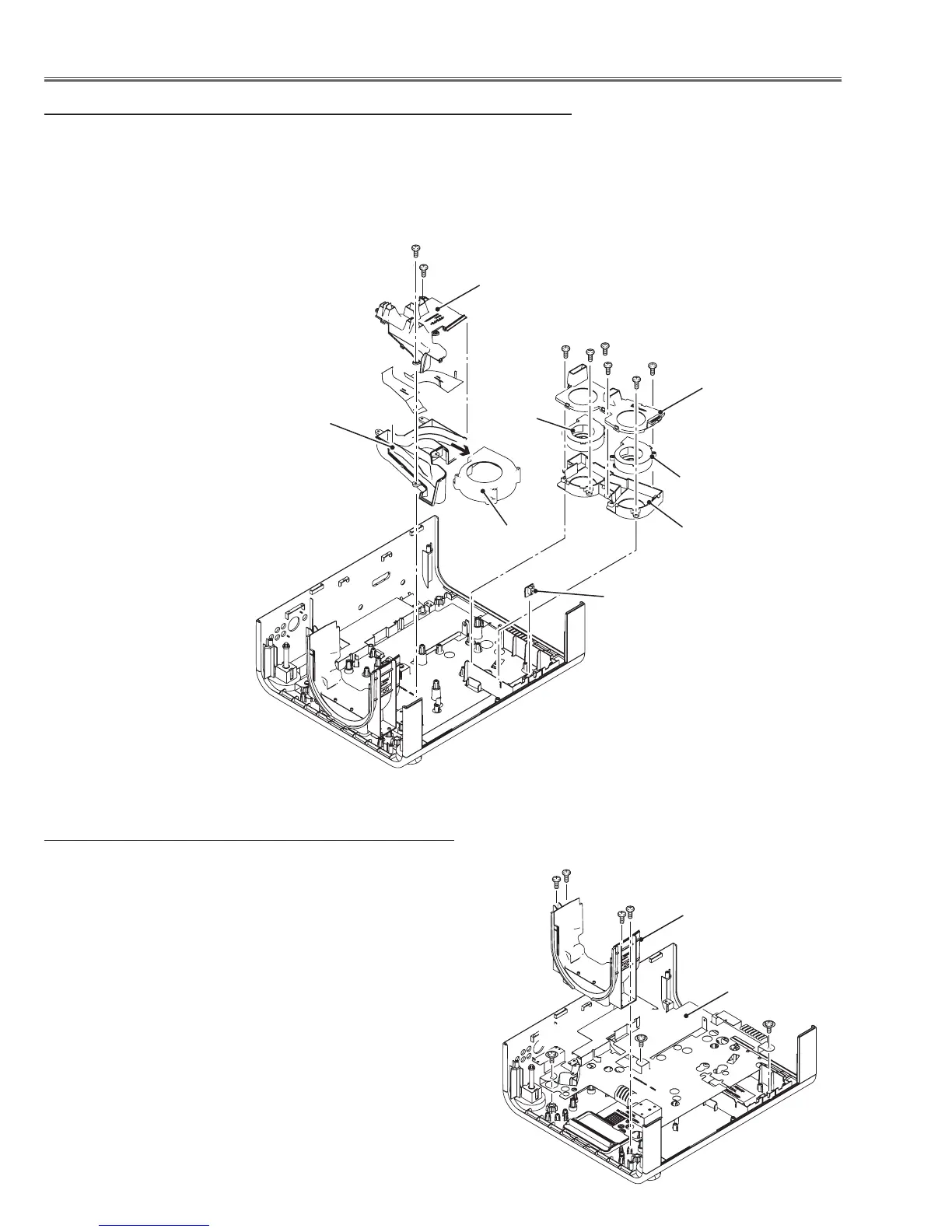

11 Fans (FN902, FN903, FN908) and duct removal
1 Remove fan (FN902) upward off.
2 Remove 2 screws A (T3x8) and take the duct top (LCD) upward off.
3 Remove 6 screws B (T3x8) and take the duct (PBS) assy upward off and
remove fans (FN908 and FN903) off.
4 Remove the lamp cover switch board off.
B
FN902
A
A
B
FN903
Duct top (PBS)
Lamp cover
switch board
FN908
Duct top
(LCD)
Duct bottom (PBS)
B
B
Duct bottom
(LCD)
12 Lens shift cover and shield base removal
1 Remove 4 screws A (T3x8) to remove the lens shift
cover.
2 Remove 3 screws B (T4x8) to remove the shield base from
the cabinet bottom.
A
A
B
B
B
Lens shift cover
Shield base
