-20-
Mechanical Disassembly

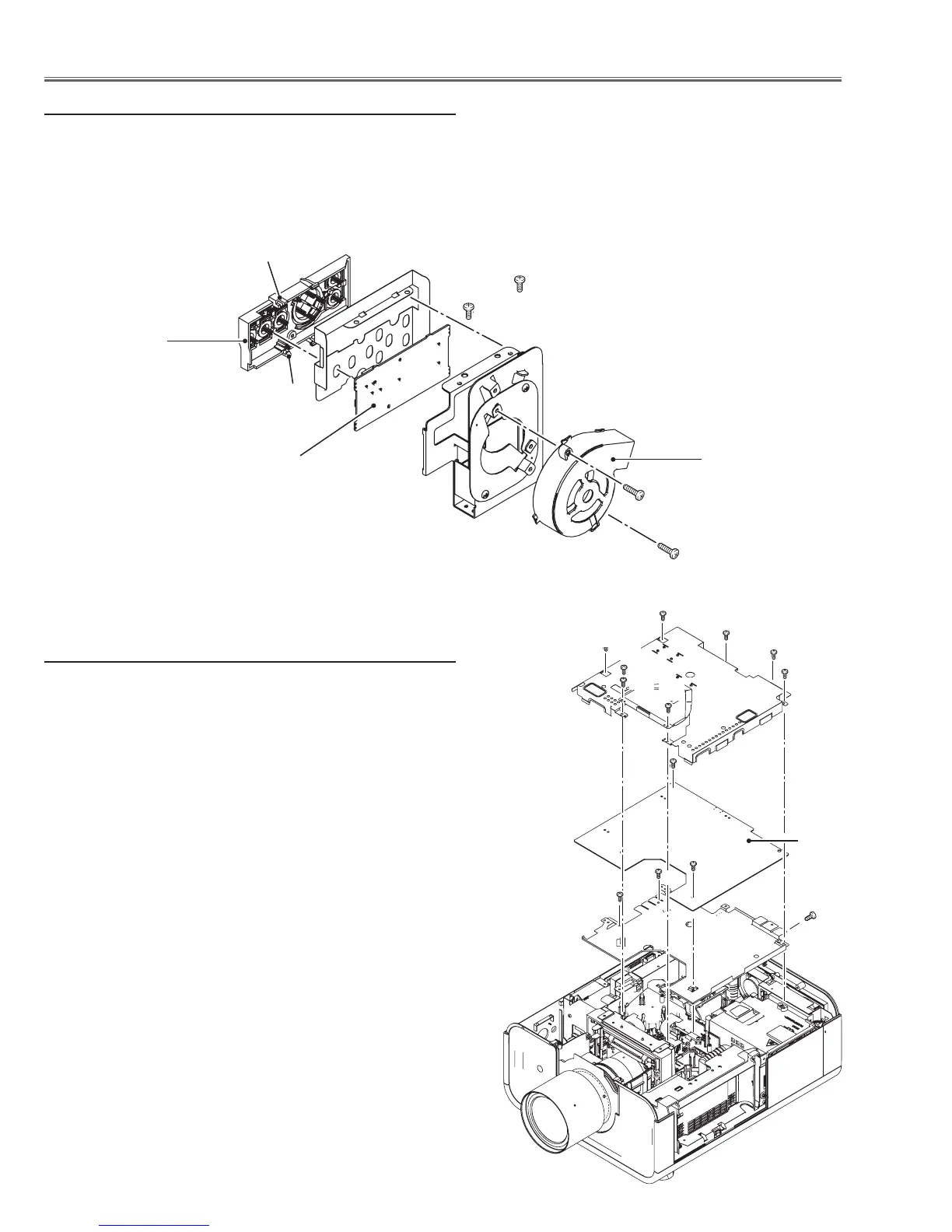

3-1 Control board and fan (FN907) disassembly
1 Remove 2 screws B (M3x6) and take the control board/
button holder off
2 Unhook 2 hooks C on the button holder and take the con-
trol board off.
3 Remove 2 screws D (M3x10) and take fan (FN907) off.
4 Main board removal
1 Remove 2 screws A (M3x6) and take the prism shield
cover top off.
2 Remove 6 screws B (M3x6) and take the main shield cover
top off.
3 Remove 2 screws C (M3x6) and 1 screw D (M3x6) and
take the main board off.
4 Remove 2 screws E (M3x6) and take the main shield cover
bottom off.
B
B
D
C
C
Control buttons
Control board
FN907
D
A
C
A
B
B
B
B
B
E
E
B
C
D
Main
board
