-31-
Optical Parts Disassembly

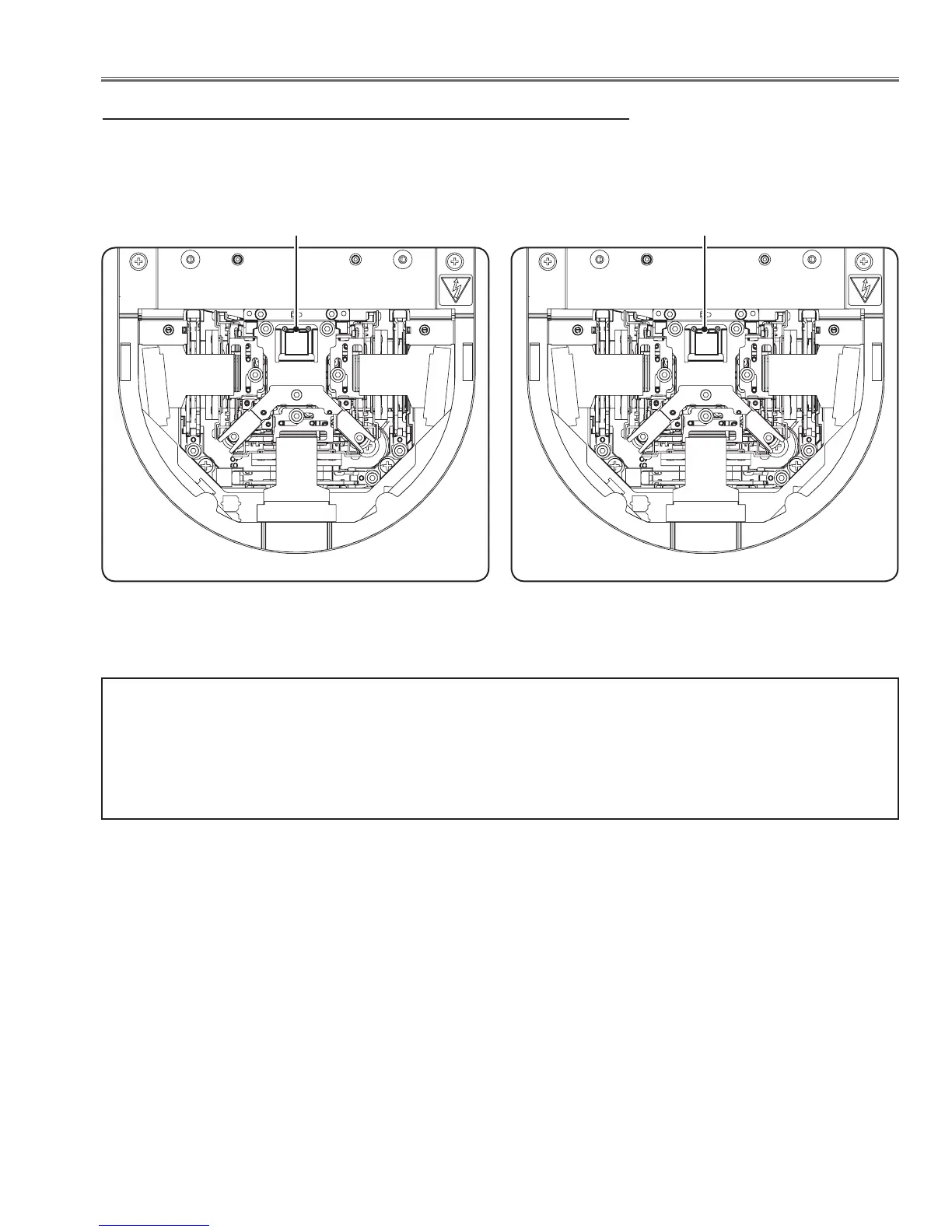

LCD Panel Type Check
There are 2 types of the LCD panel/prism assembly, named Type-R and Type-L. When replacing the LCD panel/
prism assy, use the same type of the one on the projector.
Confirm the "R" label or "L" label on top of the LCD panel/ prism assembly to identify the type.
Indication of Type-R
LCD Panel/Prism Assy (Type-R)
Indication of Type-L
LCD Panel/Prism Assy (Type-L)
R
L
IMPORTANT NOTICE on LCD panel/prism assy replacement
LCD panels used for this model cannot be replaced separately. Do not disassemble the LCD panel/prism assy.
These LCD panels are installed with precision at the factory. When replacing the LCD panel, should be replaced
whole of the LCD panels and prism assy at once.
When replacing LCD panel/prism assy, take the optical and electrical adjustments following to the chapter "Adjust-
ment".
To Next Page
