14

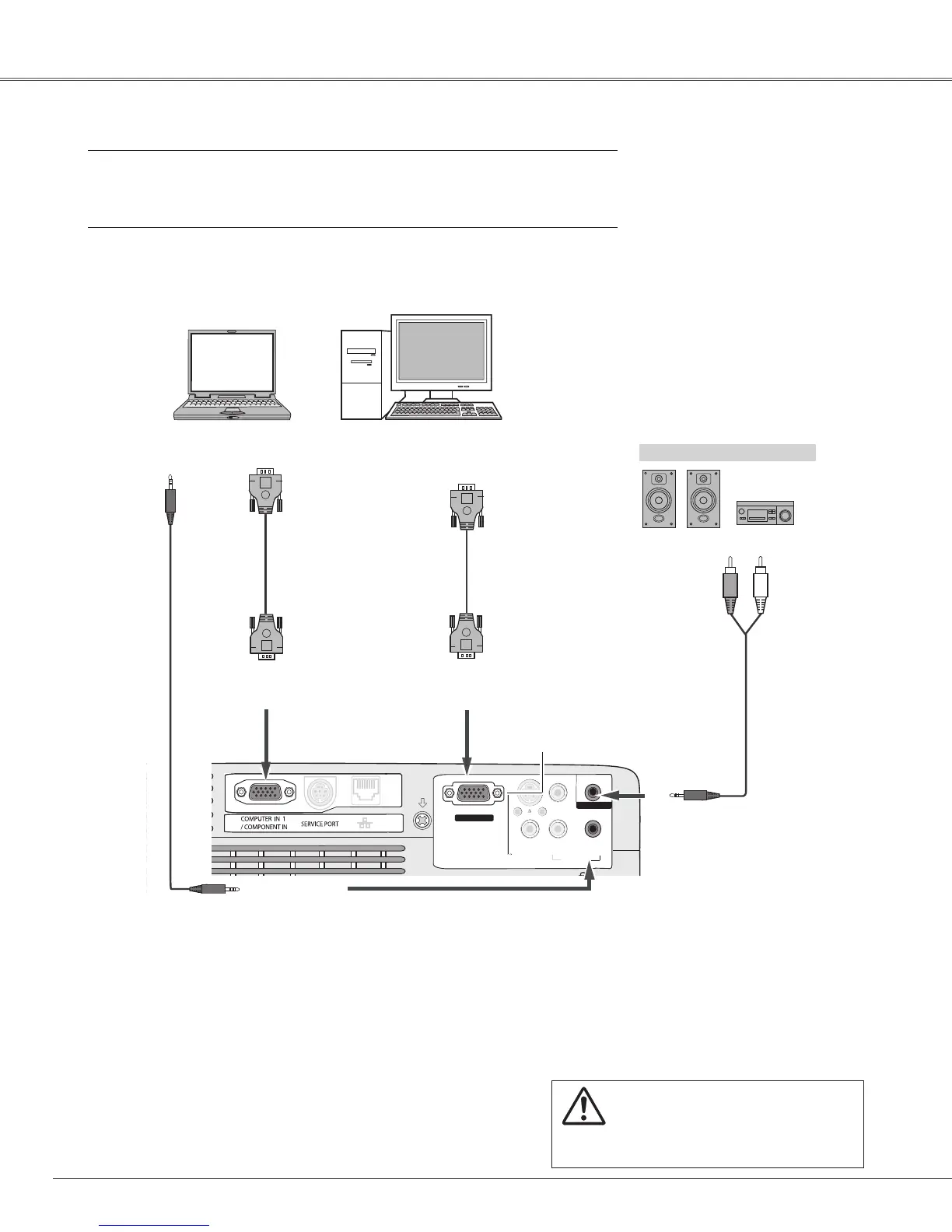

Connecting to a Computer
S-VIDEOIN
MONITOR OUT
COMPUTERIN2/
COMPUTER
/
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
SERVICE PORT
S-VIDEO IN
AUDIO IN
R
VIDEO IN
L
(MONO)
Cables used for connection
• VGA Cables (Mini D-sub 15 pin)*
• Audio Cables (Mini Plug: stereo)
(*One cable is supplied; other cables are not supplied with the projector.)
External Audio Equipment
VGA cable
Audio cable
(stereo)
Audio cable
(stereo)
Monitor Output
or
Monitor Input
Audio Output
COMPUTER/
COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 2/
MONITOR OUT
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting the cables.
Note:
• Input sound to the COMPUTER/COMPONENT AUDIO IN
terminal when using the COMPUTER IN 1/COMPONENT
IN and the COMPUTER IN 2/MONITOR OUT terminal as
input.
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
• When the cable is of the longer variety, it is advisable to
use the COMPUTER IN 1/COMPONENT IN and not the
COMPUTER IN 2 /MONITOR OUT.
Monitor Output
COMPUTER IN 1/
COMPONENT IN
VGA cable
This terminal is switchable. Set up the
terminal as either Computer input or
Monitor output (see page 44).
Installation
