15
S-VIDEO IN
MONITOR OUT
COMPUTER IN
2 /
COMPUTER
/
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT

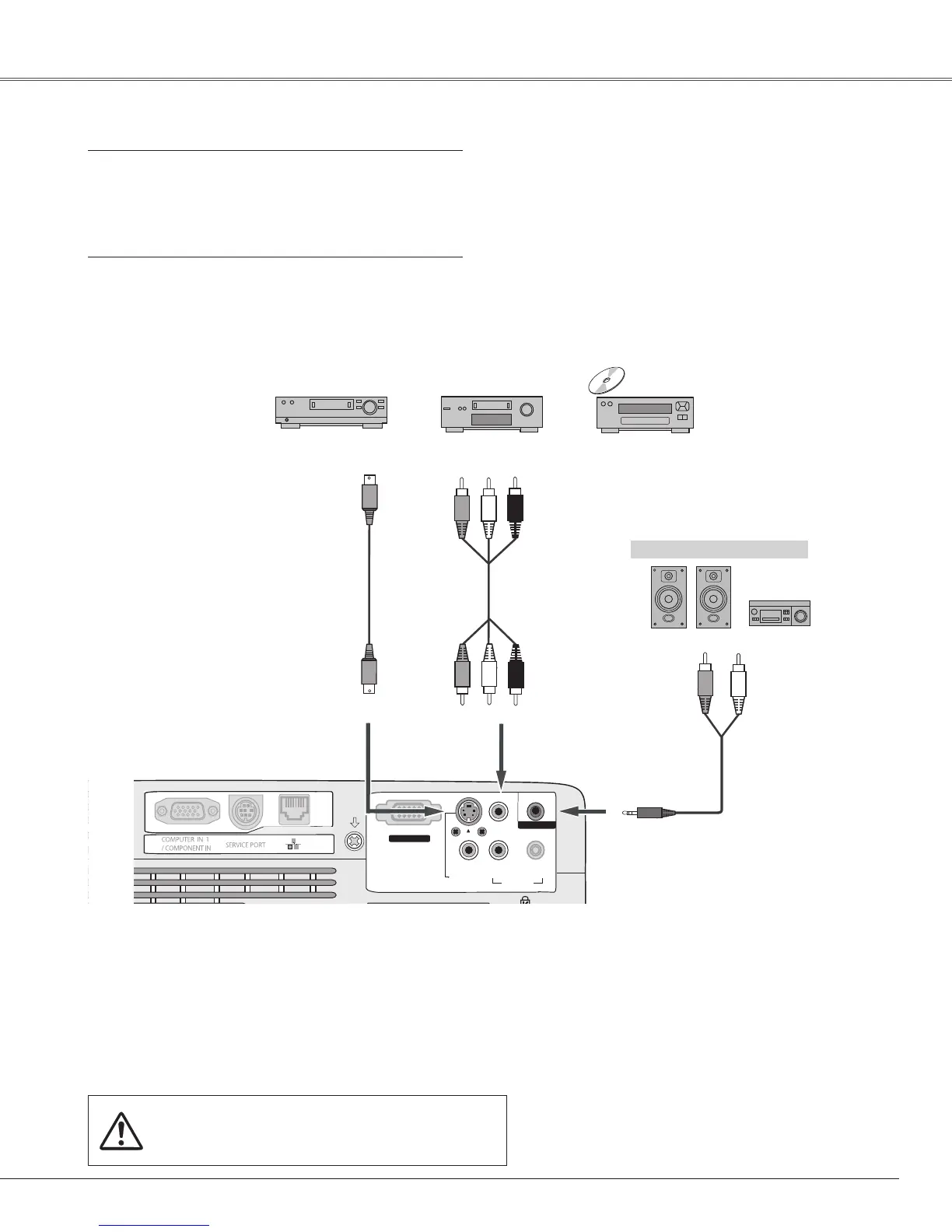

Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable (Mini Plug: stereo)
(Cables are not supplied with the projector.)
Note:
• When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
• The S-VIDEO jack connection overrides the VIDEO jack
connection when “Auto” is selected in the Input Menu
(p.34).
External Audio Equipment
Audio cable
(stereo)
VIDEO
S-VIDEO
S-Video cable Video and audio cable
Composite Video and Audio OutputS-Video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R) (L)
(R) (L) (Video)
(Video)
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting the cables.
Installation
To Next Page
