Sanyo PLC-WXE45 - Part Names and Functions; Front; Back; Bottom

8
Bottom
Back

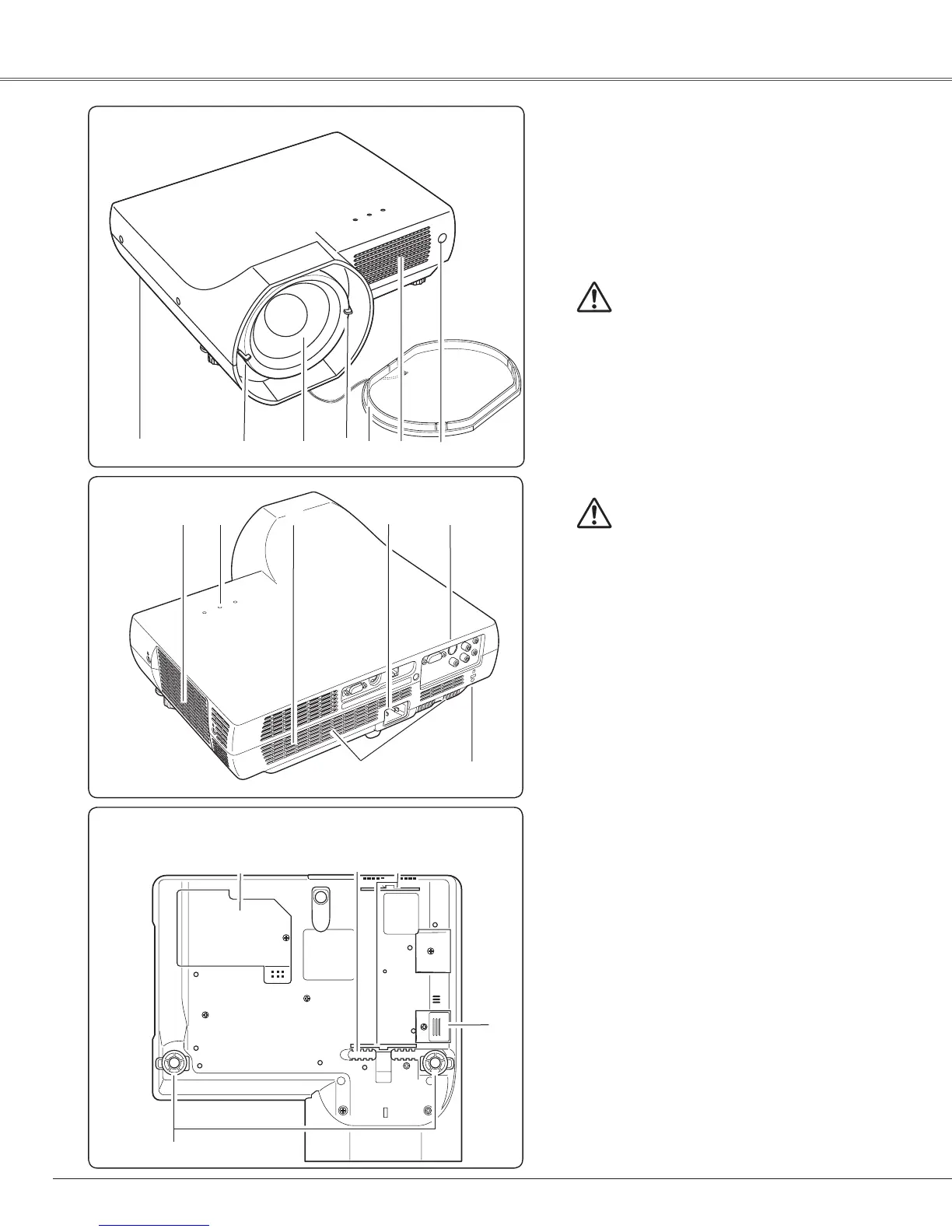

① Antitheft alarm settin� buttons
② Focus Lever
③ Projection Lens
④ Lens Cover
(See p. 56 for attachin�)
⑤
⑦
⑮
⑫ ⑬
⑩
⑪
CAUTION
Hot air is exhausted from the exhaust
vent.  Do not put heat-sensitive objects
nearthisside.
③
⑥
④
⑤
Front
⑨
⑧
⑭
CAUTION
Do not turn on the projector with putting
the lens cover on.  The light beam may
damage lens cover and result in fire
hazard.
Attach the lens cover while the projector
isnotinusetoavoidscratchingthelens
surface.
⑥ Infrared Remote Receiver
⑦ Indicators
⑧ Speaker
⑨ Air Intake Vent
⑩ Power Cord Connector
⑪ Terminals and Connectors
⑫ Lamp Cover
⑬ Air Filters
⑭ Battery Compartment
(For Antitheft alarm function)
⑮ Adjustable Feet
②
①
⑤ Exhaust Vents

 Kensin�ton Security Slot
ThisslotisforaKensingtonlockusedto
detertheftoftheprojector.
*Kensington is a registered trademark ofACCO
BrandsCorporation.
⑨
Part Names and Functions
