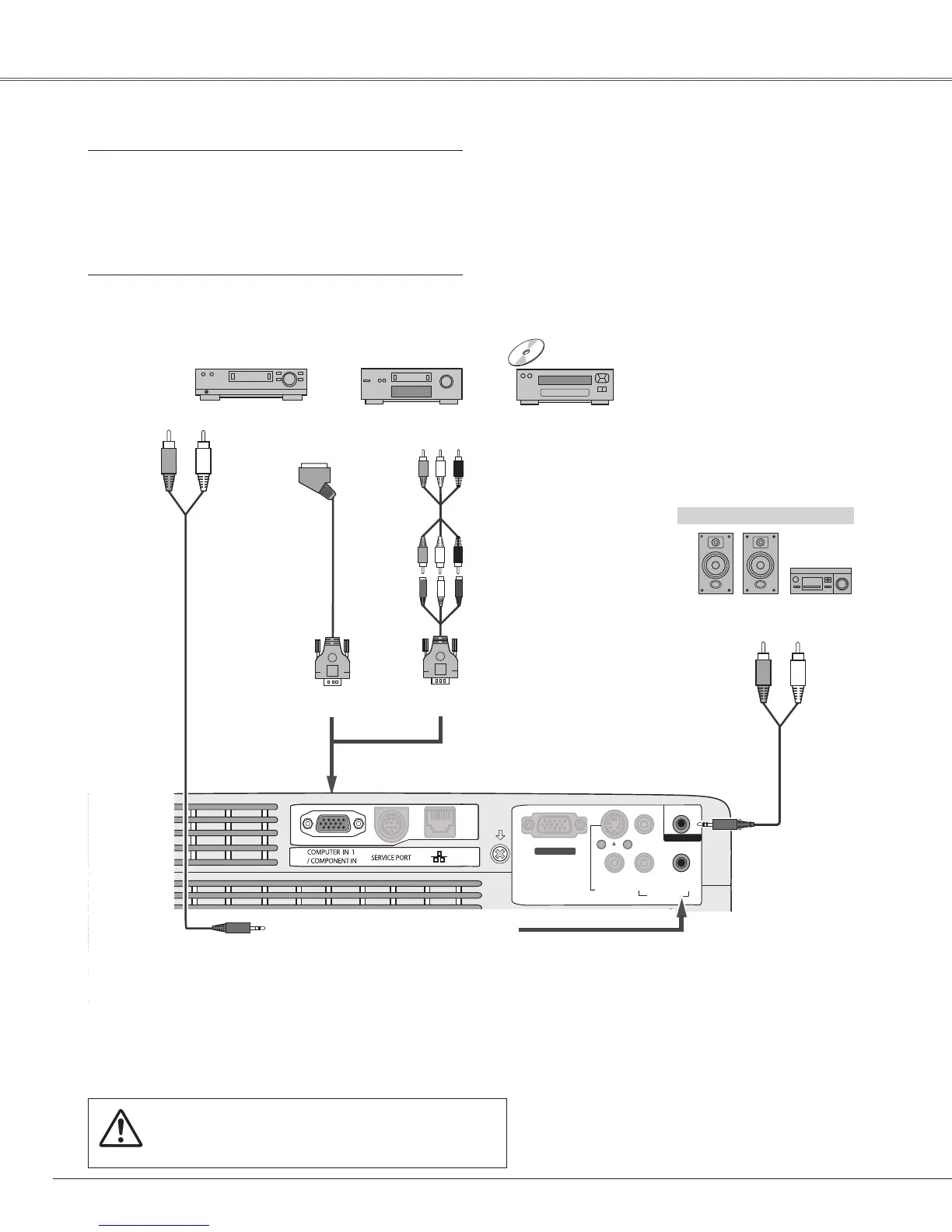

Connecting to Component Video Equipment
S-VIDEO IN
MONITOR OUT
COMPUTER IN
2 /
COMPUTER
/
COMPONENT
AUDIO IN
R
VIDEO IN
L
(MONO)
(VARIABLE)
AUDIO OUT
Cables used for connection
Audio Cables (Mini Plug: stereo)
• Scart-VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with the projector.)
Note:
When the AUDIO OUT is plugged-in, the projector’s
built-in speaker is not available.
External Audio Equipment
COMPUTER IN 1/COMPONENT IN
COMPUTER/
COMPONENT
AUDIO IN
Audio cable
(stereo)
Audio cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable
Component-VGA
cable
AUDIO OUT
(stereo)
Component
cable
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting the cables.
