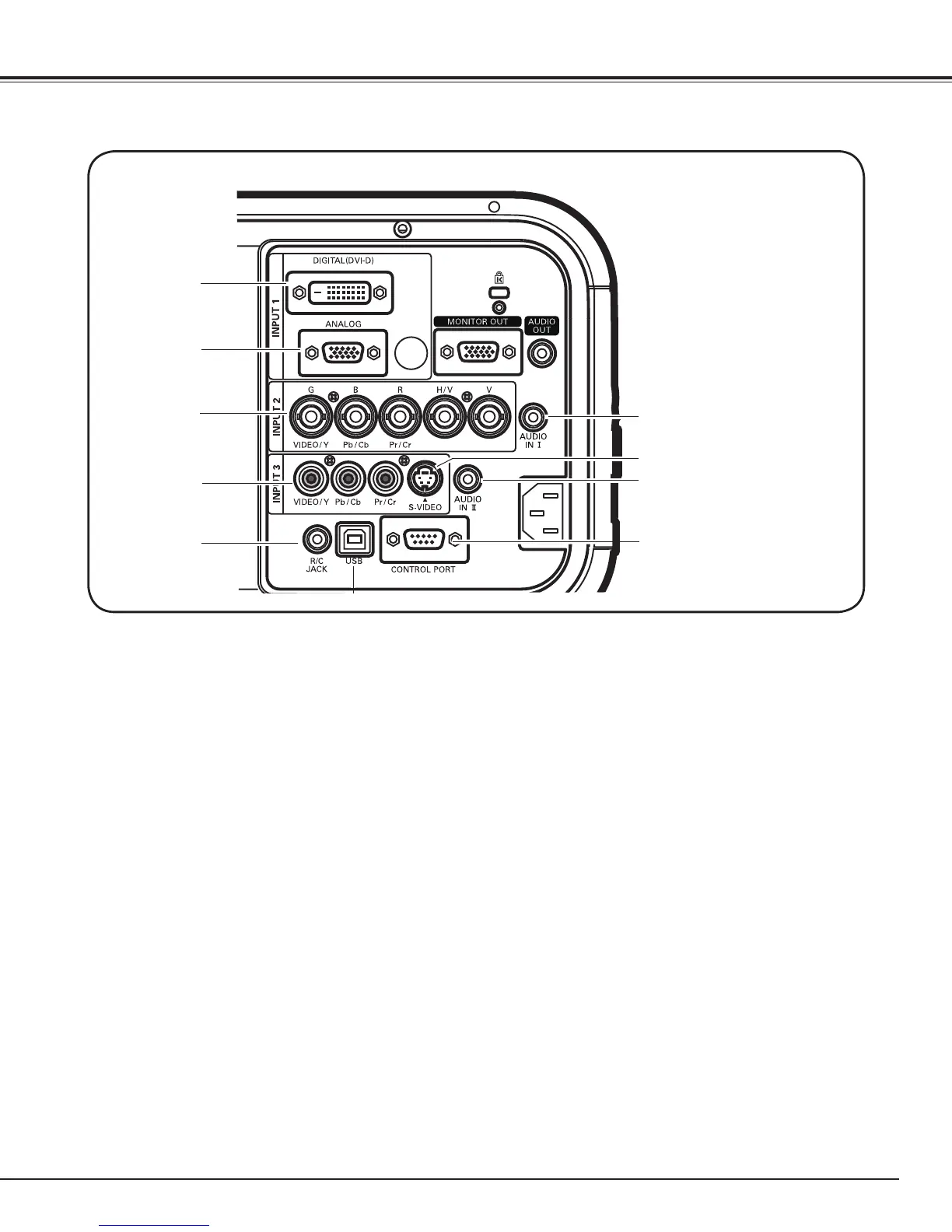

Rear Terminal
tR/C JACK
When using the wired remote control, connect the
wired remote control to this jack with a remote
control cable (not supplied).
yUSB CONNECTOR (Series B)
Use this connector when controlling a computer
with the remote control of the projector. Connect
the USB terminal of your computer to this
connector with the supplied USB cable (p.22).
iAUDIO IN II JACK
Connect the audio output (stereo) signal from a
computer or video equipment (p.24).
rVIDEO INPUT JACK
Connect the component or the composite video
output signal from video equipment to this jack
(p.23).
uCONTROL PORT CONNECTOR
When controlling the projector from a computer,
connect the computer to this connector with a
control cable (p.22).
qCOMPUTER INPUT TERMINAL (DIGITAL)
Connect the computer output digital signal to this
terminal. The HDTV (HDCP compatible) signal can
also be connected (pp.22-23).
wCOMPUTER INPUT TERMINAL (ANALOG)
Connect the computer (or RGB scart) output signal
to this terminal (pp.22-23).
e5 BNC INPUT JACKS
Connect the component or composite video output
signal from video equipment to VIDEO/Y, Pb/Cb,
and Pr/Cr jacks or connect the computer output
signal (5 BNC Type [Green, Blue, Red, Horiz. Sync,
and Vert. Sync.]) to G, B, R, H/V, and V jacks (pp.22-
23).
q
w
e
r
t
y
o
u
Part Names and Functions
i
!0
oS-VIDEO INPUT JACK
Connect the S-VIDEO output signal from video
equipment to this jack (p.23).
!0AUDIO IN I JACK
Connect the audio output (stereo) signal from a
computer or video equipment (p.24).

Sanyo PLC-XP200L Specifications

General

Vertical scan range	48 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Lamp type	NSH
Lamp power	330 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Bundled software	User Manual (CD ROM)
I/O ports	DVI-D (digital/HDCP) D-Sub15 (RGB/SCART-RGB) 5 x BNC (RGBHV/Composite/Y-Pb/Cb-Pr/Cr) 3 x RCA (Video/Y-Pb/Cb-Pr/Cr) Mini DIN 4 (S-Video) 3.5 mm Stereo Jack D-Sub15 D-Sub9 (RS232) 3.5 mm Stereo Jack (cable remote control) USB type B
Compatibility	UXGA SXGA SXGA+ WXGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	370 x 440 x 187 mm
Power requirements	100 - 240 V
Power consumption (standby)	24.5 W
Power consumption (typical)	499 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Placement	Ceiling

Weight and Dimensions

Weight	11400 g
Package weight	15900 g
