qON/STAND-BY button
Turn the projector on or off (pp.26–27).
eMENU button
Open or close the On-Screen Menu (p.28).
rPoint ed7 8 ( VOLUME + / – ) buttons
– Select an item or adjust the value in the On-
Screen Menu (p.28).
– Pan the image in Digital zoom + mode (p.44).
– Adjust the volume level (with Point 7 8 buttons)
(p.31).
!2WARNING TEMP. indicator
Blink red when the internal temperature of the
projector exceeds the operating range (pp.68, 75-
77 ).
t
SHUTTER button
Close and open up the built-in shutter. (p.30)
iPOWER indicator
– Light when in stand-by mode and during
operations.
– Blink in the Power management mode (p.56).

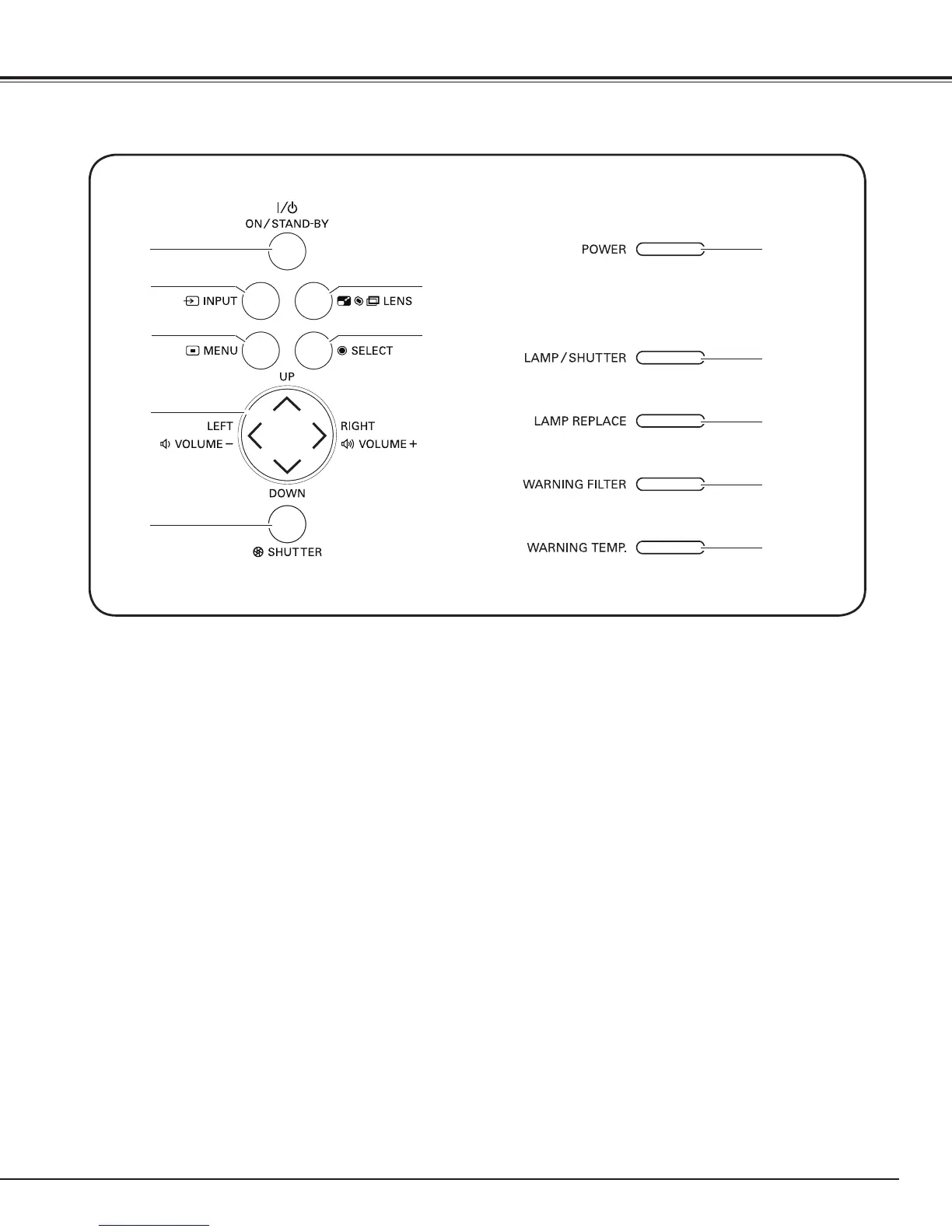

Side Control and Indicators
ySELECT button
– Execute the selected item (p.28).
– Expand or compress the image in the Digital
zoom mode (p.44).
oLAMP/
SHUTTER
indicator
Light red during operations.
Light blue when the shutter is closed (p.75).
!0LAMP REPLACE indicator
Light orange when the projection lamp reaches its
end of life (pp.64, 76).
!1WARNING FILTER indicator
– Blink slow when the filter is being scrolled (pp.
61, 75).
– Blink fast when the filter scroll is not working
properly or the filter cartridge is not installed
(pp.61, 77).
– Light orange when the clogging of the filter is
detected or the filter counter reaches a time set
in the timer setting, urging immediate filter/ filter
cartridge replacement (pp.60, 61, 77).
q
w
e
t
y
r
Side Control Indicators (on the top panel)
u
i
o
!0
!2
Part Names and Functions
!1
wINPUT button
Select an input source (pp.35–37).
uLENS button
Enter the focus, zoom, and lens shift adjustment
mode (p.30).
